SPECIFICATIONS

After-sale Service: Online Technical Support,Onsite Installation,Free Spare Parts

Application: Construction Site

Body Colour: Red, Silver Grey, Orange, etc

Brand Name: shanghaipower

Delivery Period: Within 07 Days

Design Style: Modern

Handrails: includes handrails

Height adjustment: Adjustable Height

Lifting Height: above 10m,200m

Lifting Speed: 9-11m/Min

Load Capacity: 800 kg

Locking mechanism: Manual Lock

Material: Steel ,Aluminum Alloy,Galvanized Steel

Material Choice: Q235 Steel or Aluminum Alloy

Model Number: ZLP800

Place of Origin: Shanghai, China

Power: 1.8kw

Project Solution Capability: graphic design,3D model design,total solution for projects

Surface: Steel Galvanized Aluminum

Surface Treatmen: Hot-DIP Galvanized, Painting

Surface Treatment: Hot-Dip Galvanized

Type: work platform

Voltage: 220 V,240 V,380 V,440 V,3 phase 380v 50hz,other,220~440V, 3-Phase or 1-Pha

Warranty: 1 Year

Working Cage: 7.5m(2+2+2+1.5 2.5+2.5+2.5 )

rated load(kg): 800 kg

safety lock: LS30

suspension mechanism: Fixed,SPECIAL MADE

Product Overview

ZLP800suspended platform

This suspended platform is primarily used for exterior wall decoration and renovation of buildings, among other high-altitude operations. Its robust steel structure and anti-slip platform design ensure stability and safety for workers at height. The platform is equipped with an advanced automatic lifting system that is easy to operate and can easily handle different heights of work requirements. Additionally, it features protective nets and safety harness hooks, further ensuring the safety of the workers.Using this product for high-altitude work is not only safer but also more labor-saving, making it popular among construction companies. It not only improves work efficiency but also reduces accidents caused by human error, making it an indispensable important tool in modern construction.

ZLP800 suspended platform

PRODUCT SPECIFICATIONS

(Custom configurations available upon request.)

Parameters of ZLP800 Suspended Platform
Type	Bolt Type
1. Rated Load	800kg
2. Lifting speed	9.3m/min
3. Lifting height	50m
4. Hoist	LTD8.0
4.1 Power	1.8kw, 2 Pcs
4.2 Voltage	380V 50Hz 3PH
5. Safety Lock	LSG30, use 9.1mm Steel Rope
6. Electric Cabinet	380V 50Hz 3PH
7. Platform Sise	L=7.5m(2.+2+2+1.5), W=0.69, H=1.18m
8. Steel Wire Rope	4pcs, 100m/pcs, D=9.1mm
9. Electric Cable	1pcs, 100m/pcs, 2.5mm2
10. Safety Rope	1pcs, 100m/pcs
11. Gross Weight (without Counterweight)	980kg
12. Counter Weight (Optional)	Cement, 1000kg, 40pcs, 25kg/pcs
13. Quantity of one 20" Container	13 sets

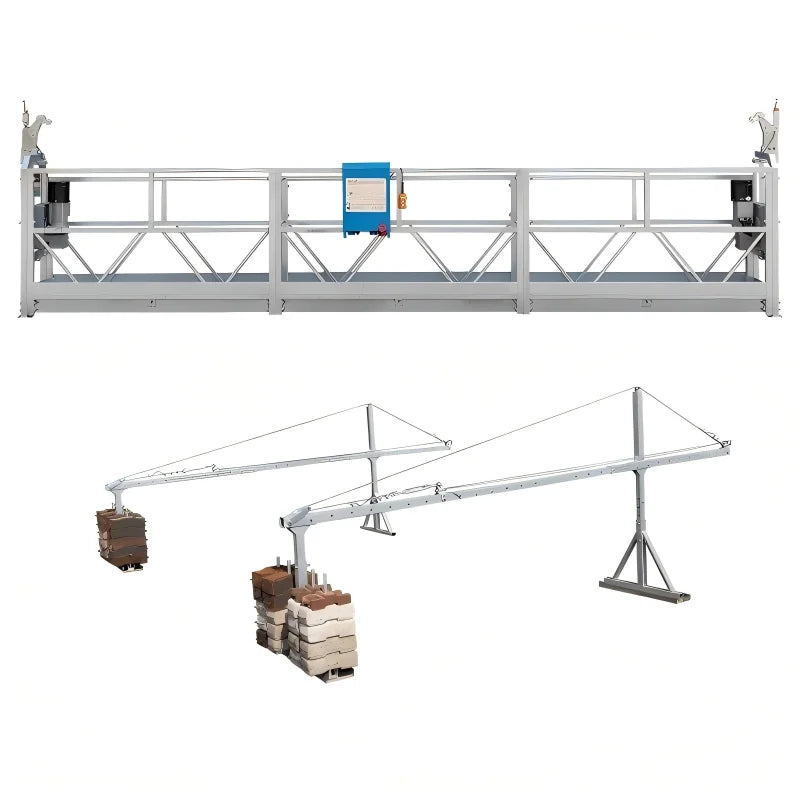

PRODUCT CONFIGURATION

Electric Cabinet

Surface: Cold Galvanized With manual Switch

Voltage: 380V 50Hz 3PH

On Electric Control Cabinet, there are 4 buttons and a 220V 50Hz outlet for necessary use.
( Universal Switch, Power Indicator, Start Button and the Emergency Stop Button are in the door board of the cabinet. )

Safety Lock

Model: LSG30
Quantity: 2 pcs
Locking Rope Angle: 3°~8°
Allow impulsive force: 30KN
Steel Wire Diameter: 8.3mm
Weight: 5kgx2 Safety Lock is the protection equipment. When the platform goes acclivitous, or ropes are broken off and falling,the
safety locks will lock the wire ropes automatically and quickly to ensure the safety of the operator from falling and
inclining.

Hoist

Model : LTD6.3
Power : 1.5kw*21.8kw*22.2kw*2
Voltage : 3 Phase 380V 50Hz
Quantity : 2 pcs
Lifting Speed: 9.3±0.5m/min
Lifting Force: 8.3KN
Motor Brand: Tianjin YONGHENG
Rotational Speed: 1420rpm

Steel Rope

Length: 100 m/pc, 4pcs
Weight: 30 kg x 4
Diameter: 9.1 mm
Nylon Safety Rope: 1 Pc=100 m
Electric Cable: 1 Pc=100 m, 1.5m-2.5mm2
Counter Weight (Optional): Cement or Cast Iron

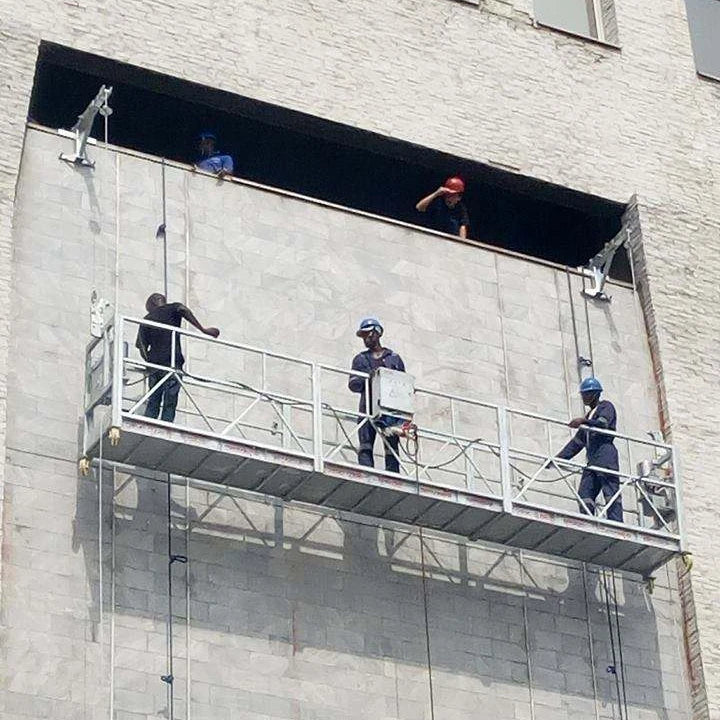

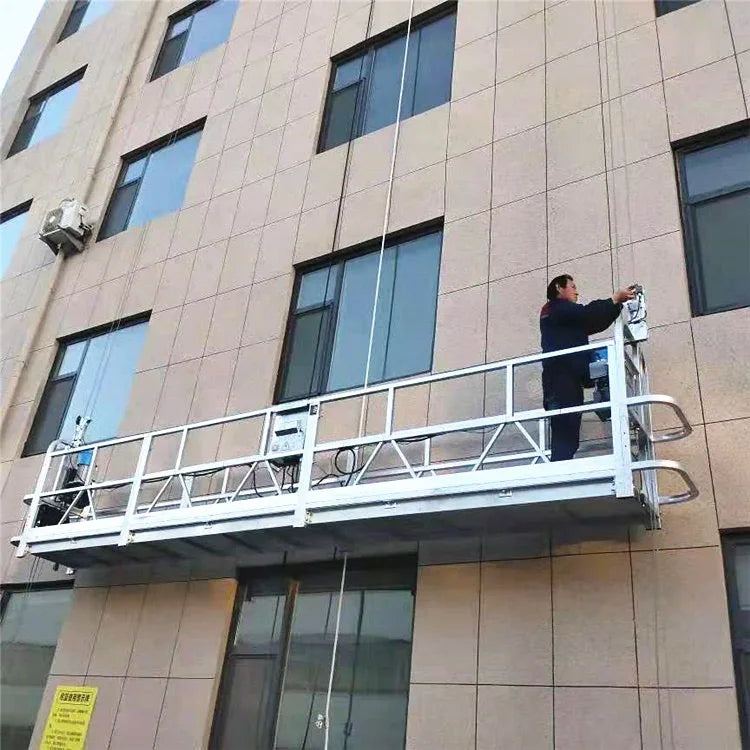

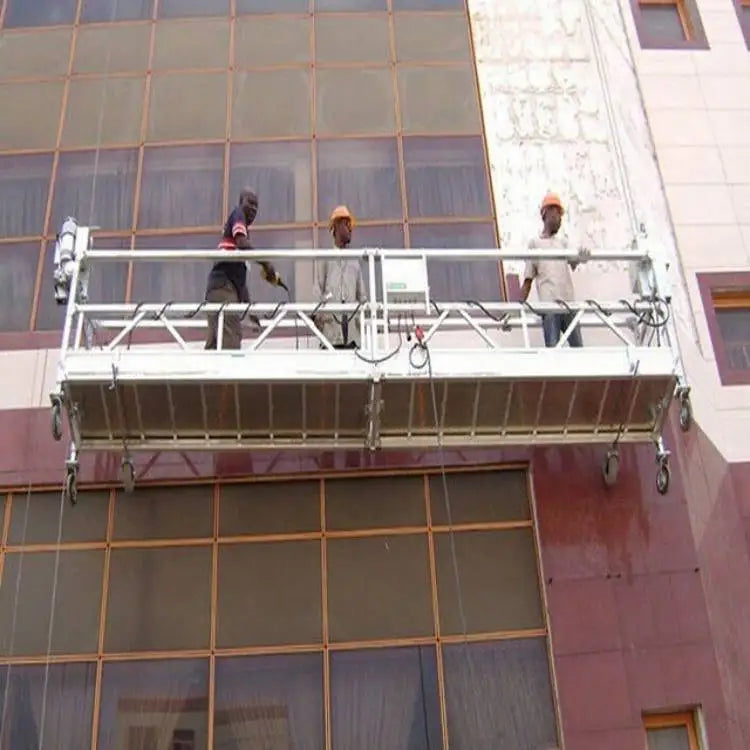

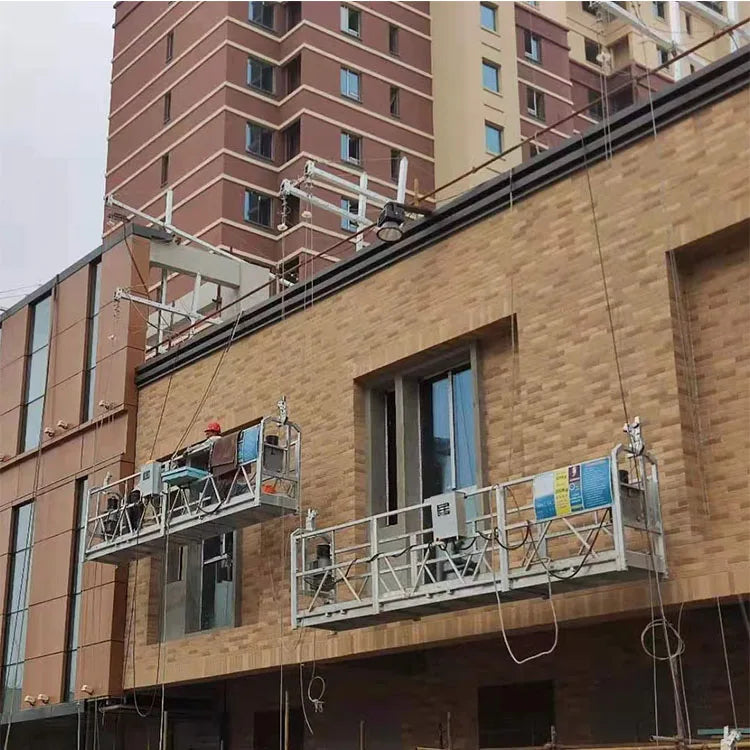

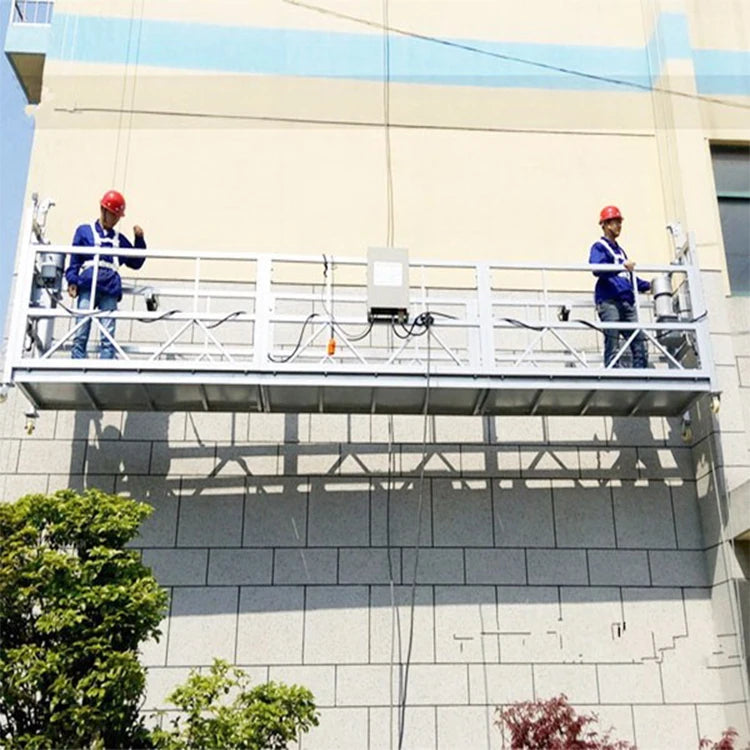

Successful Project

Our suspended platforms have been successfully exported to over 20 countries, earning trusted reputation and positive feedback from global clients.We provide customized site access solutions to ensure safe, efficient, and reliable high-rise operations. Whether for building maintenance, façade cleaning, or other aerial work, we deliver industry-leading equipment and technical support.

FAQ

1. How much is this suspended platform?
Price will offer you immediately after telling us your requirements of model, platform length,loading

capacity, material, painting coat or galvanzied, voltage,with counterweight or not and price terms.

2. Features for Steel Platform with Plastic coating finish?
Color plastic spraying on platform surface with comptitive price compared with the aluminum alloy and

hot dip gavalnized surface.----

Hot dip galvanized steel platform with good anti corrosion and Lower price than aluminum alloy

platform.

3. What quality certificate you own for your products?
Our products own CCC, CE, EAC and ISO9001 certificate.

4. What payment terms do you accept?
T/T, L/C, Alibaba trade.

5. Product quality assurance and after-sales service?
One Year Quality Warranty And Life-time Technical Support. If any parts get damaged because of

quality within 12 months after shipping date. We will send new parts to replace right away.

6. Can you make suspended platform with our brand?
Yes.

7. How you arrange shipment?
By Sea/By Train/By Air or By Express,15-20days Against Deposit.
