SPECIFICATIONS

After-sale Service: Online Technical Support,Onsite Installation,Free Spare Parts,Online technical support, Onsite Installation, Return and Replace

Application: Construction Site

Brand Name: shanghaipower

Certificate: CE, CCC, ISO9001

Design Style: Modern

Handrails: includes handrails

Height adjustment: Adjustable Height

Length: 2.5m+2.5m(2m+2m+1m)

Lifting Height: above 10m

Lifting speed: 8.8-9.8m/min

Load Capacity: 500kg

Locking mechanism: Manual Lock

Material: Steel ,Aluminum Alloy,Galvanized Steel

Model Number: ZLP500

Place of Origin: Shanghai China

Platform Size: 5*0.76*1.42M

Power: 1.5kw*2

Project Solution Capability: graphic design,3D model design,total solution for projects

Rated load: 500kg

Surface Treatment: Hot-Dip Galvanized

Surface treatment: Powder Painting

Type: work platform,Suspended platform

Voltage: 220 V,240 V,380 V,440 V,3 phase 380v 50hz,other

Warranty: 1 Year

materical: Q235 Steel

rated load(kg): 500kg

safety lock: LS30

suspension mechanism: SPECIAL MADE,Fixed

Product Overview

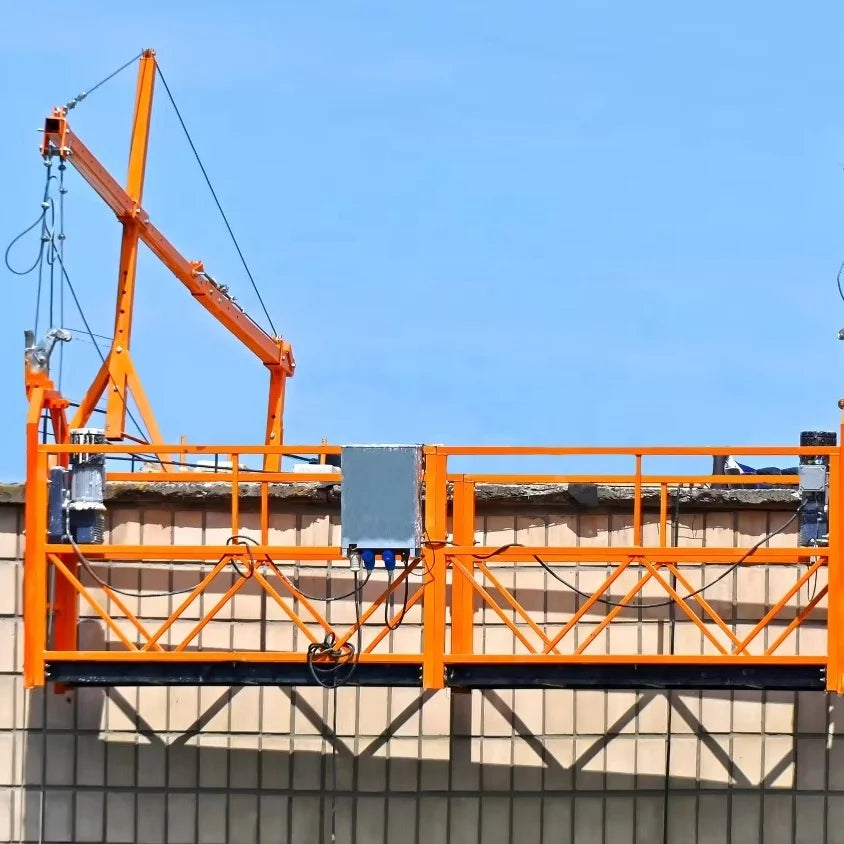

ZLP500suspended platform

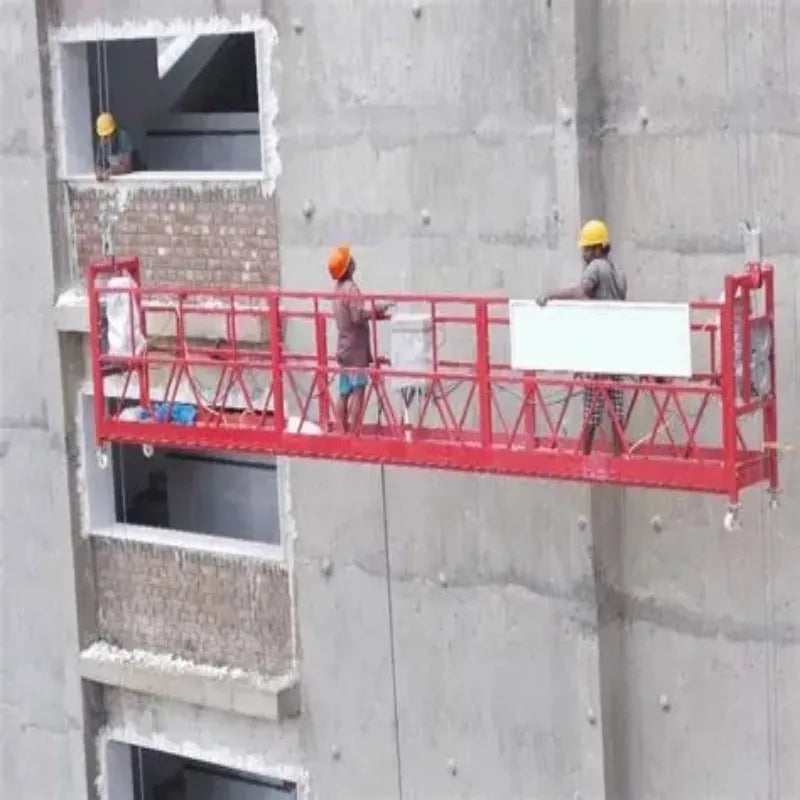

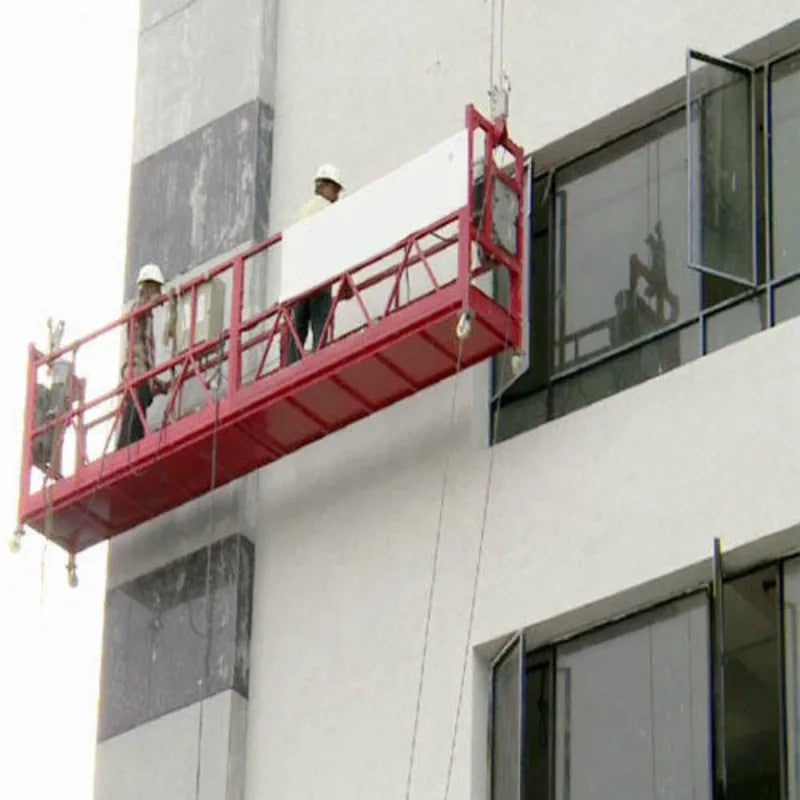

This suspended platform is primarily used for exterior wall decoration and renovation of buildings, among other high-altitude operations. Its robust steel structure and anti-slip platform design ensure stability and safety for workers at height. The platform is equipped with an advanced automatic lifting system that is easy to operate and can easily handle different heights of work requirements. Additionally, it features protective nets and safety harness hooks, further ensuring the safety of the workers.Using this product for high-altitude work is not only safer but also more labor-saving, making it popular among construction companies. It not only improves work efficiency but also reduces accidents caused by human error, making it an indispensable important tool in modern construction.

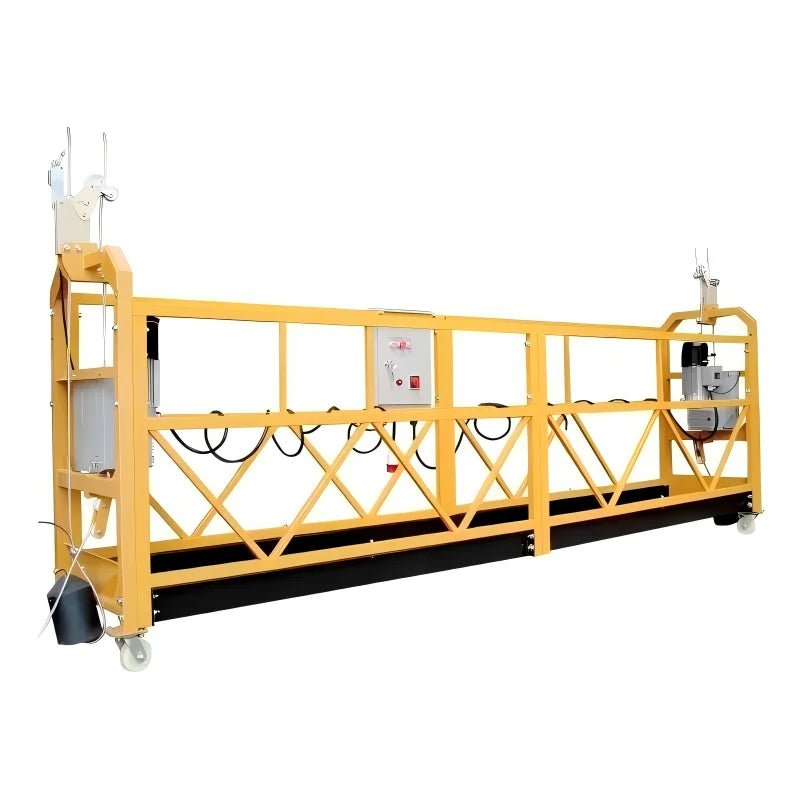

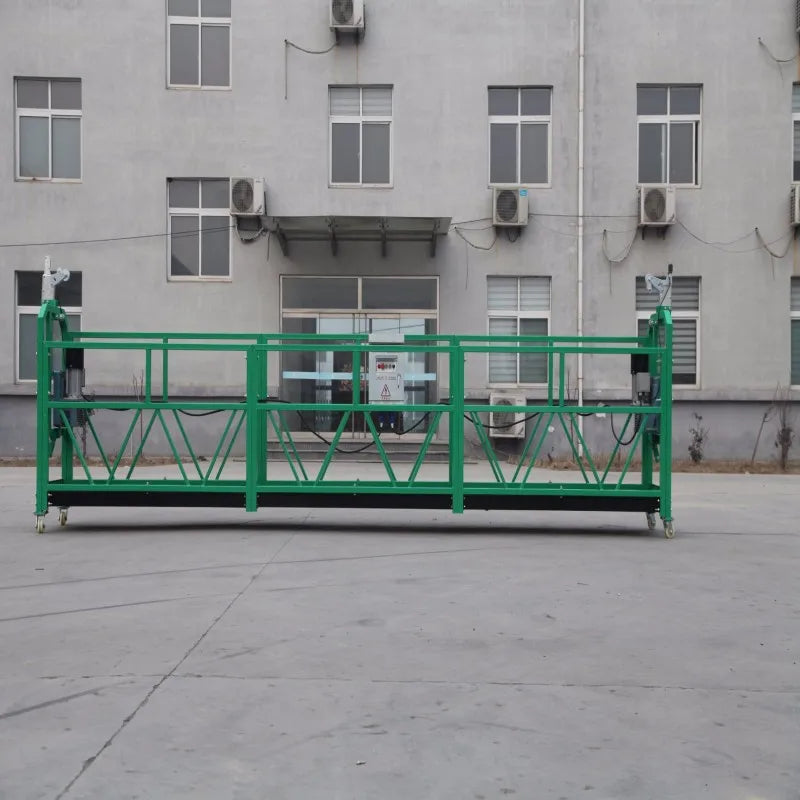

ZLP500 suspended platform

PRODUCT SPECIFICATIONS

(Custom configurations available upon request.)

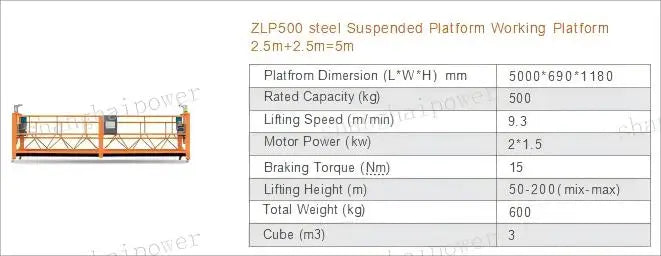

Parameters of Painting ZLP500 Suspended Platform
1. Rated Load	500KG
2. Lifting speed	9.3m/min
3. Lifting height	50m
4. Hoist	LTD5.0
4.1 Voltage-3 Phase	380V(415V/220V)
4.2 Frequency	50Hz/60Hz
4.3 Power	1.5kwx2
5. Safety Lock	LSG20
6. Electric Control  Cabinet Components	Schneider or CHNT
7. Platform Sise (LxWxH)	(2.5+2.5)x0.69x1.18m
8. Steel Wire Rope	4pcsx100m     4x31SW+FC     D=8.3mm
9. Special Cable	(3x2.0+2x1.0mm2) 100m
10. Suspended Jibs	340kg
11.Lifting Parts Weight	410kg(Steel)       290kg(Aluminum)
12.Counter Weight	750kg
13.Qty of 20" Container	10 sets

PRODUCT CONFIGURATION

Successful Project

Our suspended platforms have been successfully exported to over 20 countries, earning trusted reputation and positive feedback from global clients.We provide customized site access solutions to ensure safe, efficient, and reliable high-rise operations.Whether for building maintenance, façade cleaning, or other aerial work, we deliver industry-leading equipment and technical support.

FAQ

1. How much is this suspended platform?
Price will offer you immediately after telling us your requirements of model, platform length,loading

capacity, material, painting coat or galvanzied, voltage,with counterweight or not and price terms.

2. Features for Steel Platform with Plastic coating finish?
Color plastic spraying on platform surface with comptitive price compared with the aluminum alloy and

hot dip gavalnized surface.----

Hot dip galvanized steel platform with good anti corrosion and Lower price than aluminum alloy

platform.

3. What quality certificate you own for your products?
Our products own CCC, CE, EAC and ISO9001 certificate.

4. What payment terms do you accept?
T/T, L/C, Alibaba trade.

5. Product quality assurance and after-sales service?
One Year Quality Warranty And Life-time Technical Support. If any parts get damaged because of

quality within 12 months after shipping date. We will send new parts to replace right away.

6. Can you make suspended platform with our brand?
Yes.

7. How you arrange shipment?
By Sea/By Train/By Air or By Express,15-20days Against Deposit.
