SPECIFICATIONS

After-sale Service: Online Technical Support,Onsite Installation,Free Spare Parts

Application: Construction Site,Building Construction

Brand Name: shanghaipower

Certificate: CE ISO CCC

Design Style: Modern

Handrails: includes handrails

Height adjustment: Adjustable Height

Lifting Height: above 10m

Lifting height: 100m

Lifting speed: 9~11m/min

Load Capacity: 800 kg

Load capacity: 800kg

Locking mechanism: Manual Lock

Material: Steel ,Aluminum Alloy,Galvanized Steel,Steel/Aluminium alloy/Steel with galvanized

Model Number: zlp800

Place of Origin: Shanghai China

Platform Length: 7.5 Meter

Power: 1.8kw

Project Solution Capability: graphic design,3D model design,total solution for projects

Surface Treatment: Hot-Dip Galvanized

Type: work platform

Voltage: 220 V,240 V,380 V,440 V,3 phase 380v 50hz,other,380V 50Hz 3PH

Warranty: 1 Year

color: Silver / Red / Yellow,as your requirement

rated load(kg): 800 kg

safety lock: LS30

suspension mechanism: SPECIAL MADE,Fixed

Product Overview

Suspended platform is mainly composed by suspension mechanism, hoist, safety lock, electric control box, working platform.Its structure is reasonable and easy to operate.It can be assembled and disassembly accroding to the actual Demand.The cleaning platform is mainly used for refurbishment, decoration, cleaning and maintenance of high construction building.

Why Suspended Platform Cradles?

1. The most stable and secure while moving and working. 2. Easy to disassemble, assemble operate and maintain. 3. With a wide range of accessories Suspended Platform cradle can be adapted, as standard to many

site configurations. 4. Composed of 70% aluminum, they are both lightweight and corrosion resistant. 5. Easy to transport where each platform is packed in its own box. 6. Works and fits tanks, bridge piers or towers. 7. Anti-slipping aluminum base platform. 8. Cradle is provided with soft non-marking facade rollers, to protect facade from any damages during

operation manual lowering in case of power or winch failure. 9. Has electrical of IP 54 protection. 10. Cradle is equipped with anti-tilt and anti-fall arrest safety brake devices. 11. Castor wheels for transportatio.

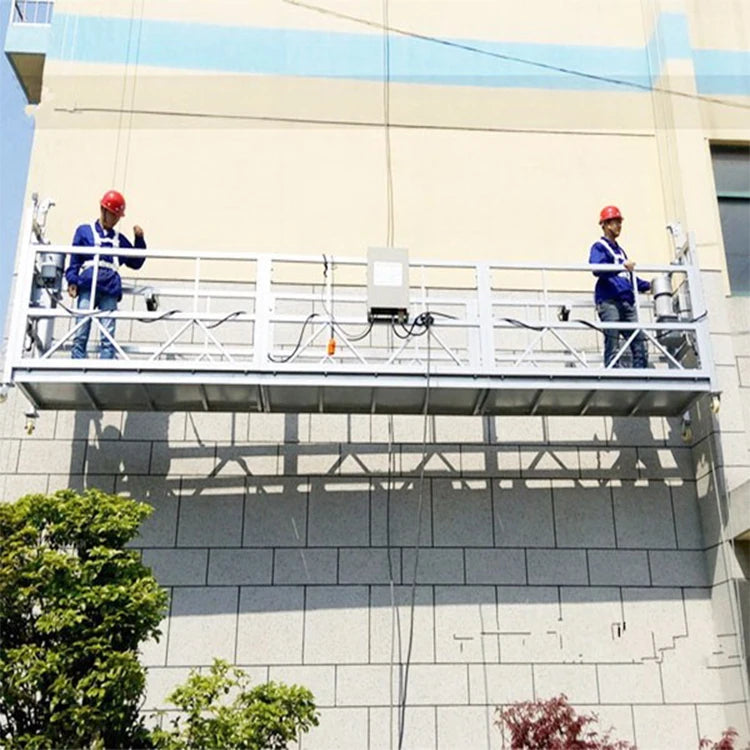

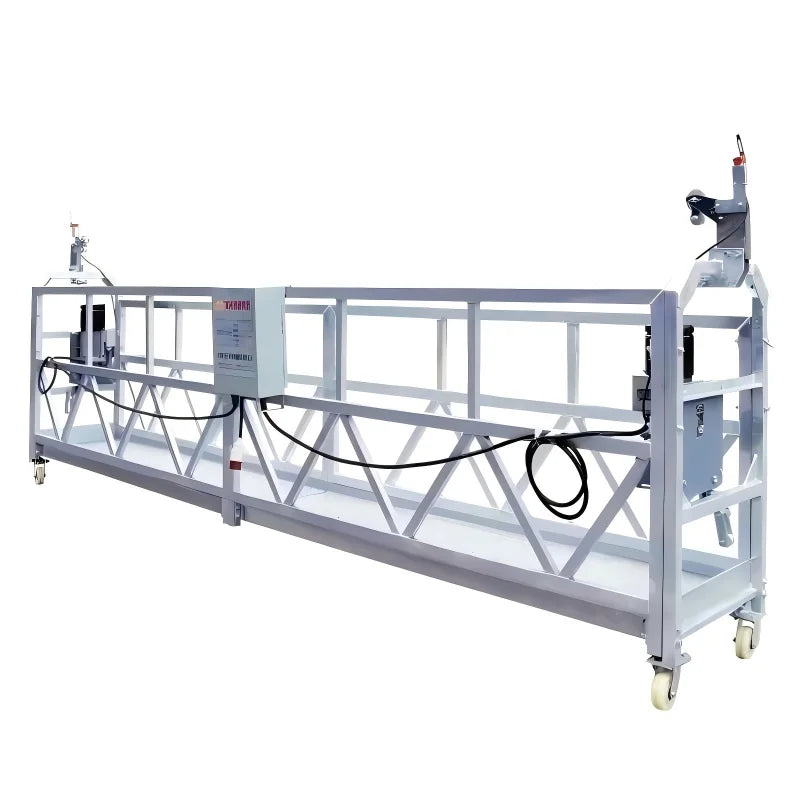

ZLP800 suspended platform

PRODUCT SPECIFICATIONS

(Custom configurations available upon request.)

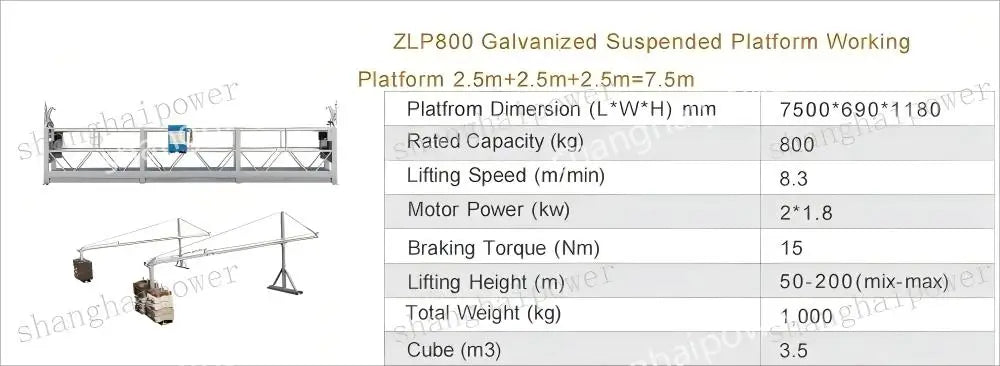

Parameters of ZLP800 Suspended Platform
Type	Bolt Type
1. Rated Load	800kg
2. Lifting speed	9.3m/min
3. Lifting height	50m
4. Hoist	LTD8.0
4.1 Power	1.8kw, 2 Pcs
4.2 Voltage	380V 50Hz 3PH
5. Safety Lock	LSG30, use 9.1mm Steel Rope
6. Electric Cabinet	380V 50Hz 3PH
7. Platform Sise	L=7.5m(2.+2+2+1.5), W=0.69, H=1.18m
8. Steel Wire Rope	4pcs, 100m/pcs, D=9.1mm
9. Electric Cable	1pcs, 100m/pcs, 2.5mm2
10. Safety Rope	1pcs, 100m/pcs
11. Gross Weight (without Counterweight)	980kg
12. Counter Weight (Optional)	Cement, 1000kg, 40pcs, 25kg/pcs
13. Quantity of one 20" Container	13 sets

PRODUCT CONFIGURATION

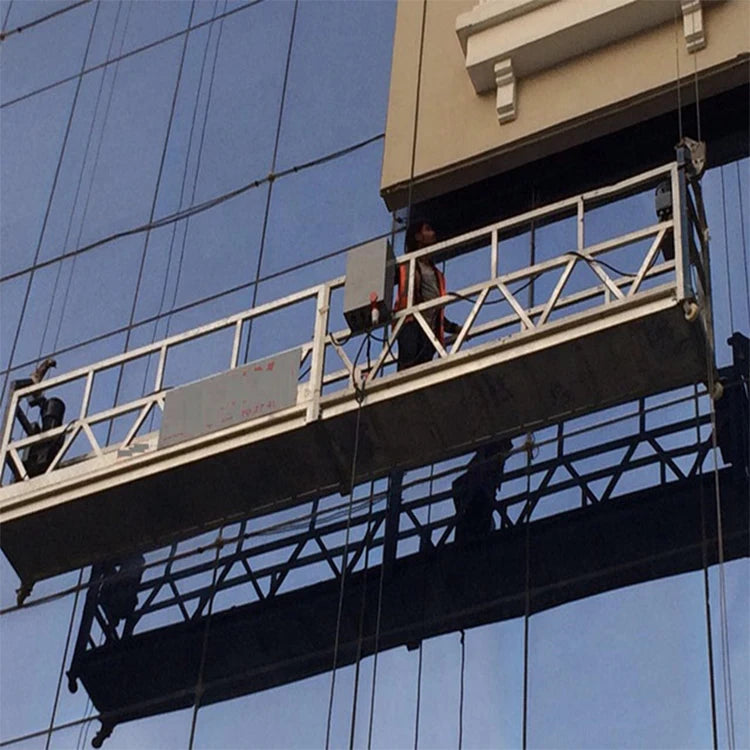

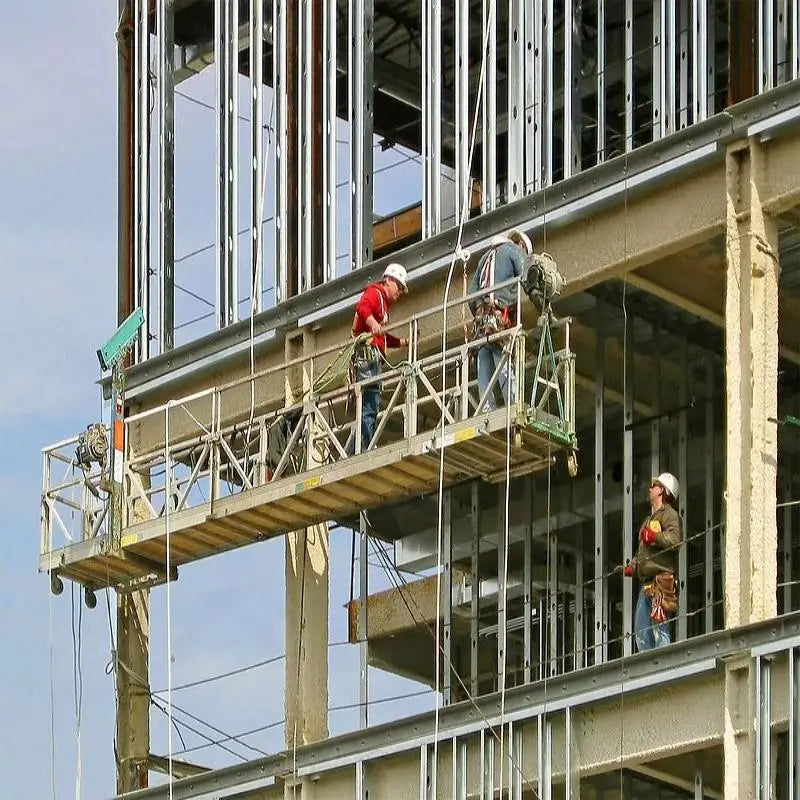

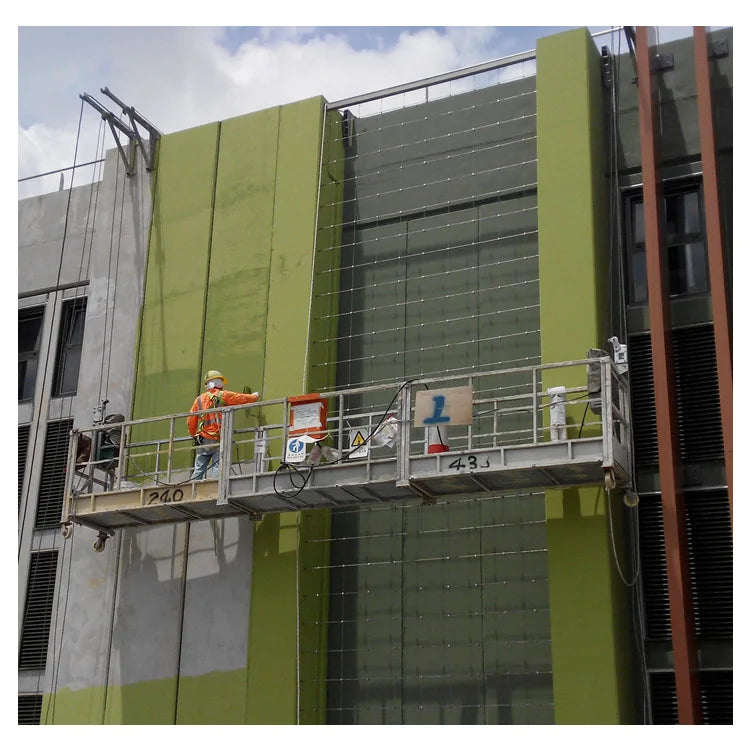

Successful Project

Our suspended platforms have been successfully exported to over 20 countries, earning trusted reputation and positive feedback from global clients.We provide customized site access solutions to ensure safe, efficient, and reliable high-rise operations. Whether for building maintenance, façade cleaning, or other aerial work, we deliver industry-leading equipment and technical support.

FAQ

1. How much is this suspended platform?
Price will offer you immediately after telling us your requirements of model, platform length,loading

capacity, material, painting coat or galvanzied, voltage,with counterweight or not and price terms.

2. Features for Steel Platform with Plastic coating finish?
Color plastic spraying on platform surface with comptitive price compared with the aluminum alloy and

hot dip gavalnized surface.----

Hot dip galvanized steel platform with good anti corrosion and Lower price than aluminum alloy

platform.

3. What quality certificate you own for your products?
Our products own CCC, CE, EAC and ISO9001 certificate.

4. What payment terms do you accept?
T/T, L/C, Alibaba trade.

5. Product quality assurance and after-sales service?
One Year Quality Warranty And Life-time Technical Support. If any parts get damaged because of

quality within 12 months after shipping date. We will send new parts to replace right away.

6. Can you make suspended platform with our brand?
Yes.

7. How you arrange shipment?
By Sea/By Train/By Air or By Express,15-20days Against Deposit.
