SPECIFICATIONS

Air compressor parts: Safety

Applicable Industries: Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company,Other,Oxygen concentrator,oil less air compressor for oxygen concentrator,air oxygen pump

Condition: New

Drive method: Belt Driven

Lubrication Style: Semi-synthetic

MOQ: 1 Set

Marketing Type: New Product 2020

Motor power: 11kw; 15kw

Noise: Lower Noise

Power Source: 50-60Hz (Optional: AC 110V

Pressure: 3.0mpa/30bars/435psi

Showroom Location: None

Tank: 150L

brand name: ShangAir

configuration: Portable

core components: Engine,Motor

dimension(l*w*h): 1900*900*1250mm

gas type: Air

lubrication style: Oil-Free

machinery test report: Provided

model number: CWM-1.2/30-YQ,CWM-1.2/30,CWM-1.2/30-YQH,CWM-1.2/30H

mute: Yes

place of origin: China

power source: AC Power

type: Piston

video outgoing-inspection: Provided

voltage: 220v/110v/380v (can be customized)

warranty: 1 Year

working pressure: 30 bar

Product Description

Specifications

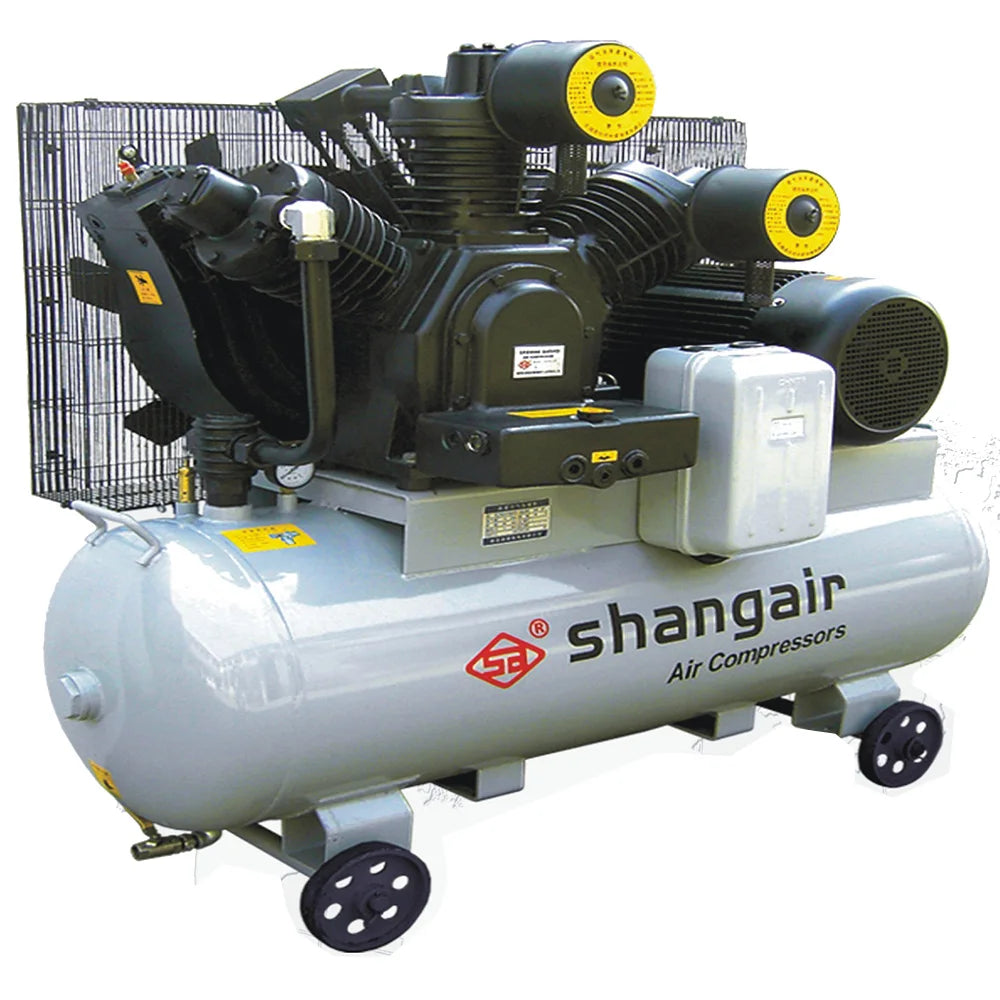

Model	CWM-1.2/30-YQH
Motor Power	15 KW
Air Discharge	1.2 m3/min
Discharge Pressure	3.0 Mpa
Running Speed	730 r.p.m
Package Size	1900×900×1250 mm
Weight	640 KGS
