SPECIFICATIONS

After-sale Service: Online Technical Support

Application: Construction,Supporting Scaffolding System

Brand Name: Xiangxing,Xiangxing

Certificate: CE/ISO

Color: Silver

Design Style: Industrial

Material: Aluminum Alloy,Steel

Model Number: HX-01

Place of Origin: Hebei, China,Hebei, China

Product name: ring lock scaffolding accessories parts ringlock scaffolding vertical

Project Solution Capability: graphic design

Size: Customer's Request

Surface treatment: Hot Dip Galvanized

Type: Scaffolding Ringlock Accessories

Warranty: 1 Year

Product Description

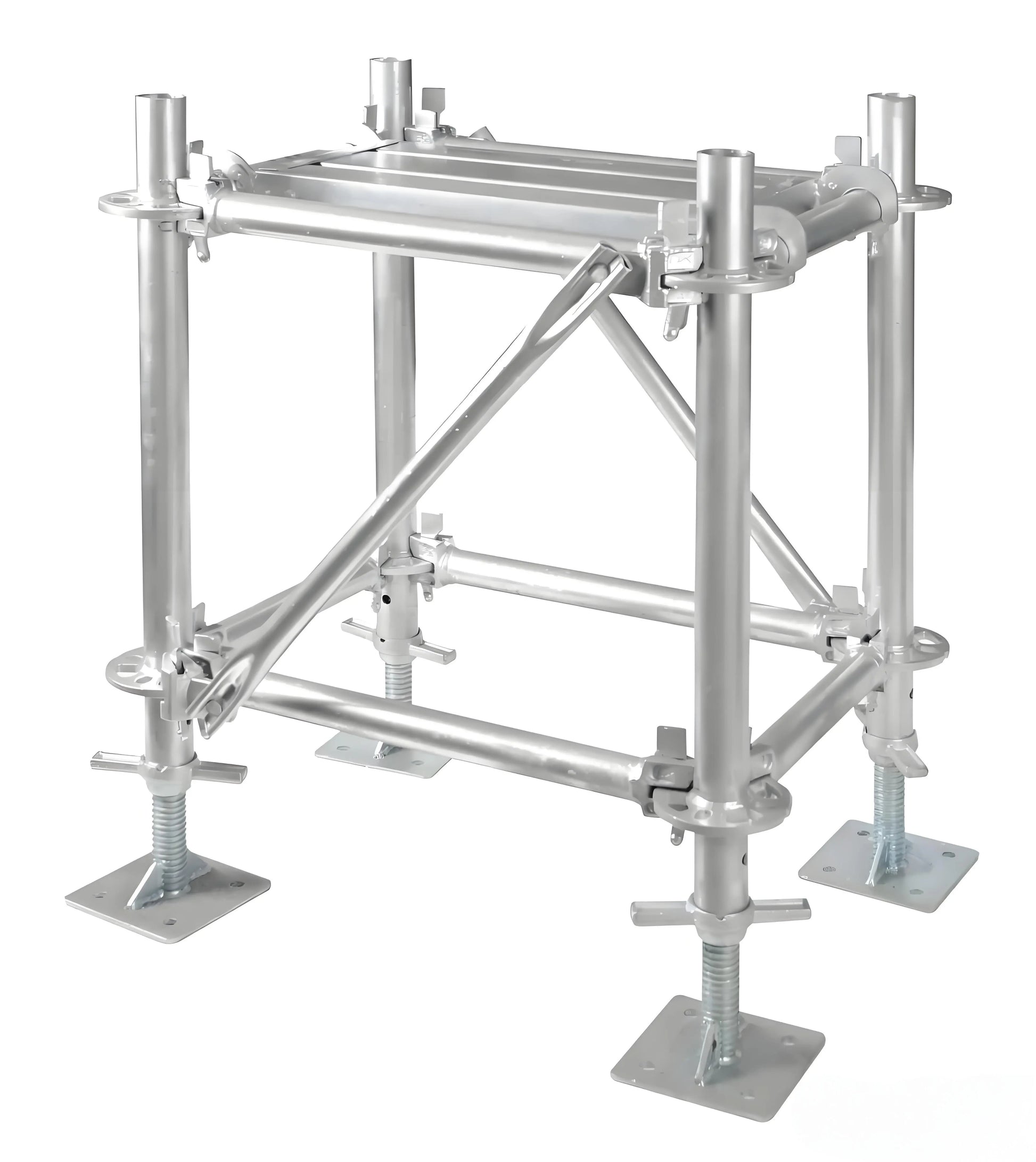

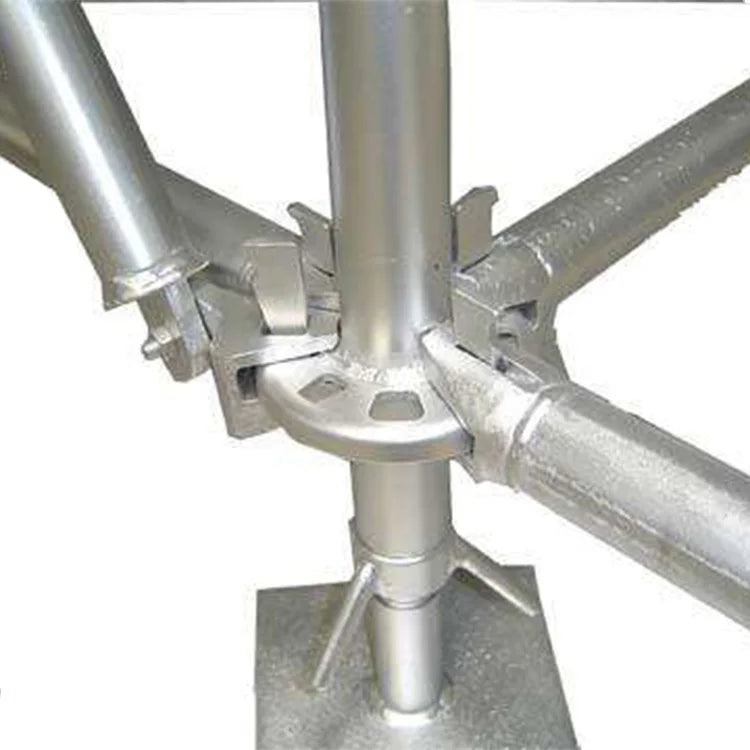

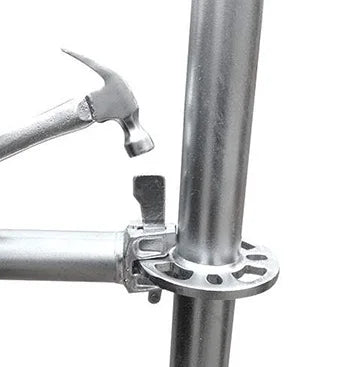

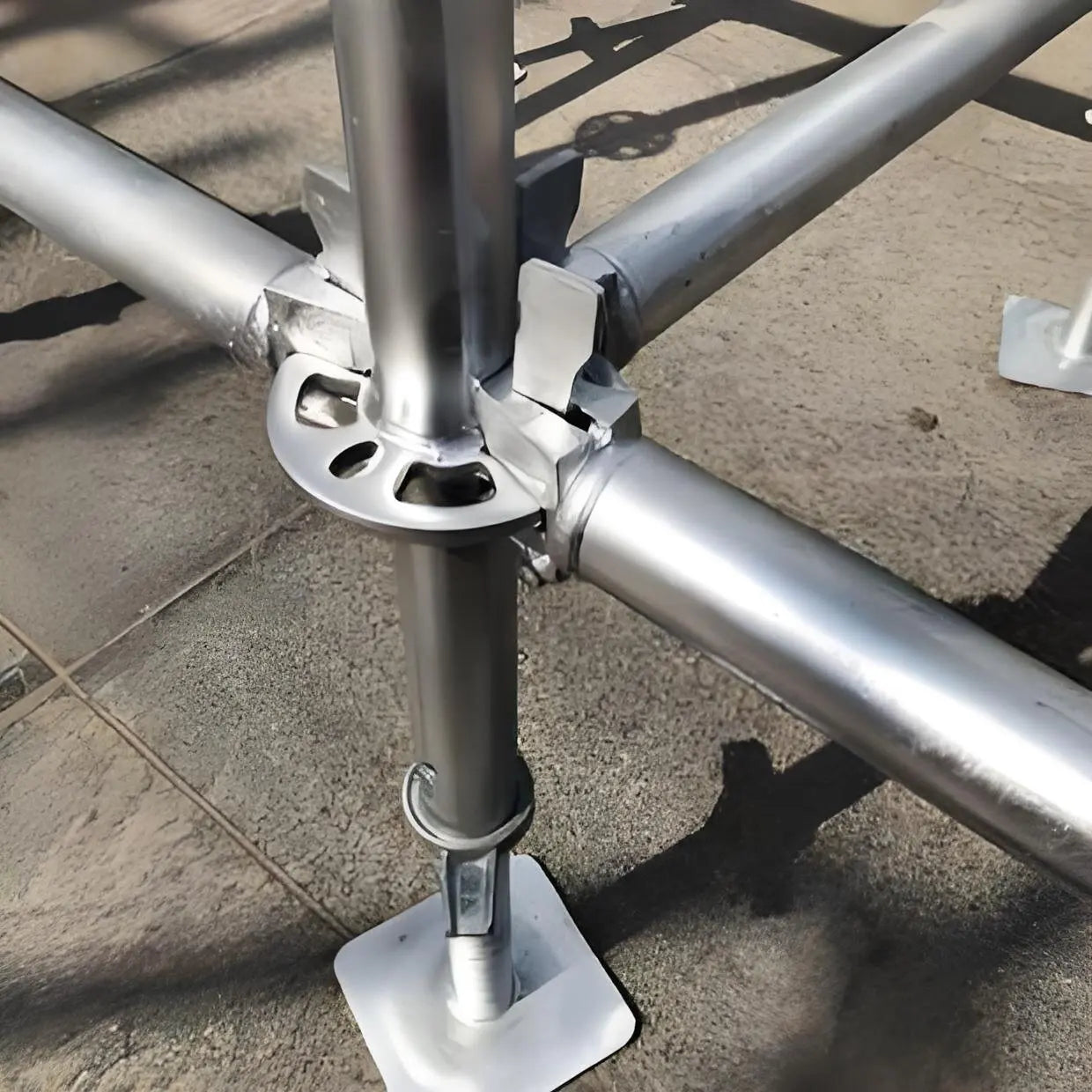

Ring lock scaffolding uses the specially designed rosette and self-locked wedge pin, you just need to put the pin into the rosette and then it will be locked. The Axial bearing capacity design makes the scaffolding tower safer. Even one worker can assemble and disassemble it easily with a hammer, so it is definitely saving a lot of time and manpower.

Specification

TYPE	MATERIAL	OD	THICKNESS	SIZE	WEIGHT
Standrad
M48	Q345	48.3mm	3.25mm	500mm	2.76kg
								1000mm	5.18kg
								1500mm	7.61kg
								2000mm	10.03kg
								2500mm	12.45kg
								3000mm	14.87kg
								4000mm	19.72kg
Ledger
M48	Q345/Q235	48.3mm	3.25mm 2.75mm 3.0mm 2.4mm	1000mm	4.62kg
								1500mm	6.50kg
								2000mm	8.38kg
								2500mm	10.27kg
								3000mm	12.16kg
Diagonal Bar
TYPE	MATERIAL	OD	THCKNESS	L(mm)	H(mm)
M60	Q195	42mm	2.4mm	900	1500
								1200	1500
								1500	1500
								900	2000
								1200	2000
								1500	2000
								1800	2000

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Hebei Hengxiang Engineering Material Co., Ltd is an integrated enterprise specializing in the research and development,production, installation, maintenance and leasing of Suspended Platform and Scaffolding.

Our main products are high altitude electric suspended platforms, H frame scaffoldings, ladder scaffoldings, ring-lock scaffoldings, adjustable props and suspended platforms accessories, e. g. safety lock, hoist, electric control panel and so on.

The factory is established in 2008 and is one of the leading manufacturers of suspended platforms and scaffolding in China.Westrictly abide by the ISO9001: 2000 certification to ensure our quality. Our products have obtained CE certificates.

FAQ

1. Q: Are you manufacturer or trader? A:We are a manufacturer with our own factory.which can customize products .We have more than 25 year’s experiences in producing suspended platforms, H frame scaffolding,Ring lock scaffolding and self-climbing scaffolding. 2. Q: What's your delivery time? A: Generally, within 3-7 days after receiving payment or depends on the quantity of your order. 3. Q: Do you have relevant certificate? A: We have CE, ISO 9001 certificate, and we can assist you with any certificate application you need. 4. Q: Does the scaffolding size can be customized? A: Yes, O E M service is available here. We can adjust it according to your requirement. 5. Q: What materials do you use when producing scaffolding and Scaffold accessories? A: The materials we use are aluminum alloy; hot-dip galvanized steel and painted steel. 6. Q: Do you have inspection procedures for the manufacture line? A: We have 100% self-inspection quality management system during production and before packing. 7. Q: Can I have a visit to your factory before the order? A: Why not? Welcome to my factory. You may contact us before you visit, our sales personnel will provide you a full assistance.
