SPECIFICATIONS

Application: Outdoor Events

Brand Name: RAISE

Continuum Running Time: 12.0 h

Displacement: 223cc

Engine Type: 4-Stroke,Air-Cooled Gasoline Engine

Feature: Easy To Carry,Light Weight,Led Display

Frequency: 50Hz/60Hz

Fuel Tank Capacity: 15 L

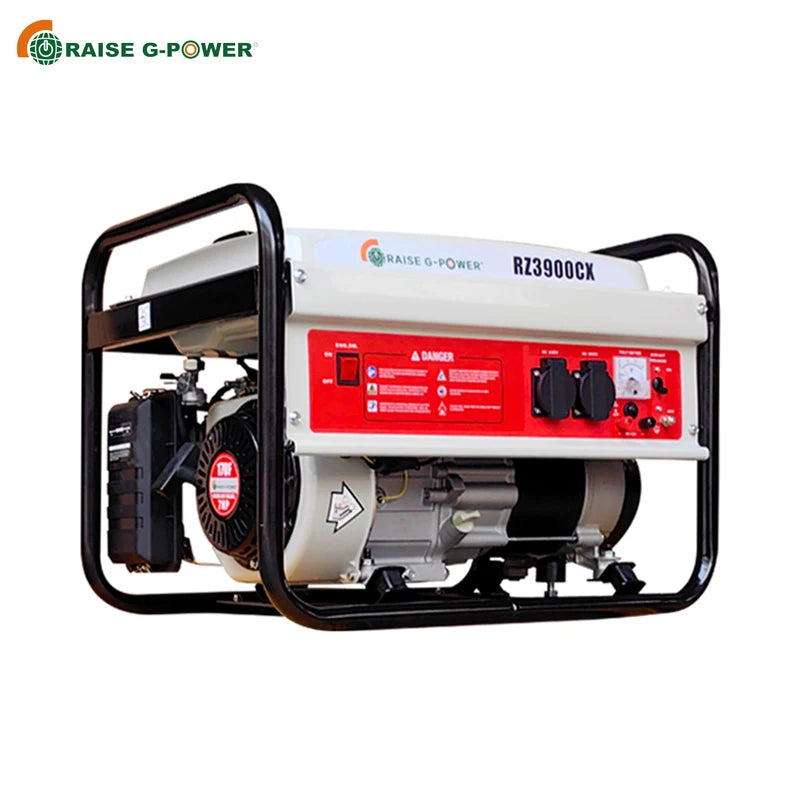

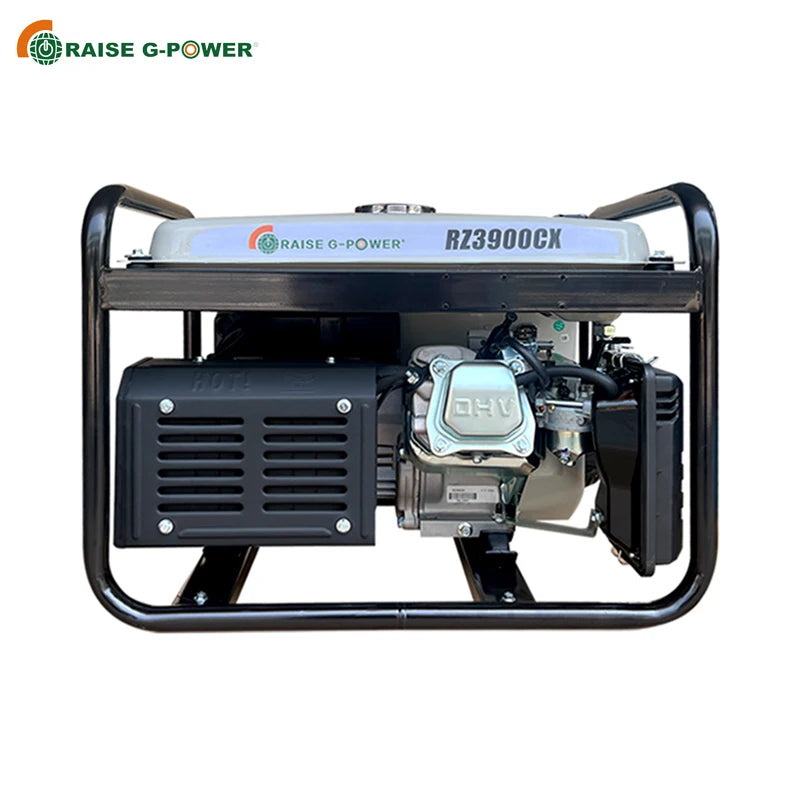

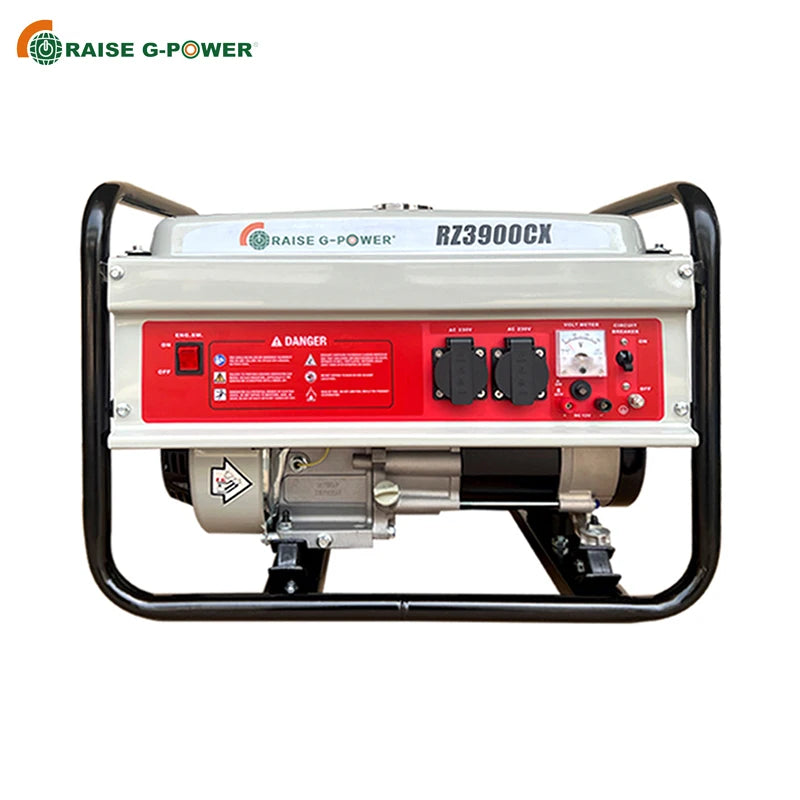

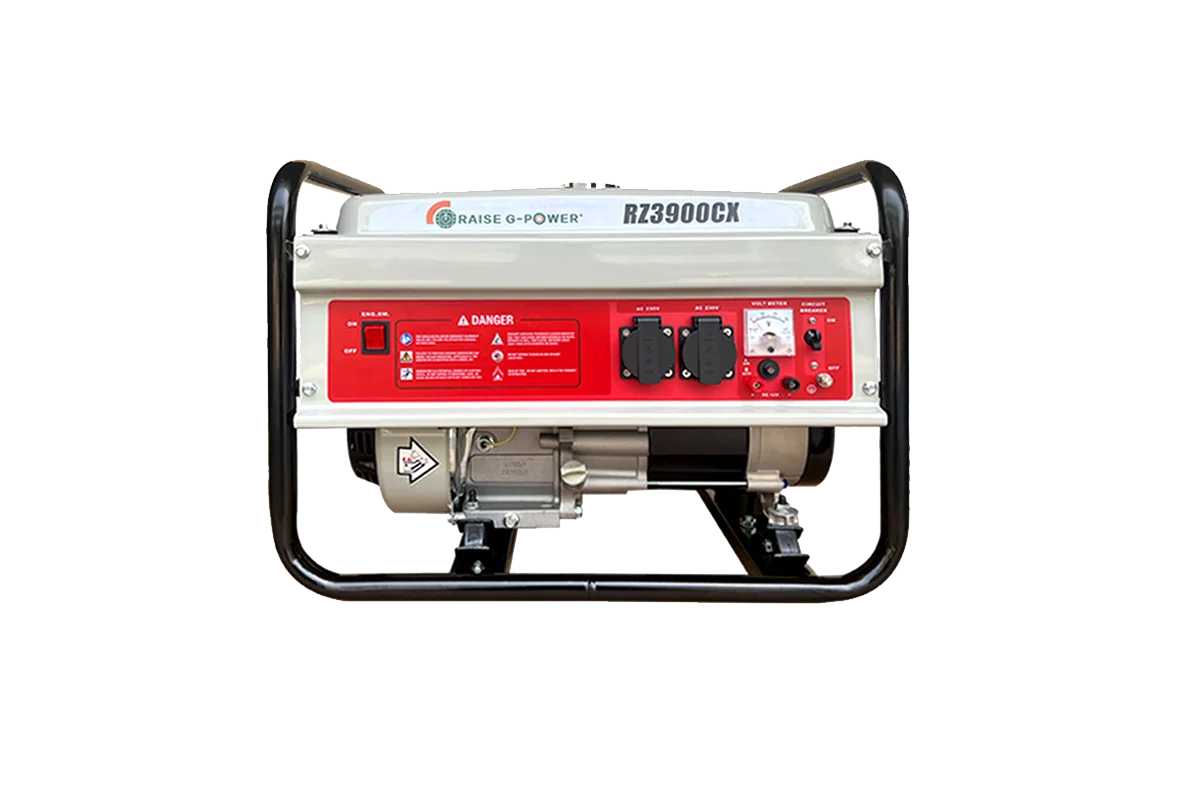

Model Number: RZ3900CX

Place of Origin: Shanghai, China

Rated Current: 12 A

Rated Voltage: 230 V

Starting System: Recoil Start

Weight: 44KG

Technical Parameters
Unit model	RZ3900CX
AC rated output power (kW)	2.8
AC max. output power (kW)	3.2
Rated voltage (V）	AC 230
Rated frequency (Hz)	50
Rated current (A)	12
Engine model	RZ170F
Engine type	Single cylinder, four stroke, air-cooled (OHV）
Engine displacement (cc)	223
Engine speed (rpm)	3000
Cylinder diameter × stroke (mm)	78×70
Lubricant mode	10W-30 / SAE 30
Lubricant capacity (L)	0.67
Lubrication type	Pressure splash
AVR	Yes
Damper position	Hand pull plate end
Fuel switch	On the fuel tank
Starting method	Hand pull start
DC output	12V/8.3A
DC output position	On the panel
Low oil pressure alarm	Yes
Ground terminal	Yes
Start switch type	OFF/ON
Start switch position	On the panel
Panel lighting switch	On the panel
Voltage meter	Mechanical
Fuel tank capacity (L)	15
Continuous operation time @ 100% load	9 hours
Continuous operation time @ 50% load	12 hours
Engine power (kW/rpm)	4.2/3000
Compression ratio	8.5:1
Warranty	1 year or 1000 hours
Accessories	Oil funnel, two plugs, maintenance tool kit, user manual and other paper documents
Dimensions & Weight

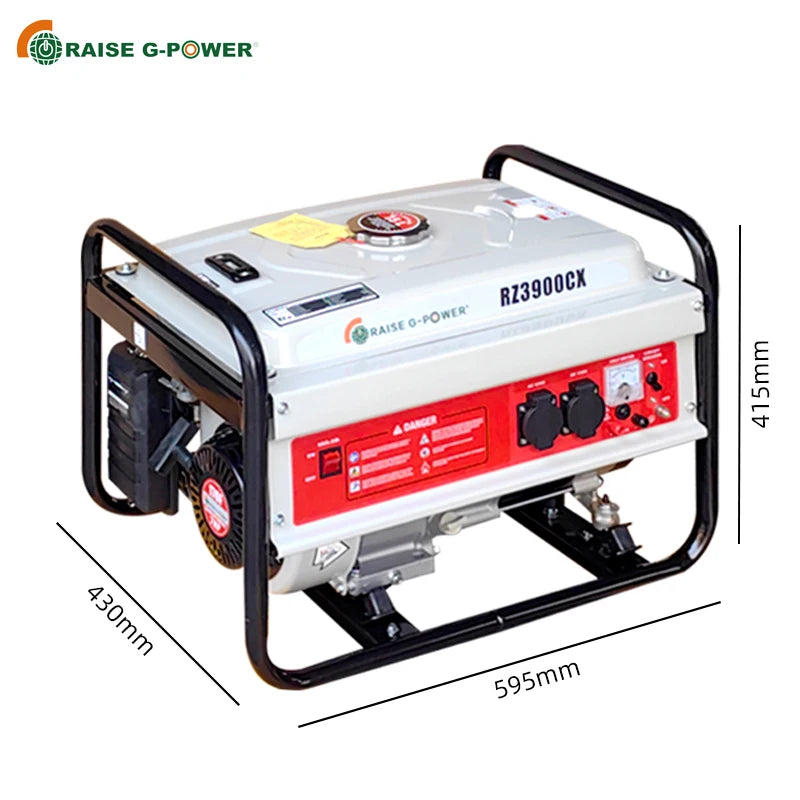

Unit size: Length × Width × Height (mm)	595×430×415
Packaging size: Length × Width × Height (mm）	610×450×470
Net weight (kg)	44
Gross weight (kg)	46

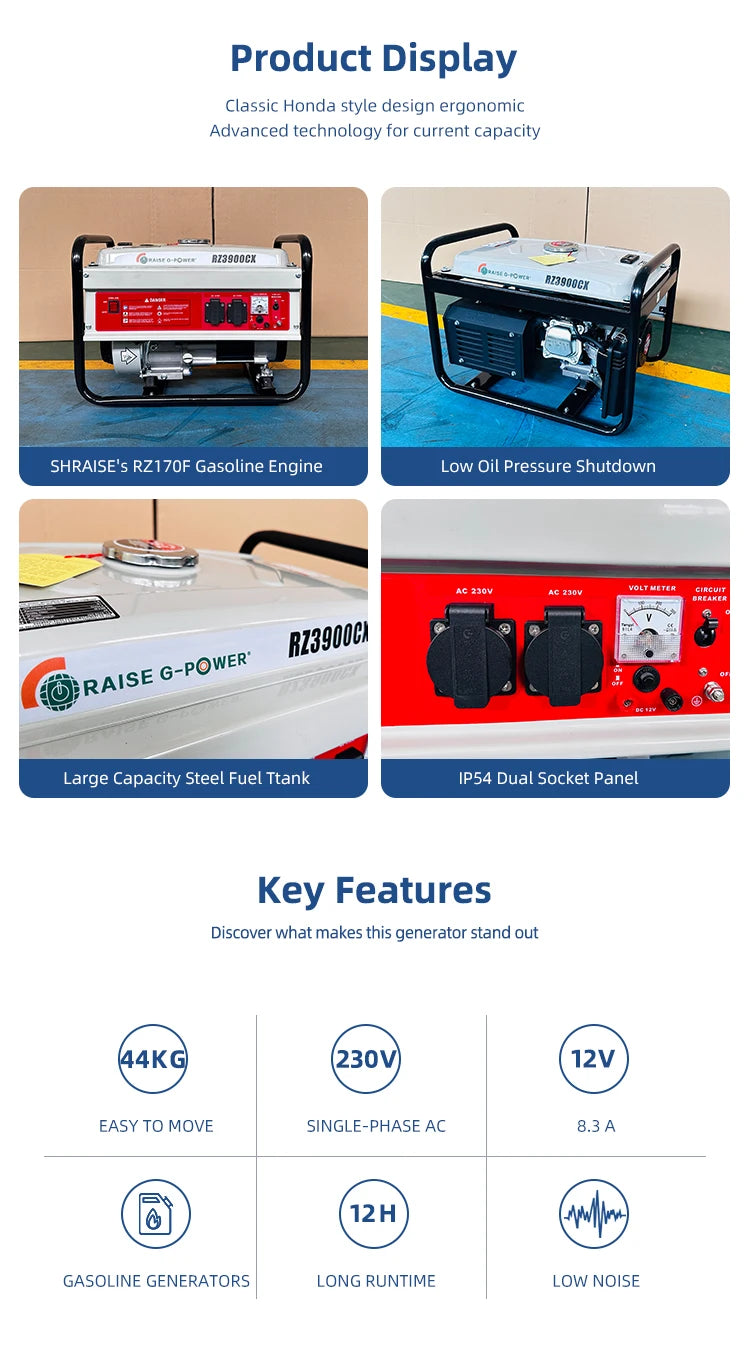

Packaging And Disassembly Display

Q: Are you Trading Company or MANUFACTURER?
A: We are MANUFACTURER and exporter. Welcome to visit our factory.

Q: What's your generator set's POWER RANGE?
A: Our generator sets cover a wide power range from 1kVA portable units to 2500kVA industrial diesel generators.

Q: What is the WARRANTY period of your products?
A: 12 months or 1000 working hours, whichever comes first. But according to some special items, we can extend the warranty period.

Q: What is your Production Time?
A: About 30 days for 300 products. The specific production time needs to be arranged according to the production plan when confirming the order. For detailed production time, please contact JUDY

Q: Do you do 100% TEST before shipping?
A: Every product will go through strict factory inspection, and before delivery, we will take pictures of the product's
inspection, packaging, shipment and other details to confirm with the customer. Of course, we also support customers to find third- party testing agencies to inspect the quality of our products before delivery.

Q: For detailed production time, please contact JUDY
A: （TEL/WeChat/Whatsapp: +86 133 7186 0982 ）

Q: What types of products can you supply?
A: We can do small general generators, large gas/diesel generators, small general water pumps, large diesel pump trucks, mobile lighting trucks.

Q: What is the MOQ?
A: We support one SAMPLE; If you need LOGO customization, MOQ: 30PCS; Color customization, MOQ: 100PCS; Packaging customization,
MOQ: 100PCS

Q: What’s the PAYMENT TERMS?
A: T/T, 30% deposit, 70% paid before delivery; or T/T, 30% deposit, 70% L/C at sight; or 100% L/C at sight.

Q: What is the Shipping Method?
A: DHL/UPS/TNT/Fedex and other air or sea shipments are acceptable. In any case, we can ship any shipment you want.

Q: How to order?
A: Just email us or call us directly, such as generator need to provide the following information.

（1）Power.

（2）Engine brand requirements.

（3）Electric load details.

（4）Working conditions.
