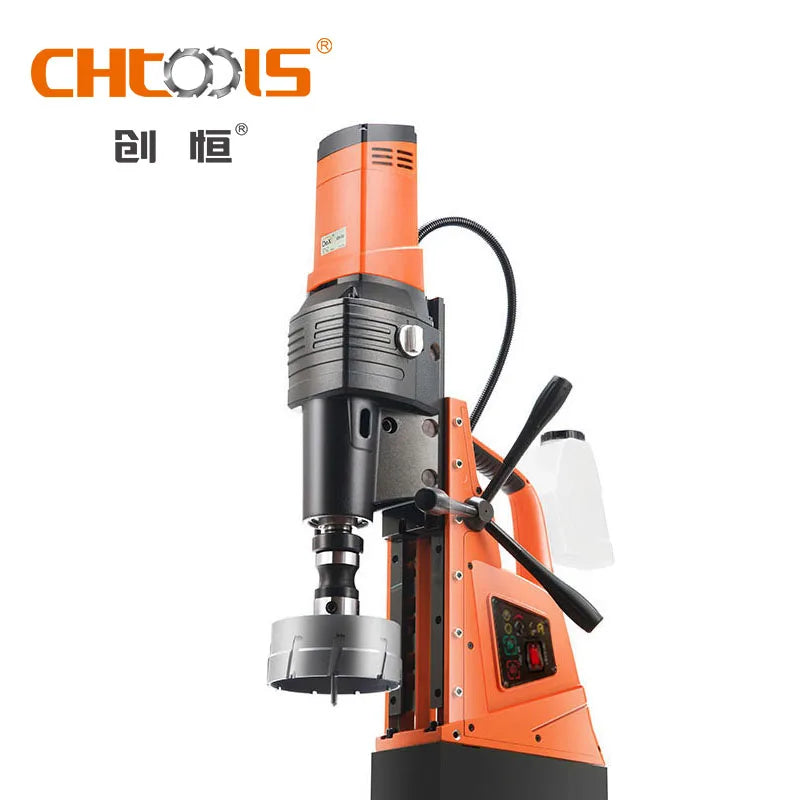

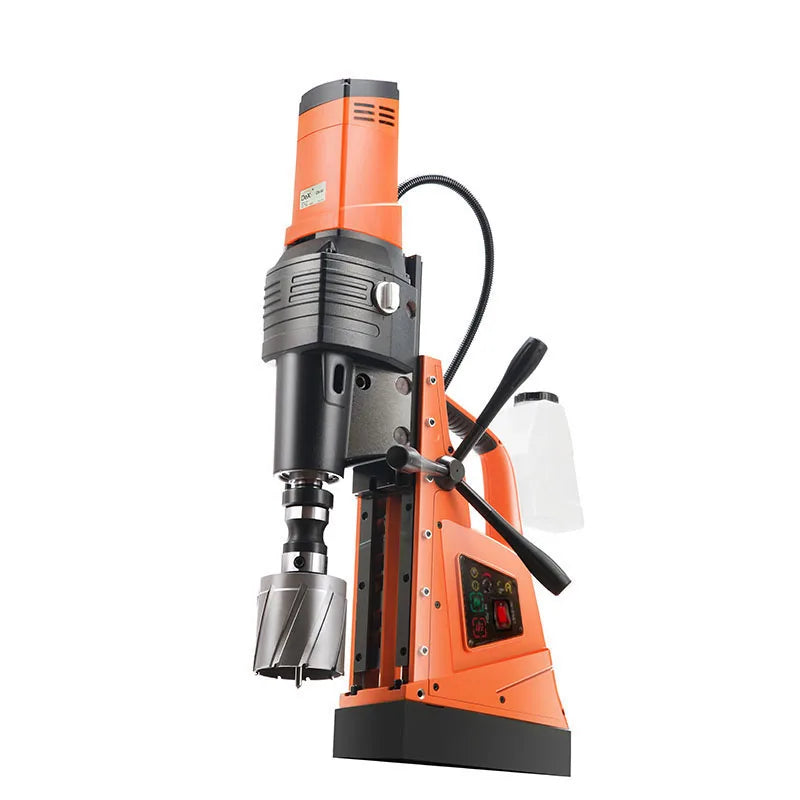

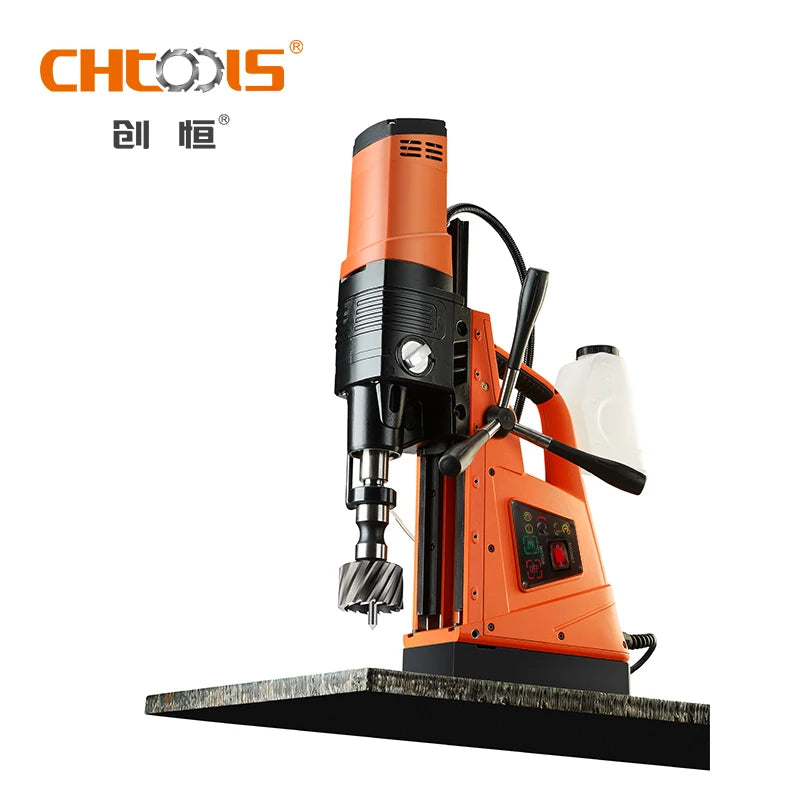

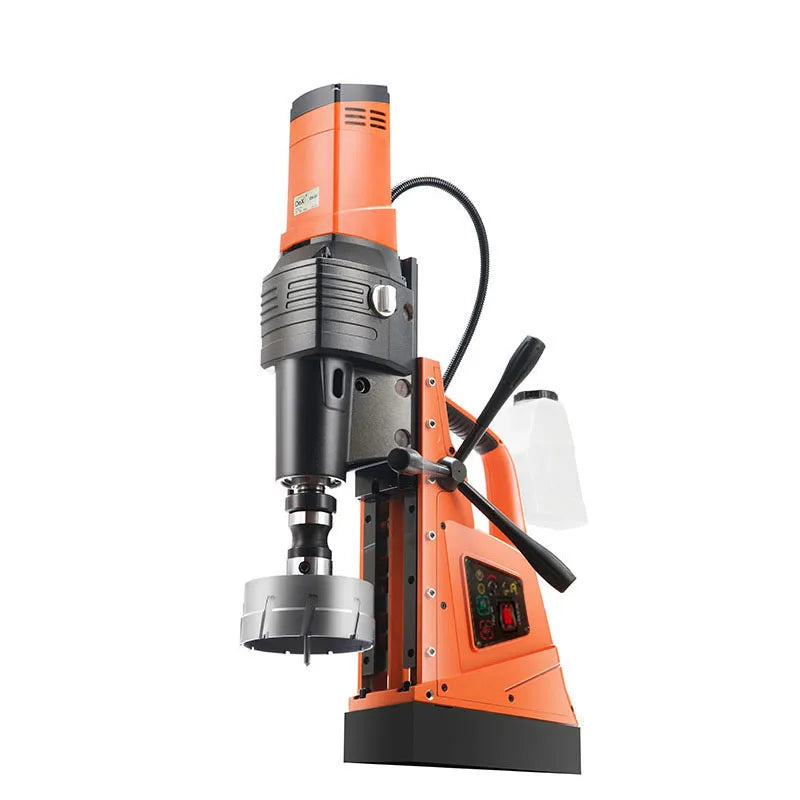

Magnetic Drilling Machine Best Quality DX-120X Magnetic Core Drill with Tapping Function

Magnetic Drilling Machine Best Quality DX-120X Magnetic Core Drill with Tapping Function

KSh194,175.50 KES
KSh223,301.50 KES KSh194,175.50 KES
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

Chuck Size: MT4

Chuck type: Industrial

Load speed: 80/125/175/300rpm

Magnetic adhesion: 20000N

Max Torque: 20000N

Max. Drilling Dia. (mm): 120mm(4-3/4")

Motor rated power: 2500W

Number Of Speeds: Variable Speed

Product name: magnetic drilling machine

The max cutting depth: 100mm( 4")

The max diameter of twist drill: 42mm(1-11/16")

Tool holder: MT4

brand name: CHTOOLS

customized support: OEM,ODM

dimensions: 79*62*26cm

drill type: Drill Press,Magnetic Drill

grade: Industrial

max. drilling diameter: 120mm

model number: DX-120X

motor type: Brush Motor

no-load speed: 80/125/175/300rpm

place of origin: Zhejiang, China

power source: electric power

voltage: 220-240V

warranty: 1year

weight: 48kg

VR
Products Description
Product Type
DX-120
Motor rated power
2500W
Load speed
80/125/175/300rpm
Tool holder
MT4
Magnetic adhesion
20000N
The max cutter capacity
120mm (4-3/4”)
The max cutting depth
100mm( 4" )
The max diameter of twist drill
42mm ( 1-11/16" )
The min cutter depth
15mm
Stroke
220mm
Motor can adjust the height to
60mm
Magnetic drill machine dimension
440*250*580mm
Magnetic base size
280*115*56.5mm
Countersunk drilling
10-80mm
Total weight
36.5KG
DX-120 MAG DRILL FEATURES
1.Aluminum machine body with tilted type and high-strength,balanced rigidity and aesthetics
2.Lightweight design of the rails and skateboards,surface-hardening treatment, excellent durability
3.Double dovetail skateboard structure, the motor is adjustable to meet more requirements for heights
4.Hands are ergonomically designed to reduce operating fatigue
5.Use the membrane switch to control, light and easy to operate
6.Motor overcurrent protection function
7.Power, magnetic indicator light, effectively to know the working status of the equipment
8.High penetration magnetic base suction, more reliable adsorption force
9.Magnetic base stand-by half-wave mode, more durable and safer
10.2500W High-power motor configuration, the drilling is stable
11.Air outlet guide design, prevent direct blowing at the operating position
12.The inclined protection design of the air inlet to avoids liquid or debris falling into the inside of the motor 13. Four speed adjustment, widely used.
14.High-speed gear with 7-level precision, noise reduction and long life
15. Sliding plate lock makes tool replacement & machine displacement safe and convenient

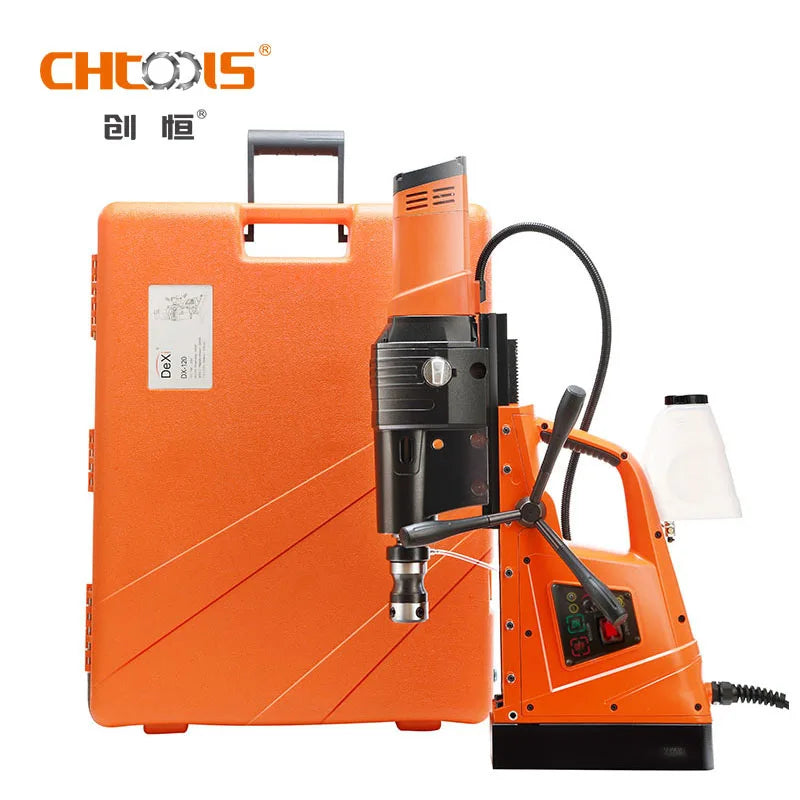

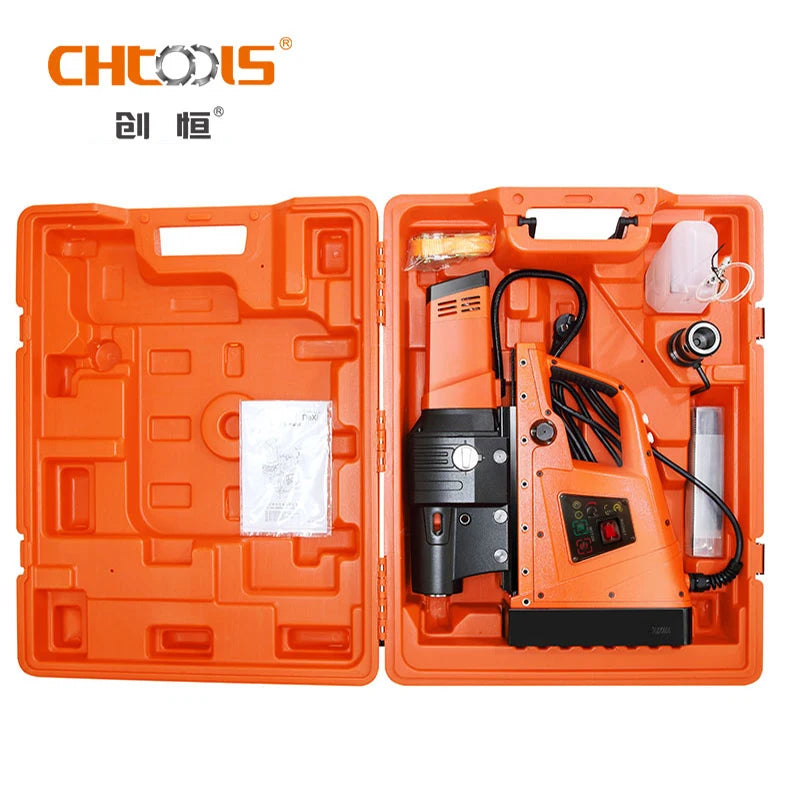

Product packaging
Comment & FAQ

FAQ：

  1. What do you do?

A: Our products mainly include: Annular cutter, Magnetic drill machine, Spade drill, Hole saw, Countersink, Step drill, Rail cutter and Accessories, ect.

  1. Can you do OEM for us?

A: OEM are welcome for us. Customers’ brand, logo, label can be customized for product and carton package, but based on a certain quantity.

  1. Can you help us to do some change about your product?

A: Yes, special drawing and design will be evaluated by our technical department, unit cost will be calculated by finance department for your final confirmation. All procedures will be informed and confirmed with you in advance.

  1. Can I get a sample?

A: Yes. Samples are welcome to us before mass production. But few extra cost and products cost will be charge from customer first, and sample cost will be back to customer once started mass production.

  1. Are you a factory or trading company?

A: We are a leading professional designer & manufacturer of high-quality cutting tools with advanced technique and equipment in this line. Our company established in 1992.

  1. Where is your company location?

A: We’re in Jiaxing city Zhejiang Province, where is by train to Jiaxing, Hangzhou or Shanghai respectively. The most convenient traffic location around SHANGHAI area.

More products
Company Profile
Zhejiang Xinxing Tools Co., Ltd. established in 1994, is a manufacturer concentrating on R&D and manufacture of cutting tools with high-performance.

Our products include: Annular cutter, rail cutter, hole saw, spade drill, speed drill, step drill, countersink, magnetic drill machine, deep hole drill, taps, rebar cutter, etc.

We concentrate on manufacturing high-quality cutting tools, normalize ISO9001:2015 quality control system under operation strictly, and ensure unified high standard quality requirements.

We have modern production lines, including internationally-known numerical control machine tool, full-automatic CNC machine tool, heat treatment production line, strong production capacity, and all the production processes are completed by our own factory.
Production process
Exhibition
Certifications
