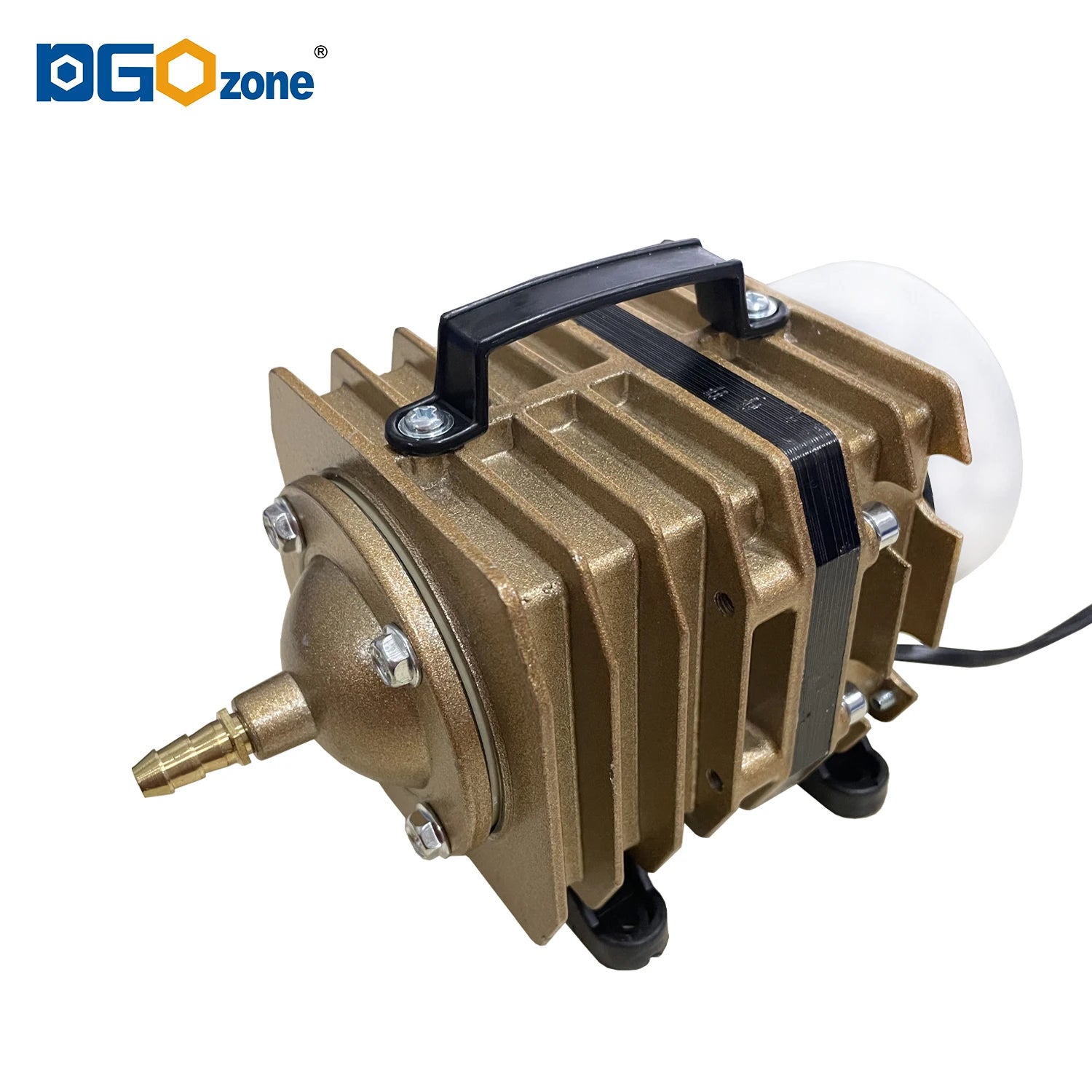

[KH-C700] DGOzone 105LPM air Pump 7 bar Oil-free air Compressor
[KH-C700] DGOzone 105LPM air Pump 7 bar Oil-free air Compressor
Couldn't load pickup availability
SPECIFICATIONS
Air Flow( 2 bar): 105 LPM
Brand: DGOzone
Cooling Method: Air Cooled
Installation dimensions(mm): 223.2*88.9
Noise: ≤68dB
Power(W): 750
Rating working pressure: 700 Kpa
Weight (kg): 17
Working temperature: 5-40℃
brand name: DGOzone
configuration: Portable
core components: Pump
dimension(l*w*h): 268.8*128*212.7
gas type: Air
lubrication style: Oil-Free
machinery test report: Not Available
model number: KH-C700
mute: Yes
place of origin: Shanghai, China
power source: AC Power
type: Screw
video outgoing-inspection: Not Available
voltage: 110V/220V
warranty: 180 Days
Factory price oil-free silent Air Compressor
Widely used in pneumatic tool, pneumatic lock, tire inflation, dental, medical, spray paint, sandblasting, blowing process etc.
Feature
◆ Ultra-quiet operation - Less than 70 decibels.
◆ Stable performance pump and motor to guarantee the longevity of air compressor
◆ Produces less heat which dissipates more efficiently.
◆ 100% factory tested at full pressure to make sure the reliability and safety of each product before shipment
◆ 100% oil-free construction, eliminating the possibility of oil contamination from the compressor.

Items/Models |
KH-C280 |
KH-C500 |
KH-C700 |
|||
Power |
≤315W |
≤550W |
≤750W |
|||
Noise |
≤59dB |
≤66dB |
≤68dB |
|||
Air Flow( 2 bar) |
75 LPM |
90 LPM |
105 LPM |
|||
Working temperature |
5-40℃ |
5-40℃ |
5-40℃ |
|||
Rating working pressure |
206.8 Kpa |
400 Kpa |
700 Kpa |
|||
Installation dimensions(mm) |
83*147 |
223.2*88.9 |
223.2*88.9 |
|||
External dimensions(mm) |
L=234 W=103 H=165 |
L=268.8 W=128 H=189.7 |
L=268.8 W=128 H=212.7 |
|||
Net weight |
6.5KG |
9.5KG |
12KG |
|||
Voltage : AC110~130V 50/60Hz; AC220~240V 50/60Hz |
||||||
We also supply oxygen concentrators
KH-C280 always work with 3L/min oxygen concentrators
KH-C500 always work with 5L/min oxygen concentrators
KH-C700 always work with 7L/min and 10L/min oxygen concentrators

Models/Items
|
Oxygen(90%)
|
Power
|
Input
compressed air
|
Input working
pressure
|
Oxygen
pressure
|
Size(mm)
|
||||||
KH-OC3
|
3L/Min
|
6W
|
58L/Min
|
0.14-0.18Mpa
|
0.03-0.05Mpa
|
D=190 H1=285 H2=430 |
||||||
KH-OC5
|
5L/Min
|
6W
|
75L/Min
|
0.14-0.18Mpa
|
0.03-0.05Mpa
|
D=190 H1=355 H2=500 |
||||||
KH-OC7
|
7L/Min
|
6W
|
105L/Min
|
0.15-0.20Mpa
|
0.03-0.05Mpa
|
D=190 H1=455 H2=600 |
||||||
KH-OC10
|
10L/Min
|
6W
|
150L/Min
|
0.16-0.21Mpa
|
0.03-0.05Mpa
|
D=190 H1=535 H2=680 |
||||||
KH-OC15
|
15L/Min
|
8W
|
210L/Min
|
0.18-0.22Mpa
|
0.03-0.05Mpa
|
D=190 H1=535 H2=860 |
||||||
Voltage : AC110~130V 50/60Hz; AC220~240V 50/60Hz |
||||||||||||
Oxygen concentrators always work with air compressors





Located in the east of China, Shanghai. DGOzone Ltd. is one technical listed company, who professionally designs, develops, distributes ozone generators for civilian and industrial air and water treatments.



DGOzone majors in ozone generator machines, ozone generator units, ozone accessories, plastic check valves and plastic connectors. Ozone generator units include ceramic plate ozone generator units and ceramic tube ozone generator units. The accessories cover venturi, check valve, air dryer and so on. Our ozone generator units are certificated through CE and RoHS, honored by nice clients from home and abroad, which are widely used in houses, hotels, schools, offices, mansions, swimming pools, food factories, bottled water fill lines and fields of medical treatment and public health.
Much respect is paid to the talent and much to science and research of ozone high-tech and environmental protection materials by DGOzone. Most effort is made on meeting requirements of different customers with positive service, quality products and favorable prices. OEM service offered, Design service offered, Buyer label offered.
Ozone is 100% eco-friendly and chemical-free, leaving no chemical residue or harmful byproducts. For the benefit of worldwide people and the environment, now DGOzone is doing best to be well positioned as an Efficient, Excellent and Entire supplier in this wonderful sector.
Now DGOzone has been one of the biggest exporter for ozone generators and accessories in China. Besides, DGOzone is also one of the biggest donator in national ozone fields to China Pavilion in Expo 2010 Shanghai.




Packing & Delivery
Meanwhile, other shipping ways are available such as FedEx, UPS, TNT, EMS, China Post or Sea. Just let us know which one is best for you, we do all the left work.


1. 20 years of instrumentation equipment production experience.
2. Product support OEM / ODM, export 100+ countries.
3. Provide email, Alibaba, whatsapp 24-hour one-on-one technical support service online.4. 20 years of ozone equipment manufacturing experience.
5. Customizable products to meet your unique needs.
6. Factory-direct price & professional after-sales support.
Q: How about the quality? How do you control it?
A: We have the best professional engineers and a strict QA & QC system. Each process is inspected, and final testing is donebefore shipment to ensure stable performance.
Q: Do you provide samples ? is it free or extra ?
A: Yes, free samples are provided by product, but customers need to pay for shipping.
Q: Do you have your own R&D team? Can we customize products?
A: Yes, we have a professional R&D team and can customize products according to your specific requirements, including size,material and function.
