SPECIFICATIONS

After-sale Service: Online Technical Support,Onsite Installation,Free Spare Parts

Application: Construction Site

Brand Name: suspended platform

Certificate: CE, CCC, ISO9001

Design Style: Modern

Handrails: includes handrails

Height adjustment: Adjustable Height

Lifting Height: above 10m

Lifting height: 100m

Lifting speed: 9-11m/min

Load Capacity: 500kg,630 kg,800 kg,1000 kg

Load capacity: 250kg 500kg 630kg 800kg 1000kg

Locking mechanism: Manual Lock

Material: Steel ,Aluminum Alloy,Galvanized Steel,Steel Q235

Model Number: ZLP250 ZLP500 ZLP630 ZLP800 ZLP1000

Place of Origin: Shanghai,China

Platform Length: 1.5m,5m,6m,7.5m

Power: 1.5kw,1.8kw,2.2kw

Project Solution Capability: graphic design,3D model design,total solution for projects

Safety lock: LSG30

Surface: Steel Galvanized Aluminum

Surface Treatment: Hot-Dip Galvanized

Type: work platforms,work platforms

Voltage: 220 V,240 V,380 V,440 V,3 phase 380v 50hz,other

Warranty: 1 Year

rated load(kg): 500kg,630 kg,800 kg,1000 kg

safety lock: LS30

suspension mechanism: SPECIAL MADE,Fixed

Product Overview

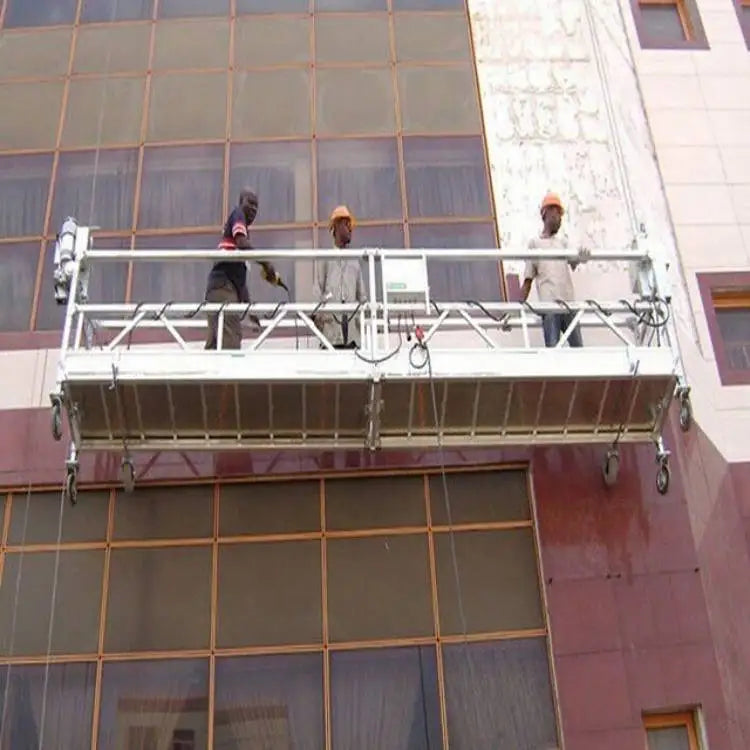

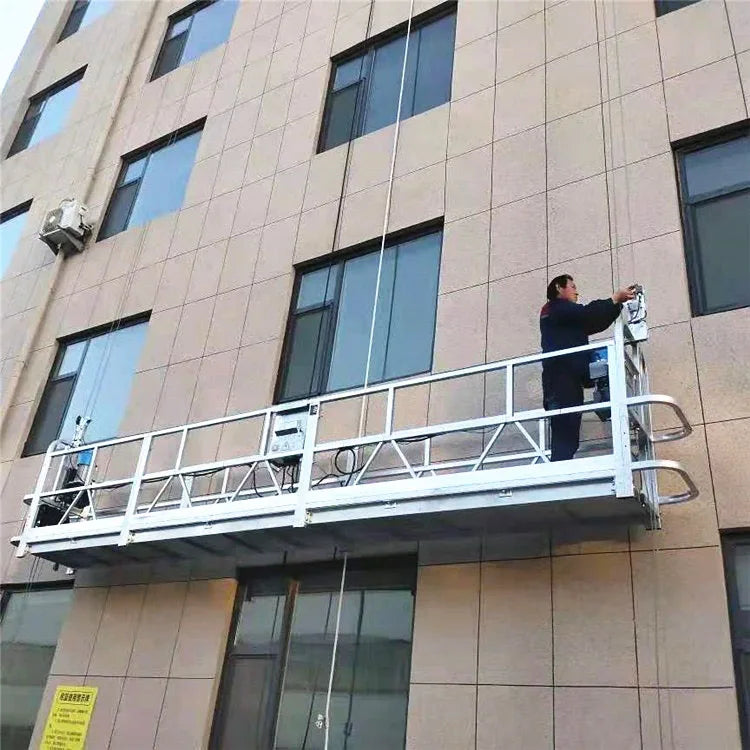

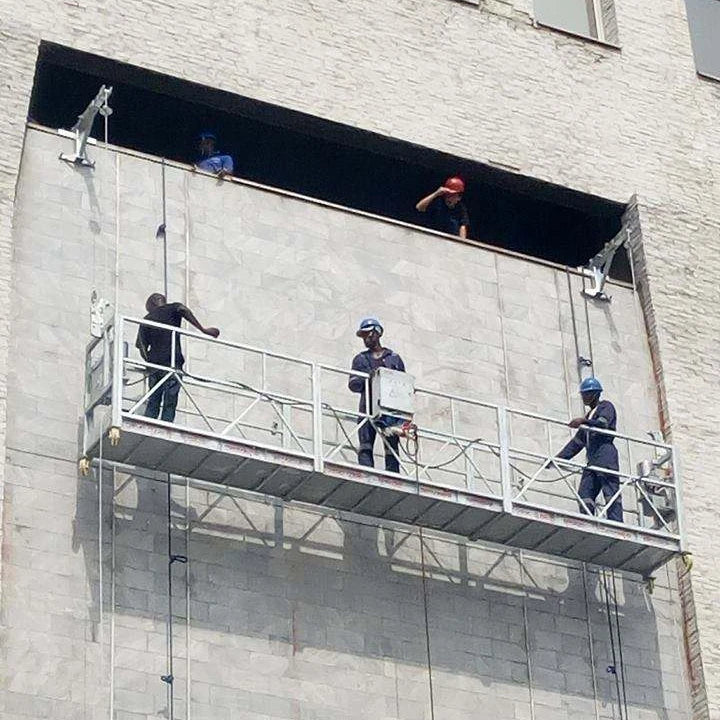

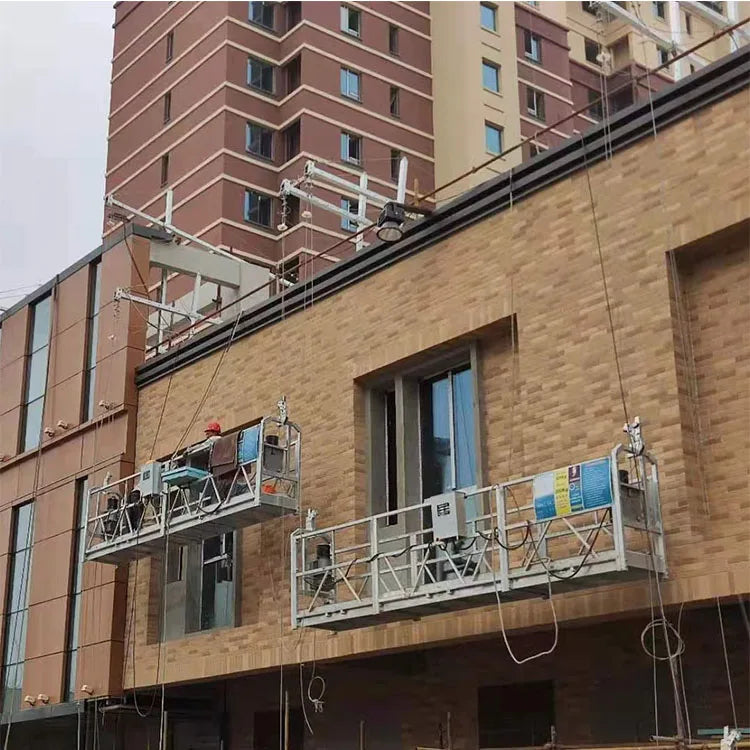

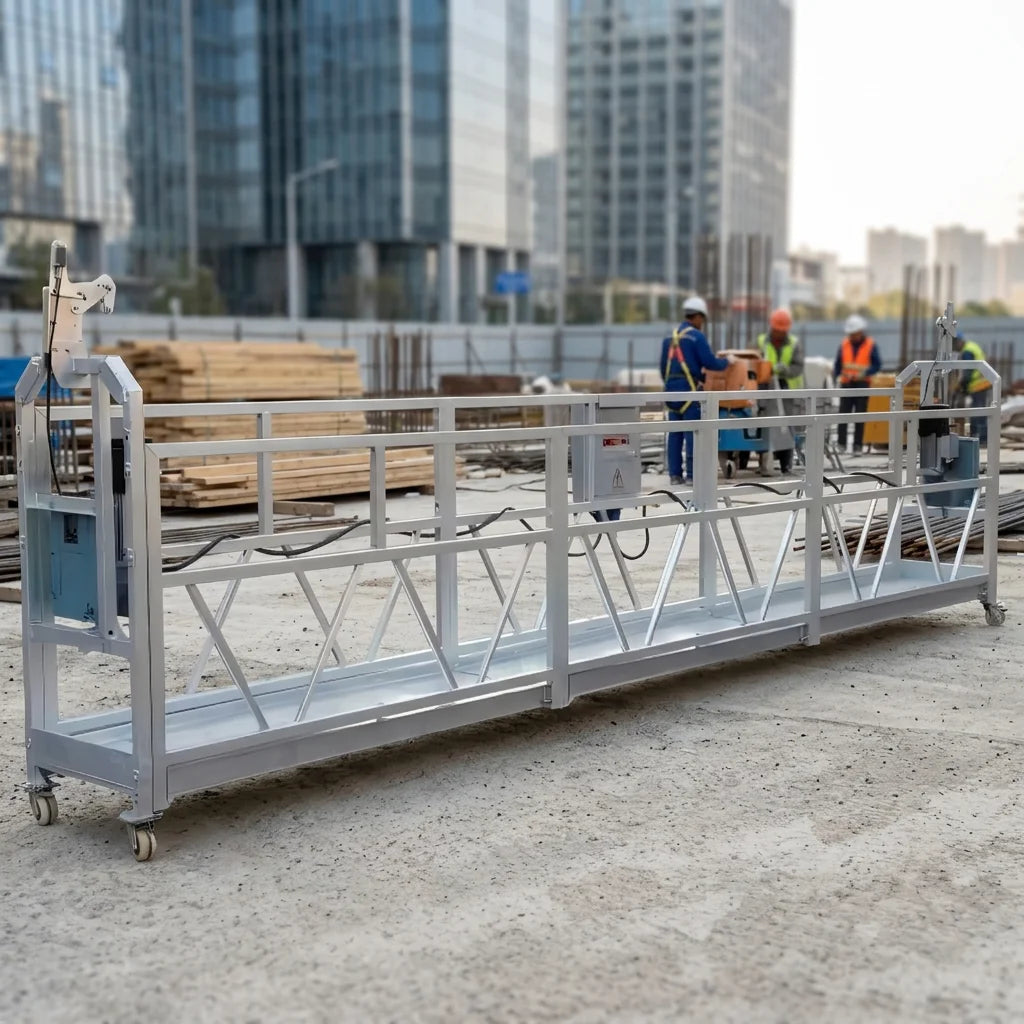

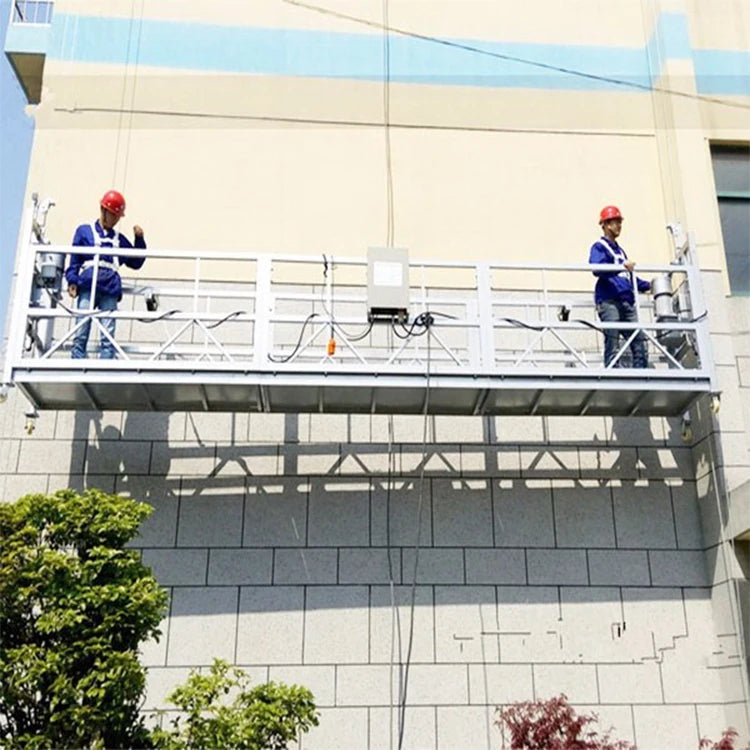

Suspended platform is mainly composed by suspension mechanism, hoist, safety lock, electric control box, working platform.Its structure is reasonable and easy to operate.It can be assembled and disassembly accroding to the actual Demand.The cleaning platform is mainly used for refurbishment, decoration, cleaning and maintenance of high construction building.

Why Suspended Platform Cradles?

1. The most stable and secure while moving and working.

2. Easy to disassemble, assemble operate and maintain.

3. With a wide range of accessories Suspended Platform cradle can be adapted, as standard to many

site configurations.

4. Composed of 70% aluminum, they are both lightweight and corrosion resistant.
5. Easy to transport where each platform is packed in its own box.
6. Works and fits tanks, bridge piers or towers.
7. Anti-slipping aluminum base platform.
8. Cradle is provided with soft non-marking facade rollers, to protect facade from any damages during

operation manual lowering in case of power or winch failure.
9. Has electrical of IP 54 protection.
10. Cradle is equipped with anti-tilt and anti-fall arrest safety brake devices.

11. Castor wheels for transportatio.

ZLP500 suspended platform

ZLP630 suspended platform

ZLP800 suspended platform

ZLP1000 suspended platform

PRODUCT SPECIFICATIONS

(Custom configurations available upon request.)

Technical Parameter
Type	ZLP250	ZLP500	ZLP630	ZLP800	ZLP1000
Rated Load	250KG	500KG	630KG	800KG	1000KG
Platform Sise	1.5x0.69x1.18m	5x0.69x1.18m	6x0.69x1.18m	7.5x0.69x1.18m	7.5x0.69x1.18m
Platform material	Aluminum Alloy type, steel type with hot galvanized,steel type with painting
Wire Rope Height	0-200m
Electrical Cable	(3x2.5+2x1.5mm2 )0-200m
Working height	0-200m
Steel rope	1pcsx100m,Ф8.3mm   4pcsx100m,Ф8.3mm,Ф8.6mm,Ф9.1mm
Hoisting Machinery (Copper winding)	LTD5.0	LTD5.0	LTD6.3	LTD8.0	LTD10.0
		1.5kwx1	1.5kwx2	1.5kwx2	1.8kwx2	2.2kwx2
		15KN	15KN	15KN	15KN	15KN
Lifting speed	9.3m/min ± 5%
Safety Lock	LSG20	LSG20	LSG20	LSG30	LSG30
		20KN	20KN	20KN	30KN	30KN
		Locking Cable Angle: 3°~8°
Suspension mechanism Hot Galvanized	Front beam overhang: 1.3 m
		Support adjustable height: 1.1~1.6m
Power Source	380V/50HZ 3Phase, 220V/60HZ 3Phase , 220V/60HZ single phase
Counterweight	250kg	800kg	1000kg	1000kg	1200kg

PRODUCT CONFIGURATION

Our suspended platforms have been successfully exported to over 20 countries, earning trusted reputation and positive feedback from global clients.We provide customized site access solutions to ensure safe, efficient, and reliable high-rise operations. Whether for building maintenance, façade cleaning, or other aerial work, we deliver industry-leading equipment and technical support.

FAQ

1. How much is this suspended platform?

Price will offer you immediately after telling us your requirements of model, platform length,loading

capacity material,painting coat or galvanzied, voltage,with counterweight or not and price terms.

2. Features for Steel Platform with Plastic coating finish?
Color plastic spraying on platform surface with comptitive price compared with the aluminum alloy and

hot dip gavalnized surface.----

Hot dip galvanized steel platform with good anti corrosion and Lower price than aluminum alloy

platform.

3. What quality certificate you own for your products?
Our products own CCC, CE, EAC and ISO9001 certificate.

4. What payment terms do you accept?
T/T, L/C, Alibaba trade.

5. Product quality assurance and after-sales service?
One Year Quality Warranty And Life-time Technical Support. If any parts get damaged because of

quality within 12 months after shipping date. We will send new parts to replace right away.

6. Can you make suspended platform with our brand?
Yes.

7. How you arrange shipment?
By Sea/By Train/By Air or By Express,15-20days Against Deposit.
