SPECIFICATIONS

Air delivery: 1.5-110(m3/min)

Brand: sparta

Color: blue

Cooling: Air Water

Dimension(L*W*Hmm): 750x420x730mm

Engine: Electirc Motor

MOQ: 1 PC

Model: ST-2T

Power: 1PH/220V/50Hz

Product name: Freeze dryer

air capacity: 2.5m³/min

brand name: sparta

configuration: Stationary

core components: PLC,Pressure Vessel,Engine,Motor

dimension(l*w*h): 750x420x730mm

gas type: Air

lubrication style: Lubricated

machinery test report: Provided

model number: ST-2T

place of origin: Shandong, China

power source: AC Power

type: Screw

video outgoing-inspection: Provided

voltage: 0.2-1.0Mpa

warranty: 1 Year

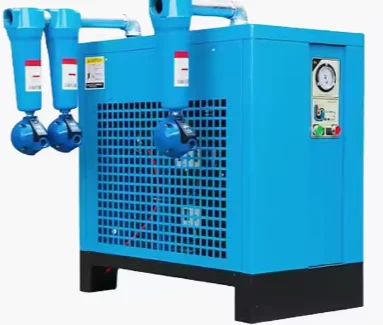

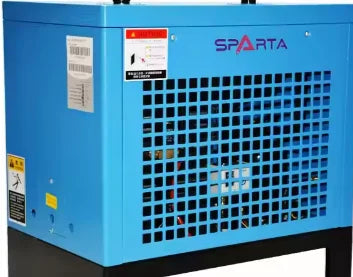

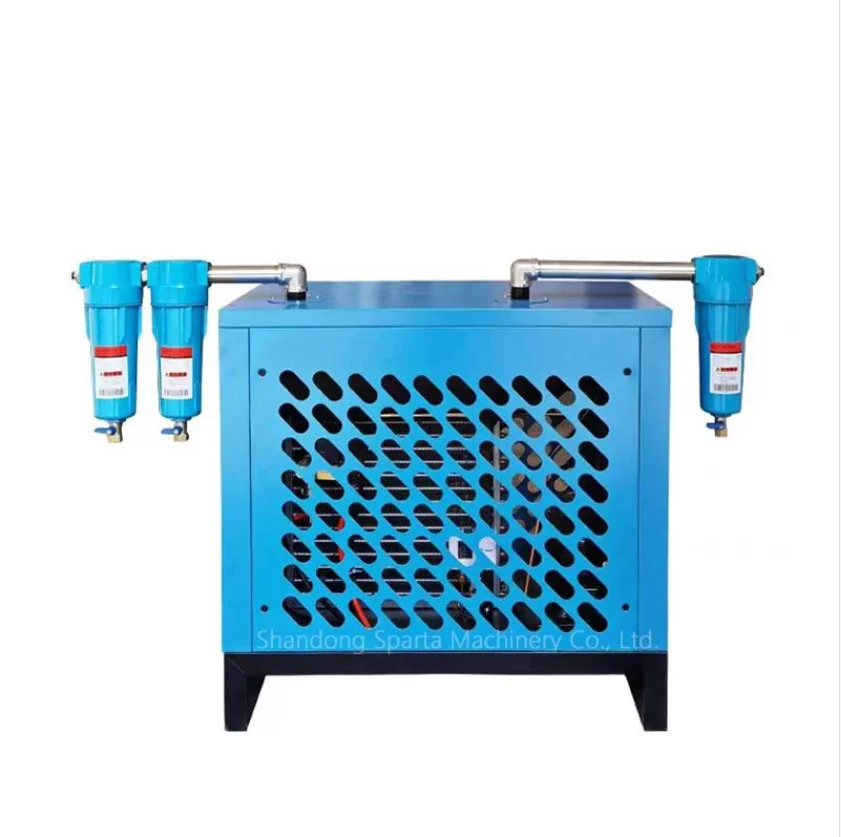

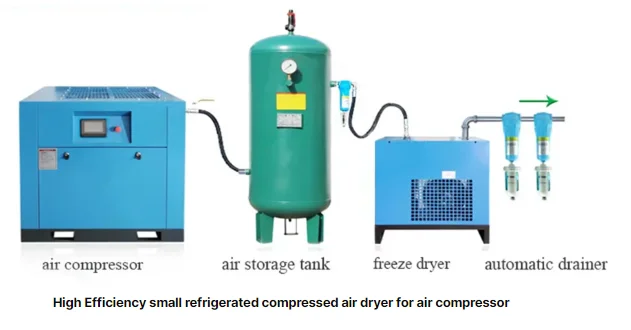

Refrigerated dryer for air compressor

Features

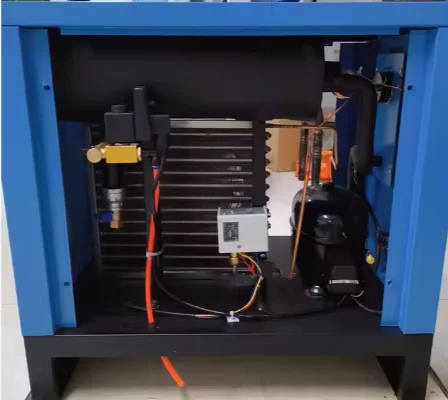

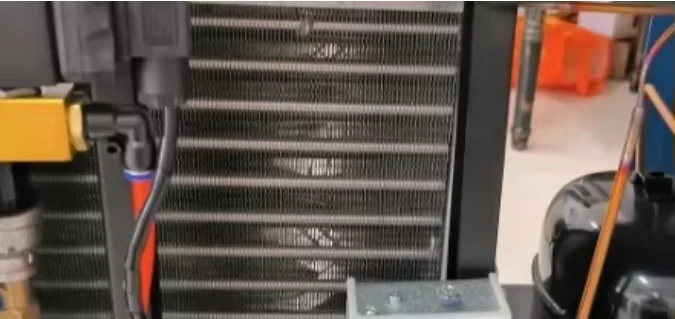

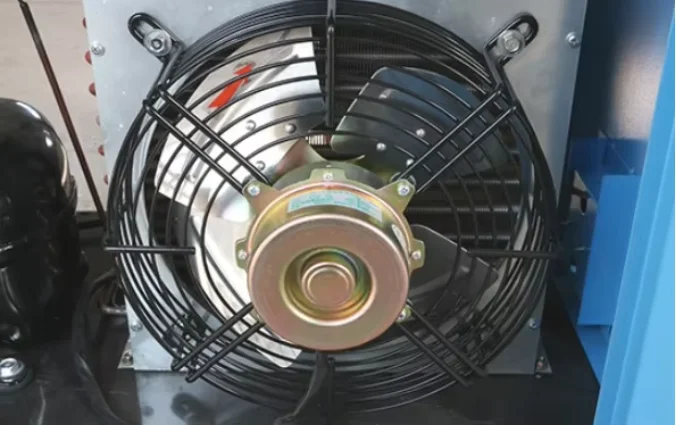

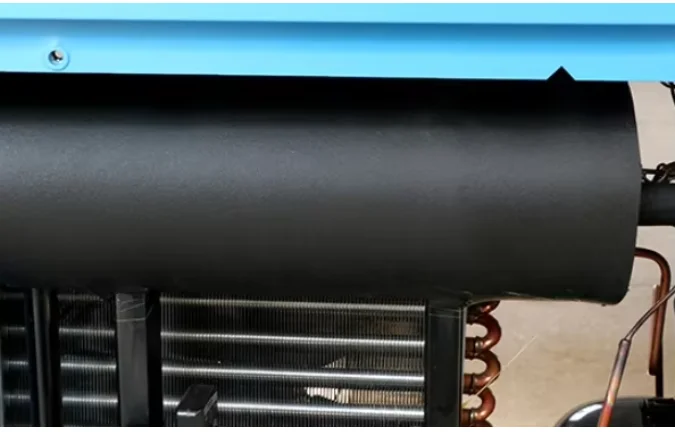

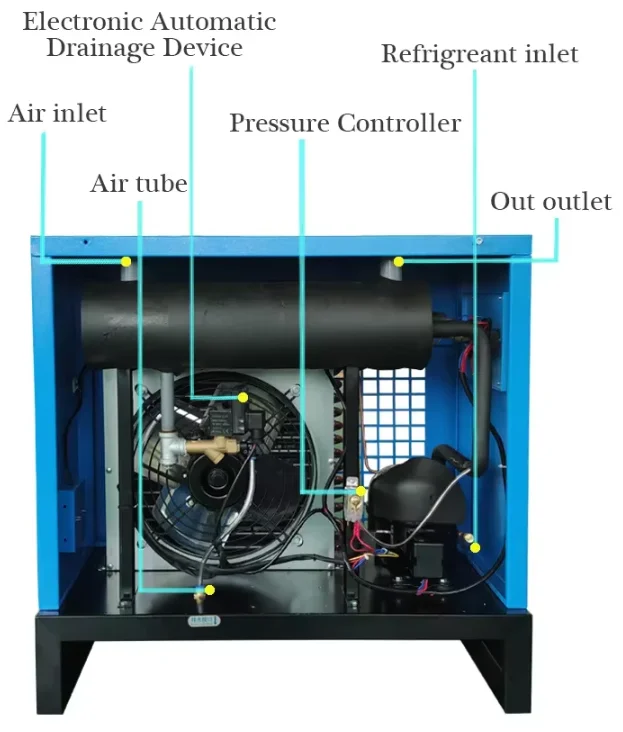

1.More stable overall performance Using an external rotor fan with stronger wind power can improve the efficiency of condensation and pre-cooling, making the entire unit operate more reliably and steadily. 2.Better gas environment With a unique heat exchanger design, heat exchange efficiency is greatly improved, reating a more superior gas environment. 3.High efficiency and long lifespan The core component, the compressor, adopts a well-known brand, which results in excellent refrigeration and a longer lifespan. 4.Reasonable design and small footprint The novel design is aesthetically pleasing, with a compact structure and a small footprint. The layout is reasonable, making it easy to use and maintain.

Factors to consider For Refrigerated dryer for air compressor

Temperature control: Choose equipment that can accurately control the temperature of cold traps and shelves to ensure that the material is dried at the optimal temperature. Vacuum degree: Vacuum degree is one of the key factors affecting drying efficiency and quality, so you should choose equipment with stable and adjustable vacuum degree. Heating method: Understand the heating method of the equipment, such as radiation heating, conduction heating or microwave heating, and choose the heating method that best suits the characteristics of your material. Automation degree: Consider the automation degree of the equipment, including automatic temperature control, automatic drainage, automatic defrosting and other functions to improve production efficiency and reduce manual operations.

Temperature

Normal Temperature

High temperature

Suitable for various industries

Screw air compressor maintenance

The first maintenance should usually be performed after 500 to 1,000 hours of operation.

Oil change: The initial oil in the compressor should be replaced;

Replace filters: The oil filter and air filter should be checked and replaced if necessary;

Belt and fastener inspection: During initial maintenance, belts should be checked for proper tension and signs of wear. Fasteners and connections should also be checked to ensure they are secure and tight to prevent leaks and maintain efficiency.

Cooling System : Whether the compressor uses air or oil cooling, the system should be checked to ensure there is no blockage or buildup to ensure the compressor remains at optimal operating temperature.

Screw air compressor maintenance

The first maintenance should usually be performed after 500 to 1,000 hours of operation. 1. Oil change: The initial oil in the compressor should be replaced; 2. Filter replacement: The oil filter and air filter should be checked and replaced if necessary; 3. Belt and fastener inspection: During the first maintenance, the belt should be checked for proper tension and signs of wear. 4. Check fasteners and connections : To ensure that they are firm and tight to prevent leakage and maintain efficiency; 5. Cooling system inspection: Whether the compressor uses air or oil cooling, the system should be checked to ensure that there is no blockage or accumulation to ensure that the compressor is maintained at the optimal operating temperature.

Accept customization

Sparta brand has various types of compressors, mobile industrial compressors, etc. With Air tank, low energy consumption, high efficiency

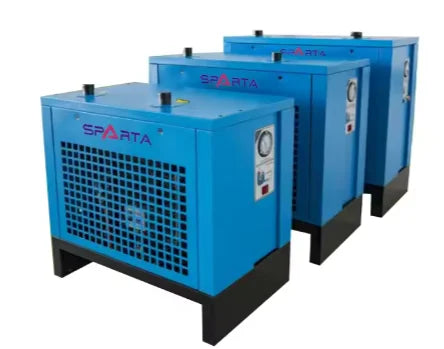

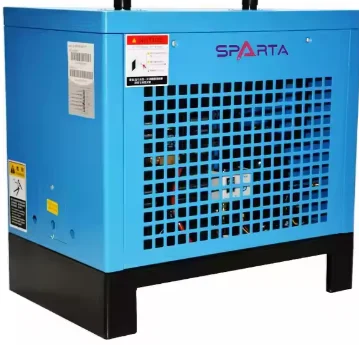

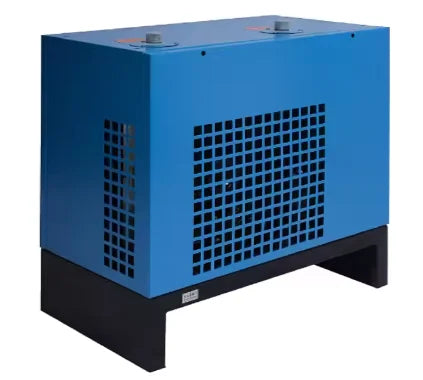

Freeze dryer

Model	Working Pressure	Compressor power	Power	Air Delivery	Dew Point	Dimension(mm)
ST-1T	0.2-1.0Mpa	0.5KW	1PH/220V/50Hz	1.5m³/min	2-10℃	665x425x560
ST-2T	0.2-1.0Mpa	0.7KW	1PH/220V/50Hz	2.5m³/min	2-10℃	750x420x730
ST-3T	0.2-1.0Mpa	0.9KW	1PH/220V/50Hz	3.5m³/min	2-10℃	800x440x800
ST-5T	0.2-1.0Mpa	1KW	1PH/220V/50Hz	5.5m³/min	2-10℃	923x500x910
ST-6T	0.2-1.0Mpa	1KW	1PH/220V/50Hz	6.5m³/min	2-10℃	923x500x910
ST-8T	0.2-1.0Mpa	1.6KW	1PH/220V/50Hz	6.5m³/min	2-10℃	995x585x1080
ST-11T	0.2-1.0Mpa	2KW	1PH/220V/50Hz	8.5m³/min	2-10℃	1125x625x1045
ST-1G	0.2-1.0Mpa	0.7KW	1PH/220V/50Hz	1.6m³/min	2-10℃	750 x 420 x 730
ST-2G	0.2-1.0Mpa	0.9KW	1PH/220V/50Hz	2.5m³/min	2-10℃	800 x 440 x 800
ST-3G	0.2-1.0Mpa	1KW	1PH/220V/50Hz	3.8m³/min	2-10℃	923 x 500 x 910
ST-5G	0.2-1.0Mpa	1.2KW	1PH/220V/50Hz	5.5m³/min	2-10℃	923 x 500 x 910
ST-6G	0.2-1.0Mpa	1.6KW	1PH/220V/50Hz	6.8m³/min	2-10℃	995 x 585 x 1080
ST-8G	0.2-1.0Mpa	1.8KW	1PH/220V/50Hz	8.5m³/min	2-10℃	995 x 585 x 1080
ST-11G	0.2-1.0Mpa	2KW	1PH/220V/50Hz	11.5m³/min	2-10℃	1125 x 625 x 1045
ST-13G	0.2-1.0Mpa	3KW	3PH/380V/50Hz	13.5m³/min	2-10℃	1125 x 625 x 1045
