SPECIFICATIONS

Alternator: China Stamford,original Stamford, Marathon, Leroy Somer,Mecc Alte

Brand Name: Emean

Certificate: CE,ISO9001,SONCAP,CIQ

Control panel: LCD Digital Display

Cooling System Type: Water Cooling System

Efficiency: 95%

Engine Brand: Weichai,Yuchai

Engine cylinder: 2L,3L,4L,6L,12V,16V cylinde

Engine type: Water Cooled Diesel Engine

Frequency: 50/60HZ

Fuel tank: 8-10hours, 12hours, 24hours

Generator type: open,silent,trailer,containerized

Model Number: VG-R14

Options: ATS,Battery Charger,Current Meter,Digital Module,Mobile Trailer,Rainproof Canopy,Remote Control,Soundproof Canopy,ATS/Container/Trailer

Package: plywood,plastic film packing

Place of Origin: Fujian, China

Protection: Automatic Voltage Regulation,Low Oil Shutdown,Overload Protection,Under-Voltage Protection

Rated Current: Depends on voltage

Rated Voltage: 110v/120v/220v/230v/240/380V/400V/415V

Speed: 1500/1800rpm

Starting System: Auto Start,Recoil Start,Remote Start,12V DC Electric Start,24V DC Electric Start

Type: Canopy Type,Container Type,Mobile Type,Open Frame,Portable Type,Silent Type,Super Silent Type,Trailer Type

Warranty: 2 years quality warranty

Emean company owned by Fujian Epos electric machinery co., Itd and Fuzhou Emean Electric Machinery Co.,Ltd LTD that is a high-techenterprise integrating R&D, production and sales, and has always promoted high-quality power products to the international market. The products are widely sold more than 102 countries and regions such as Southeast Asia South America Middle east Africa and Europe. Etc

Product parameters

We have power from 10kw-2000kw, any interesting please contact with us to quote the best price for you

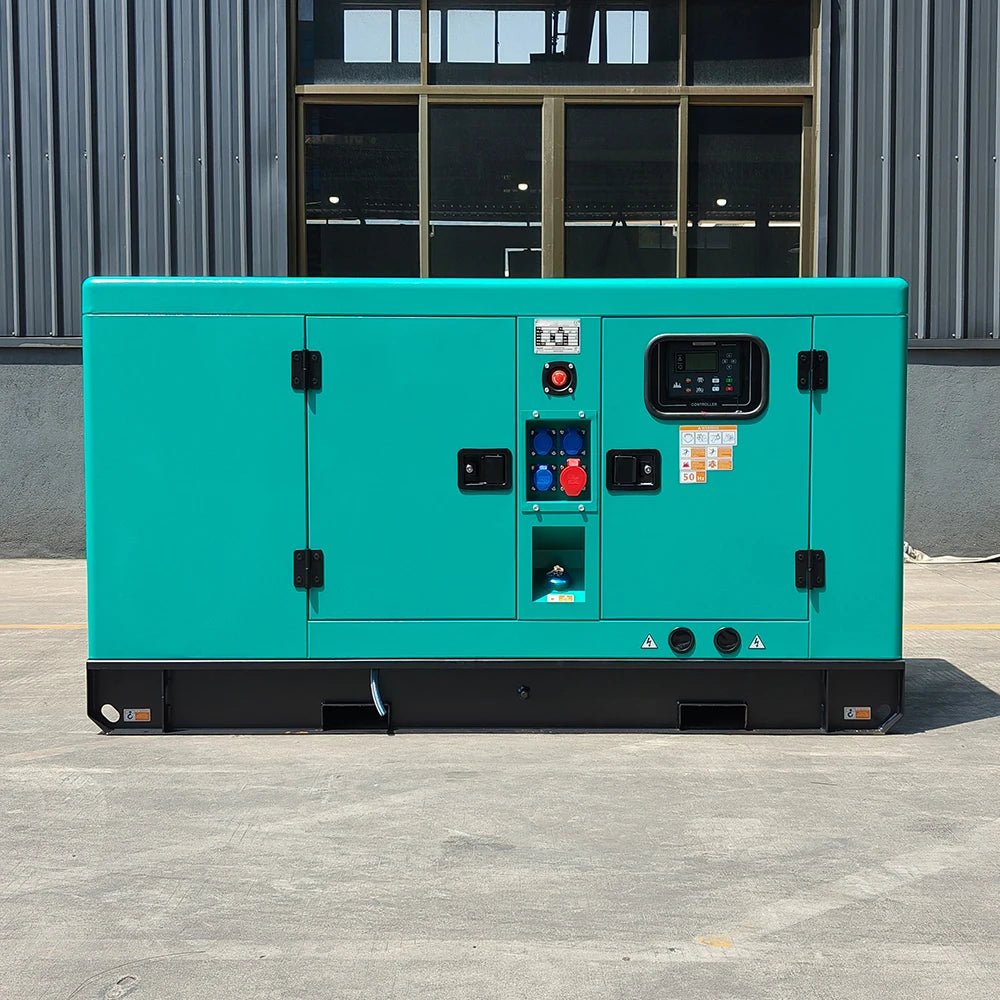

Details Genset	GenSet Model	VG-R14	Type	silent(optional open)
		Frequency (Hz)	50/60	Speed rpm	1500/1800
		N.W (kg)	650	Size (L*W*H)mm	1700*900*1150
		Fuel Con.(L/H)	4.1	Fuel capacity tank	25.7
		Running time (H)	8	Sound decibel (DB)	70-90
Details Engine	Brand	Yangdong(Optional Cummins, Weichai,Yuchai, etc.)
		Model	ZH2015D	Fuel	Diesel
		Cylinder	2	Cooling system	water
		Starter	electric	Displacement(L)	1.81
Details Alternator	Brand	China Stanford, original Stanford, Marathon, Lehua Somer, etc.
		Model	VG-164C	Type	Brushless sel-excited
		Pure copper content	100%	Efficient	92%
		Radiator	40℃-50℃	Battery	Electric start 24V charger
3 phase power	Rated power	10Kw/12.5Kva	Rated voltage	230V/380V/400V/415V
		Standby power	11Kw/14Kva	Rated current	31A/19A/18A/17A
Optional single phase

Product Configuration and Details

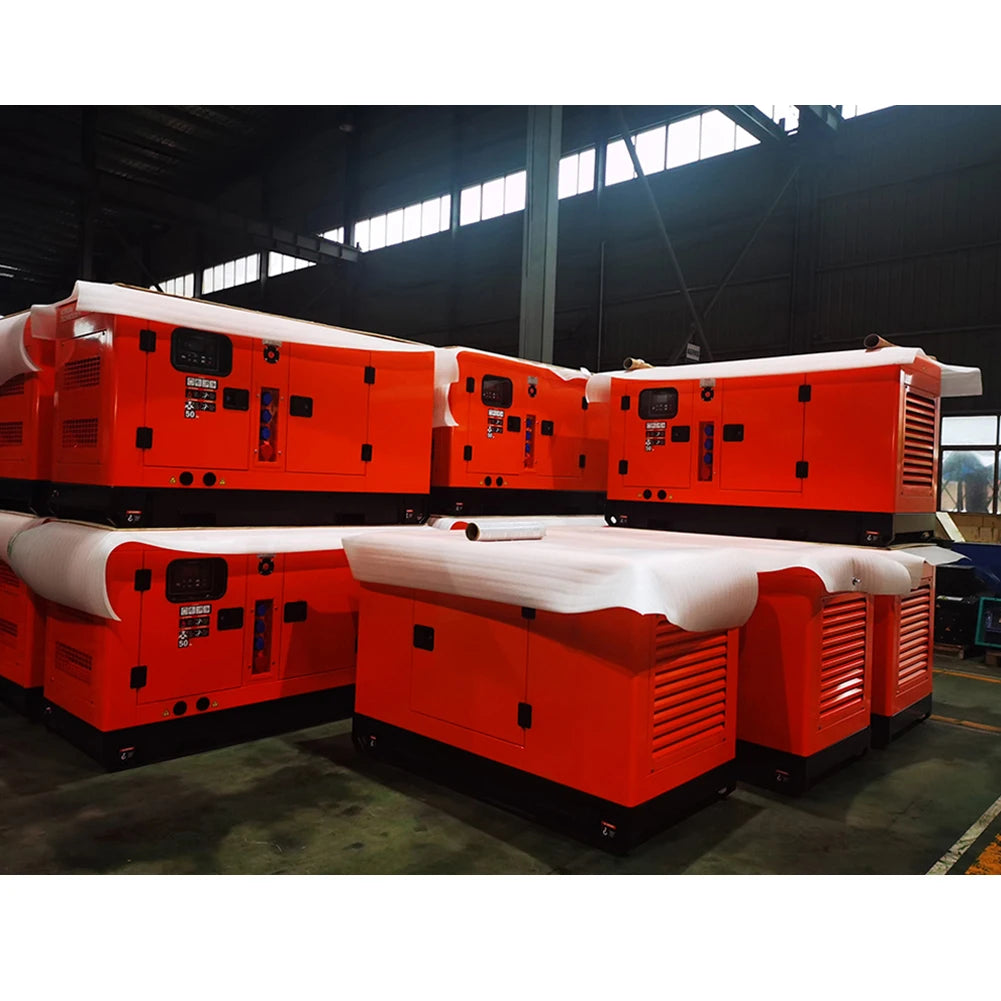

Factory Service

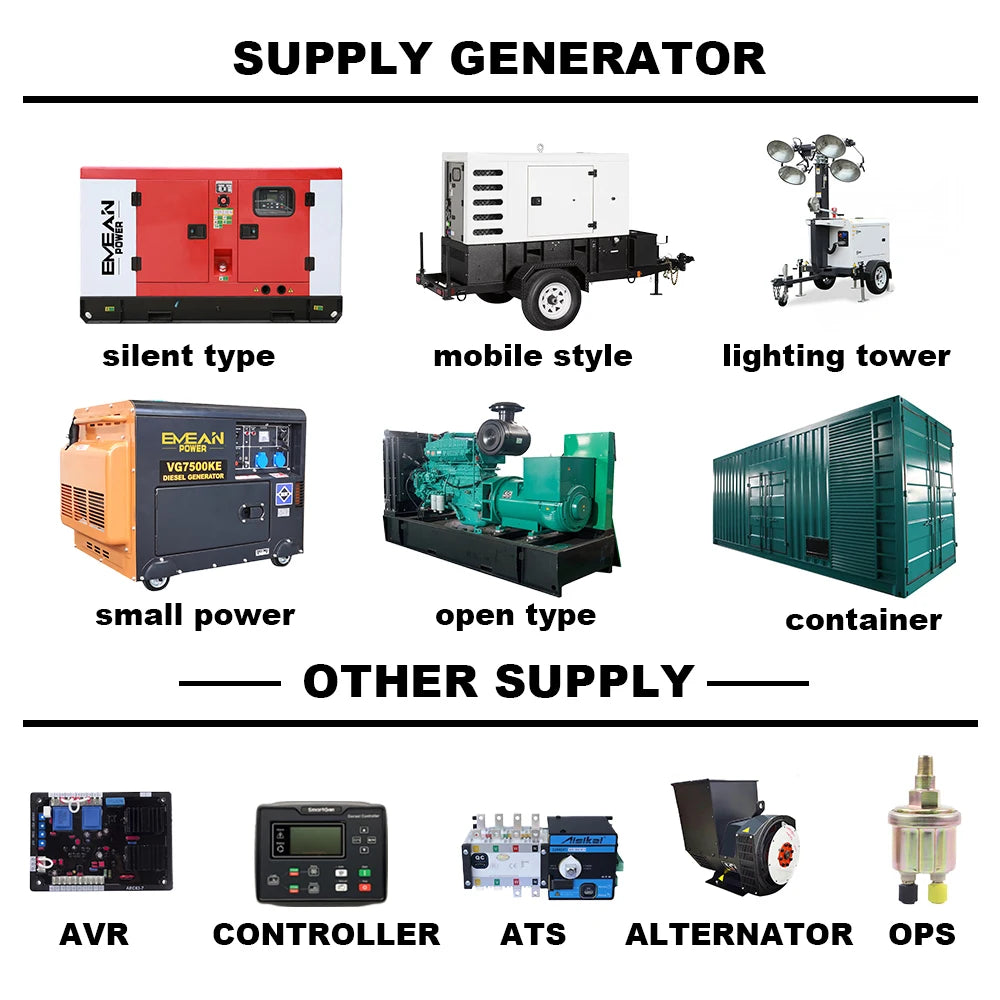

Open type

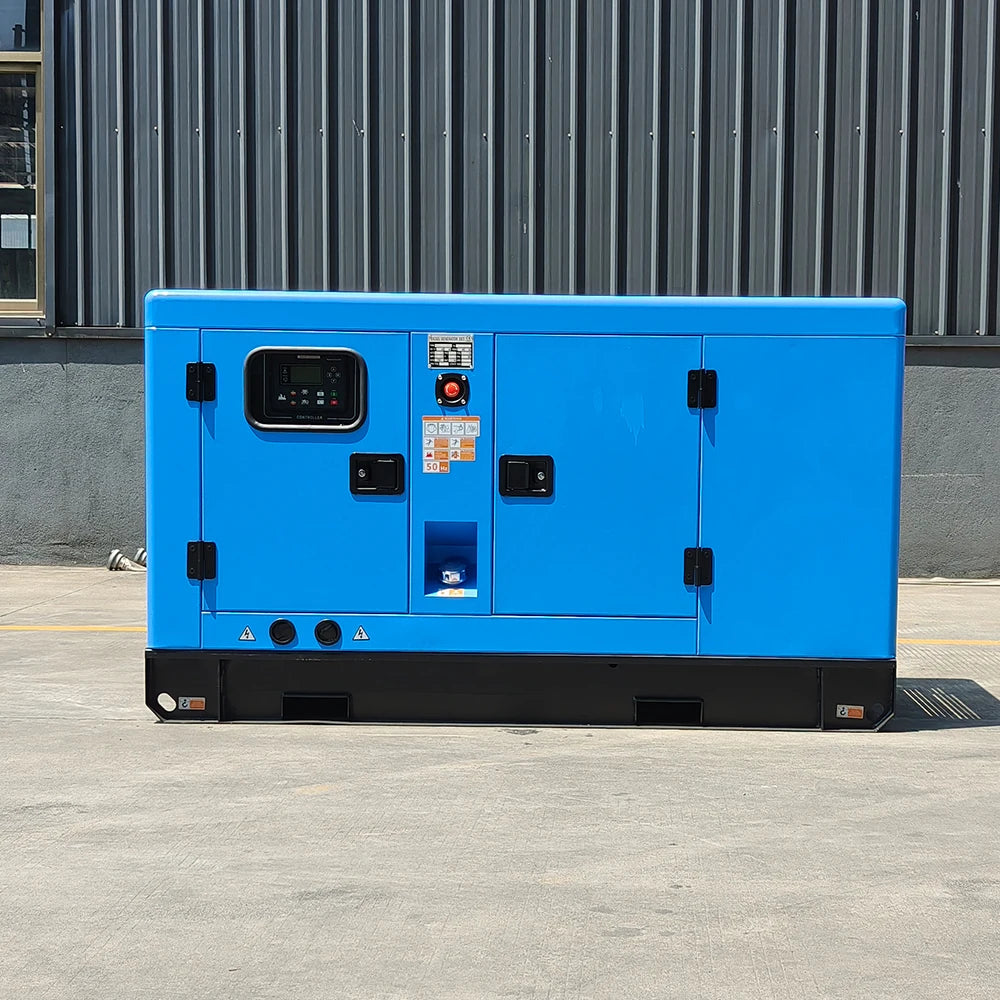

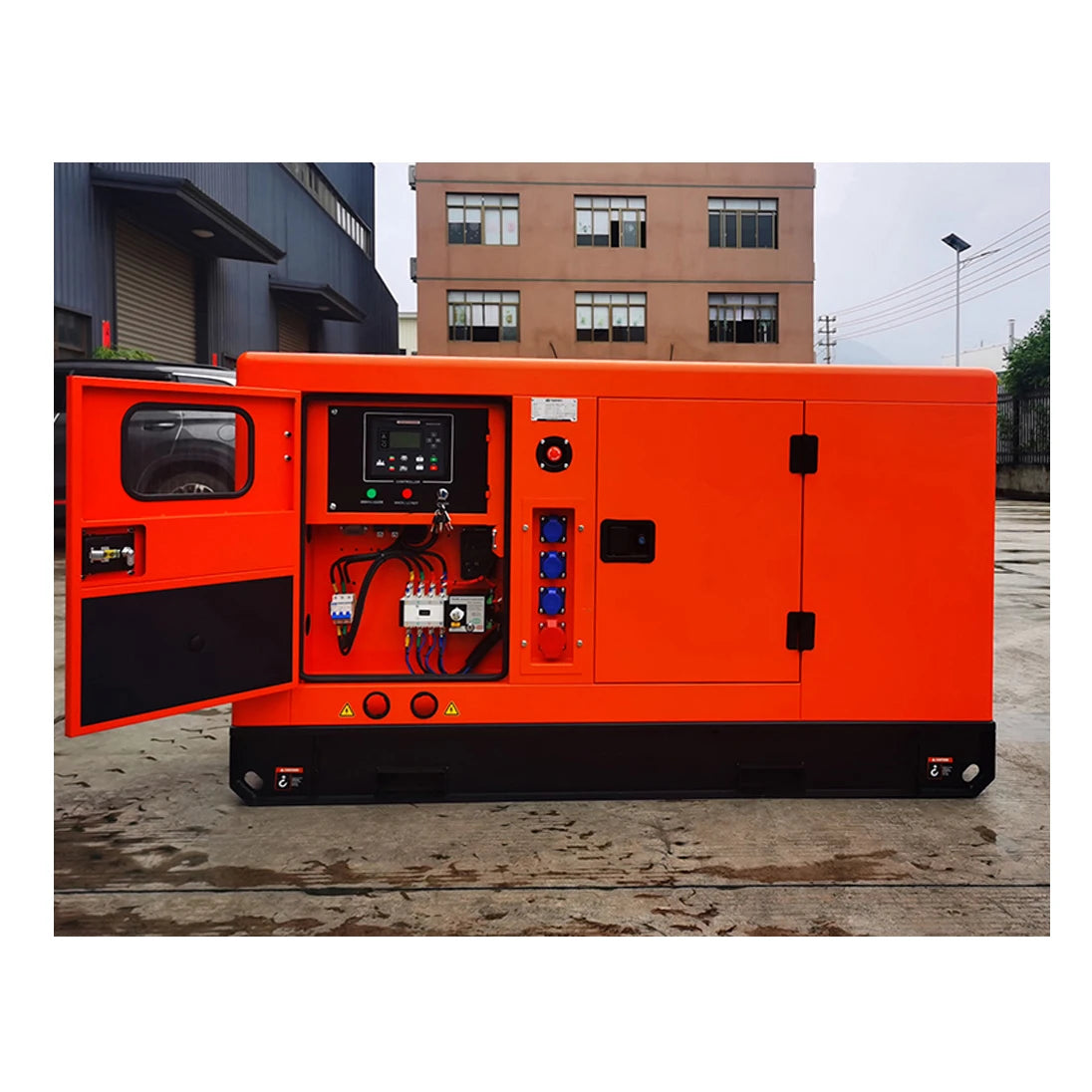

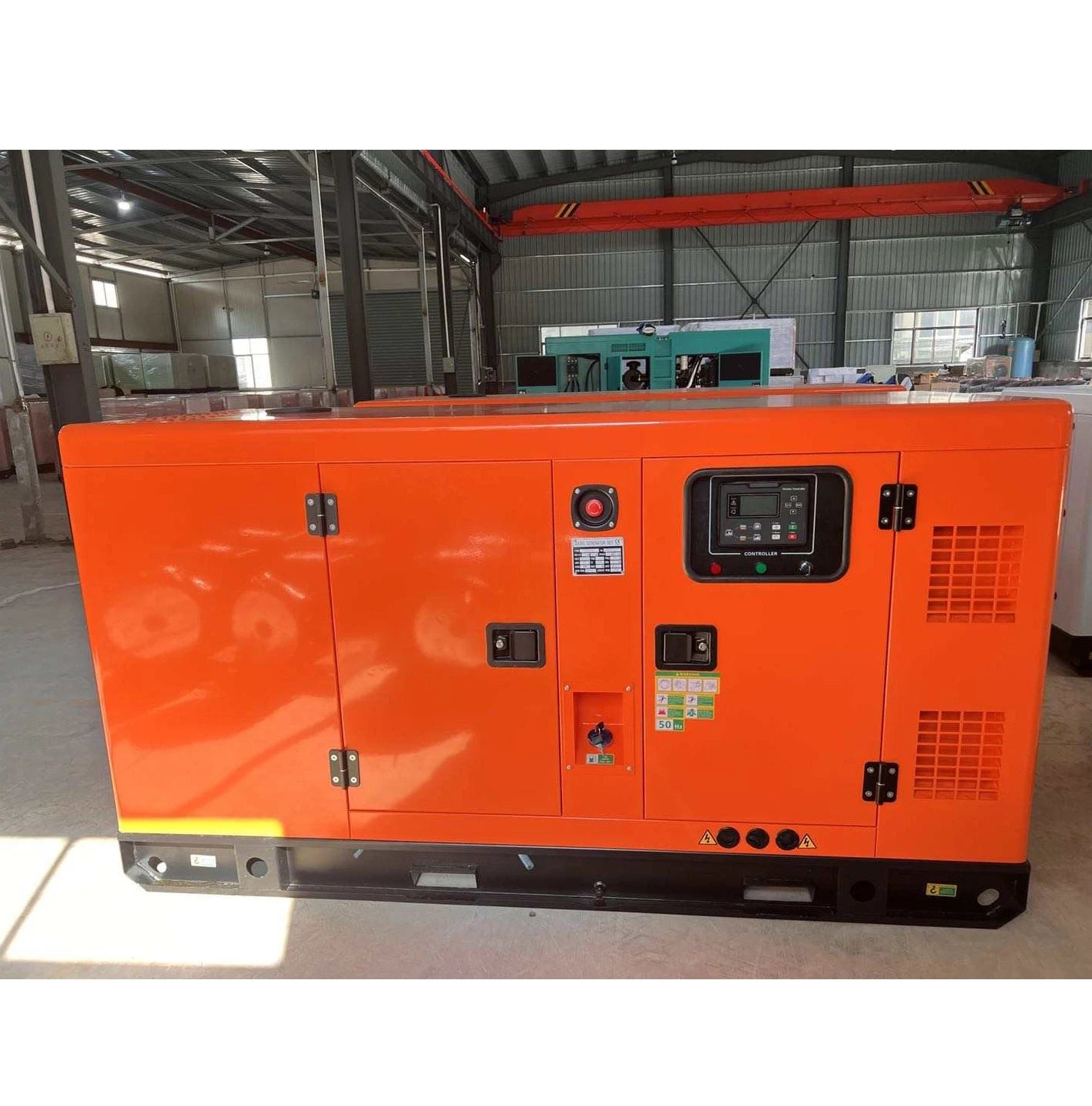

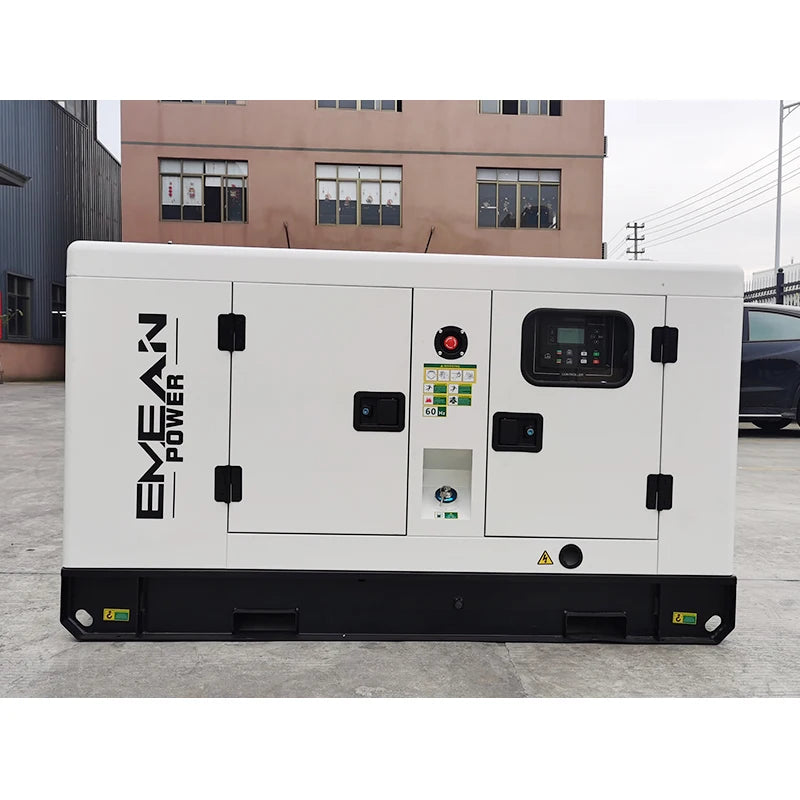

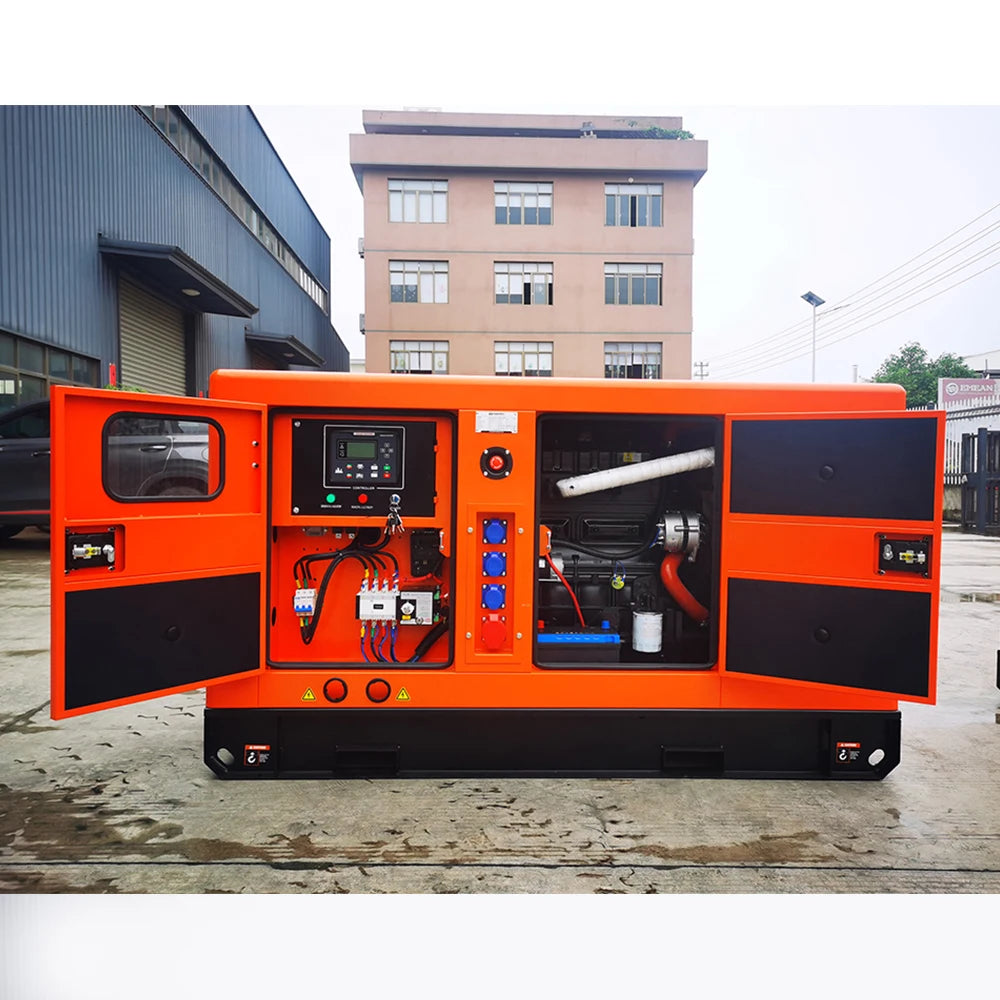

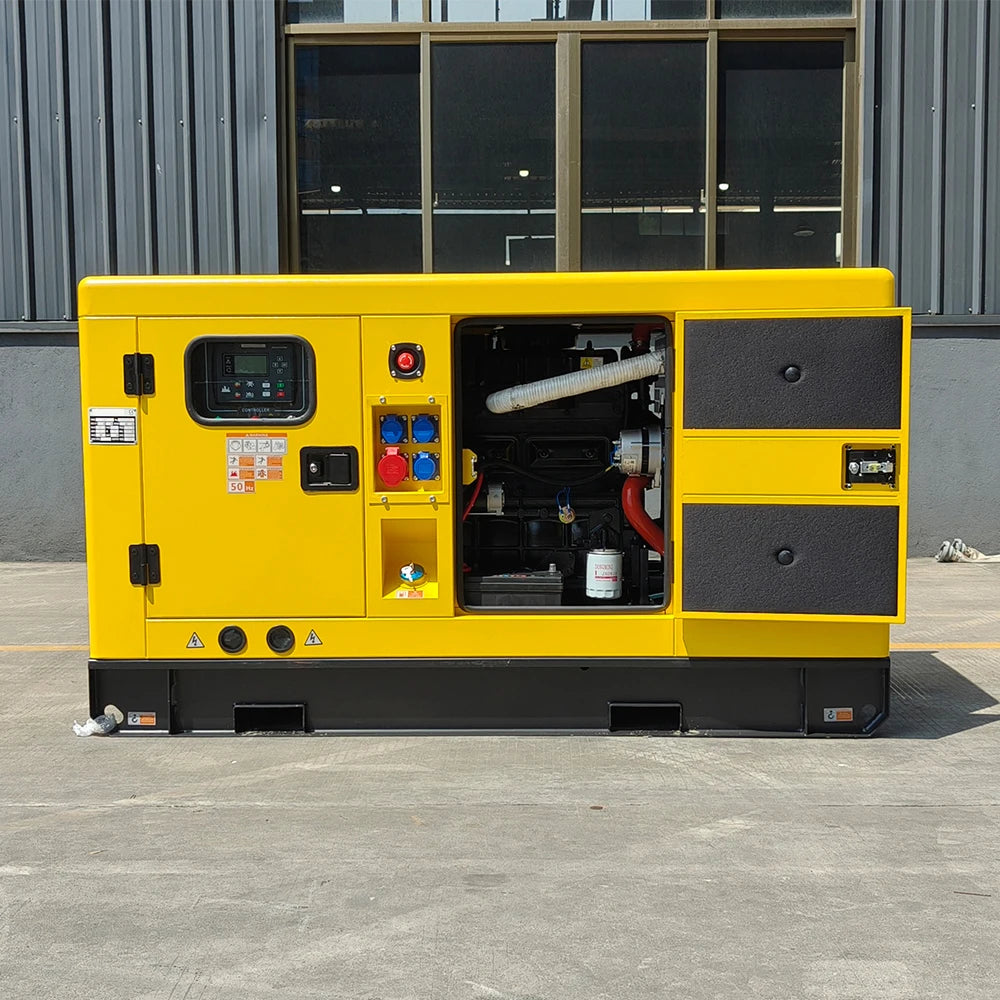

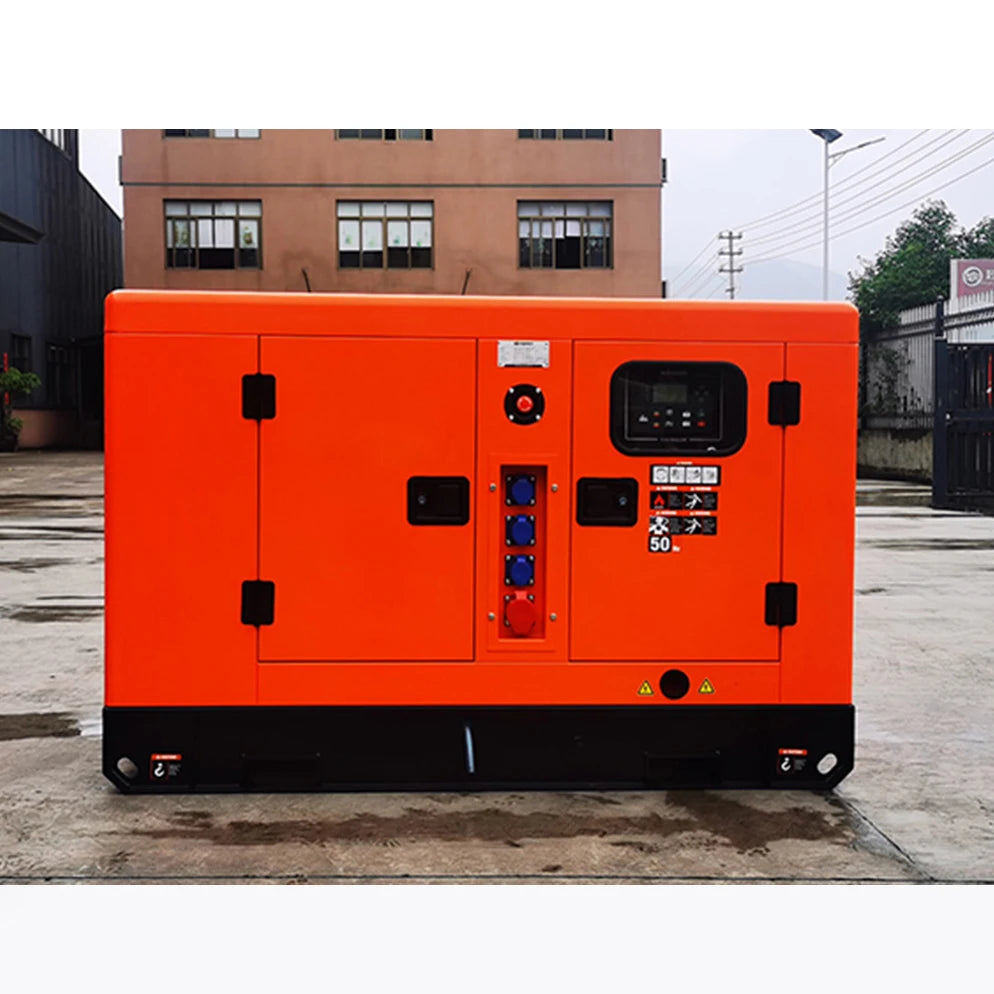

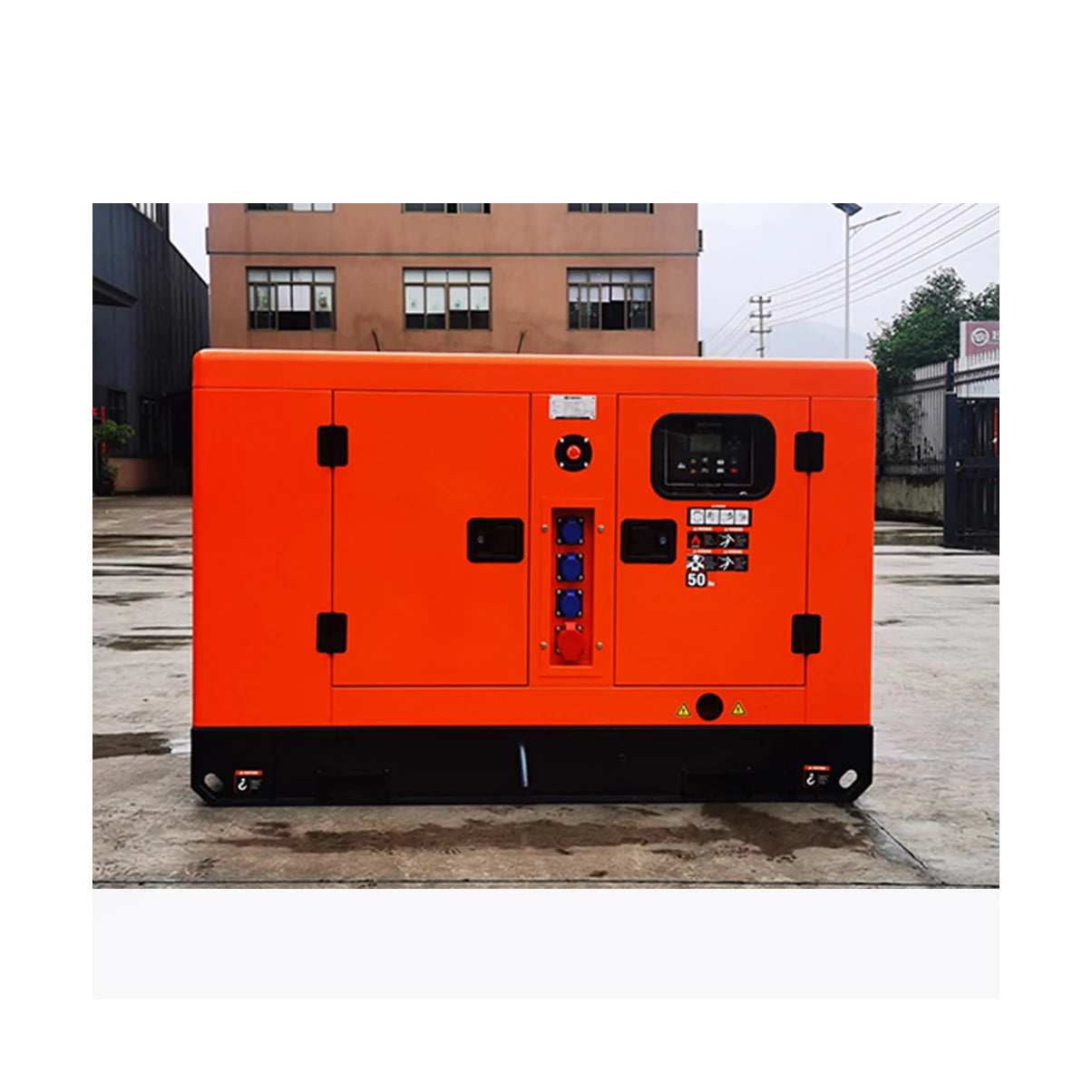

Silent type

Mobile stye

Silent Technology

HIGH-DENSITY WAVE SOUND-ABSORBING COTTON

1. When sound waves pass through cotton, they are reflected by countless fibers,superimposed on each other, and collide.The sound
wave energy is converted into heat energy, so that the intensity of thesound wave is weakened and the sound disappears.2. Mute
sponge Mute sponge, thickness 33 mm

Customized Product

BRUSHLESS ALTERNATOR	ENGINE
Maintenance-free, very stable operation and voltage, low noise, suitable for use with high precision equipment and electrical equipment.	Cooperate with Cummins, Perkins, Deutz Honda and many other famous brand engines to provide you with global warranty services.

CORROSION RESISTANT RADIATOR	SOLID DAMPING FOOT	AIR FILTER
High quality and low noise radiators, with anti-rust paint to add, ensure that your machine will never old, mildew, corrosion resistance, safety.	solid damping foot is stamping forming by 3-5 mm high strength steel plate, with metal cover to protect rubber.	piston, piston ring, valve and valve seat with more than 99.5% of original filtration efficiency

Digital control panel	ELECTRONIC COMPONENTS	THICKENED BENDED UNDERFRAME
use of three remote control unit control panel,integrated digital, intelligen't technology, compact structure, simple wiring, high reliability.	Cooperate with well-known electronic component manufacturers such as Delixi and Chint to provide customers with long-life,high-quality and very accurate machines	5MM thickened bent chassis, double-layer painting, improve corrosion resistance. Prevent the unit chassis from being corroded
