SPECIFICATIONS

Advantage: Easy Installation

After-sale Service: Online Technical Support,Onsite Installation,Onsite Training,Onsite Inspection,Free Spare Parts,Return and Replacement

Application: Office Building

Brand Name: hx

Color: Yellow

Delivery time: 10-15 Days

Design Style: Traditional

Inner tube: 48.6

Material: Q235

Model Number: 48.6*48.6

Place of Origin: Hebei, China

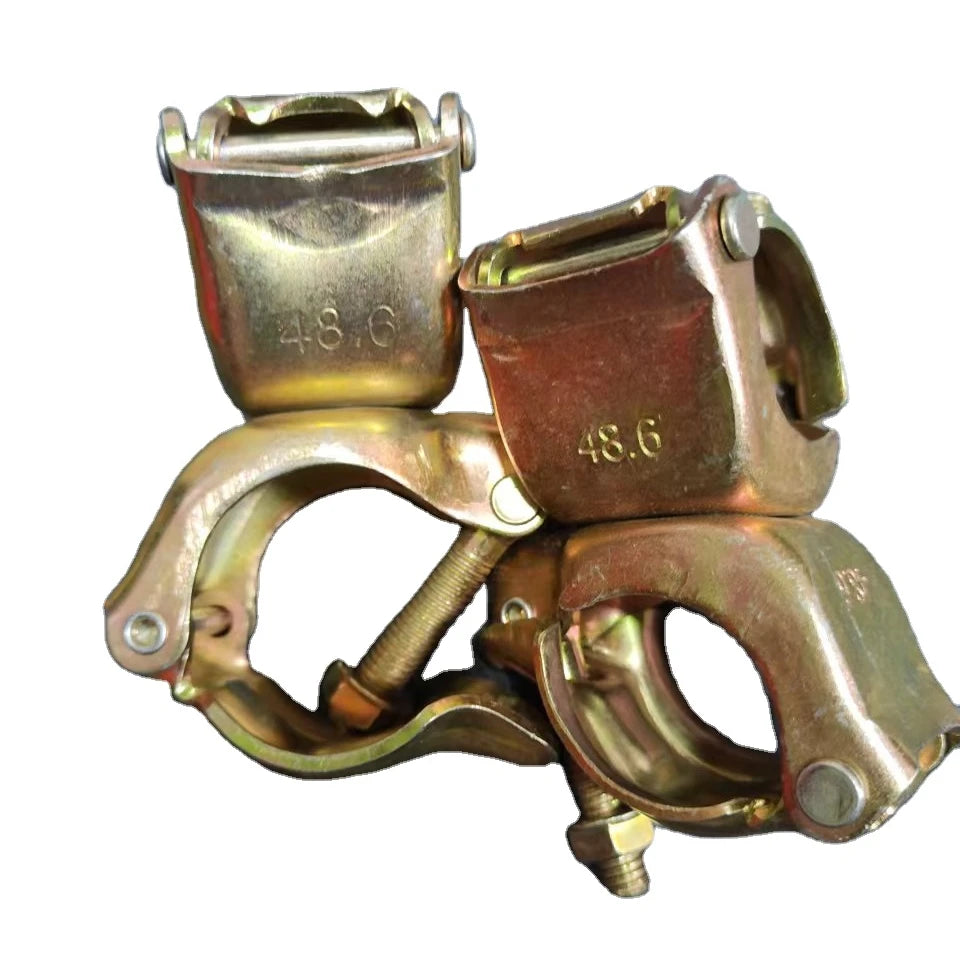

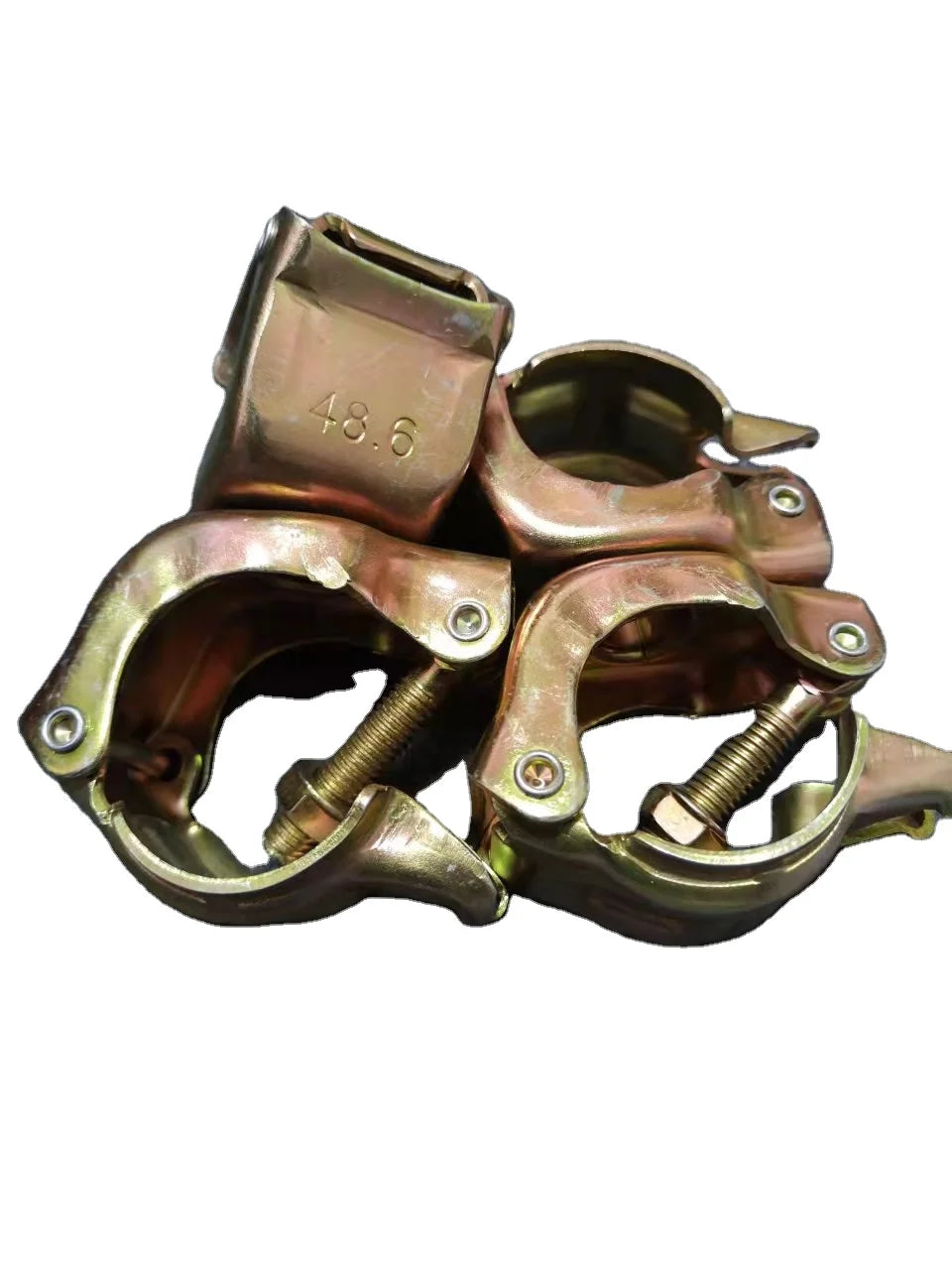

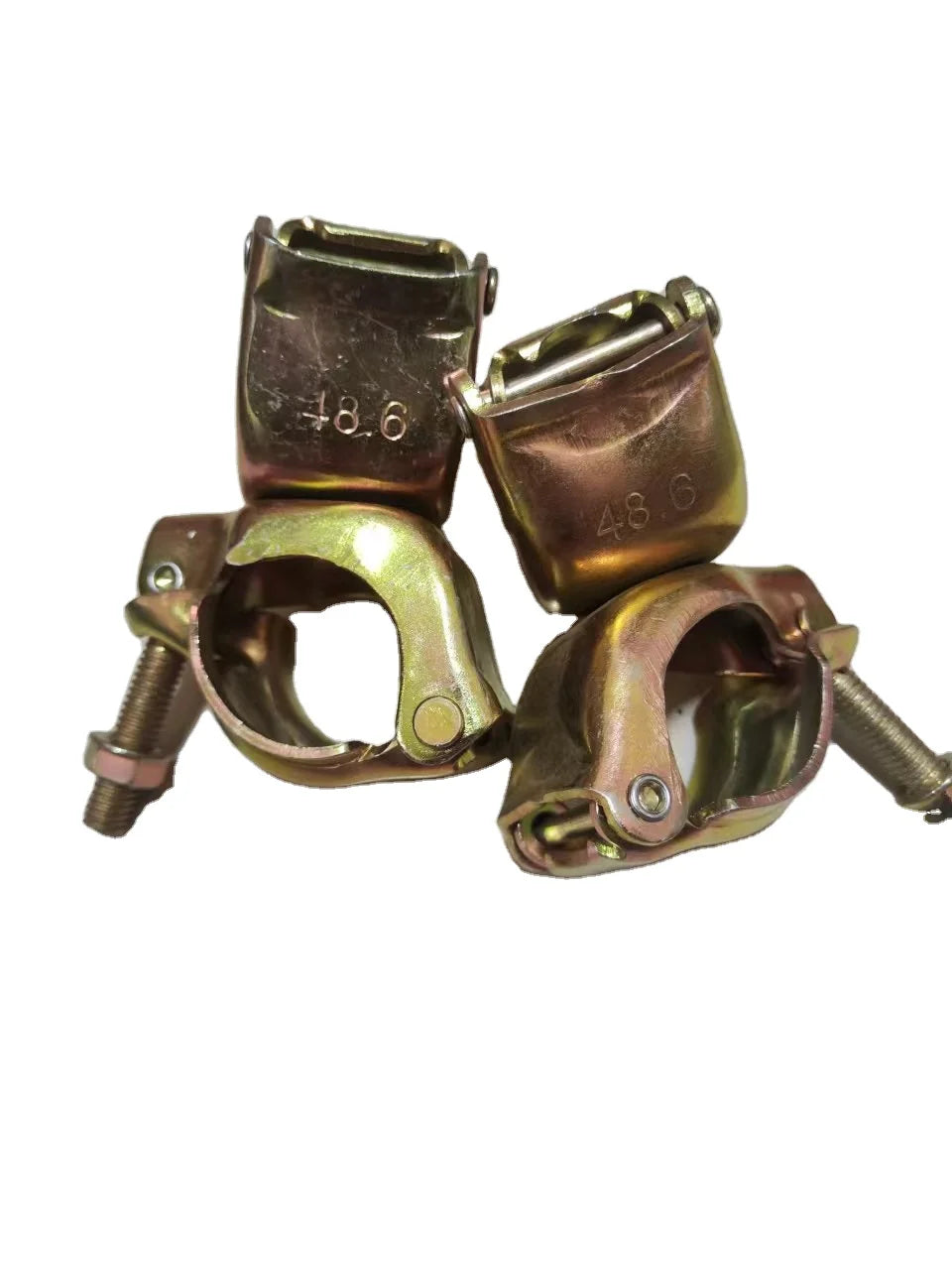

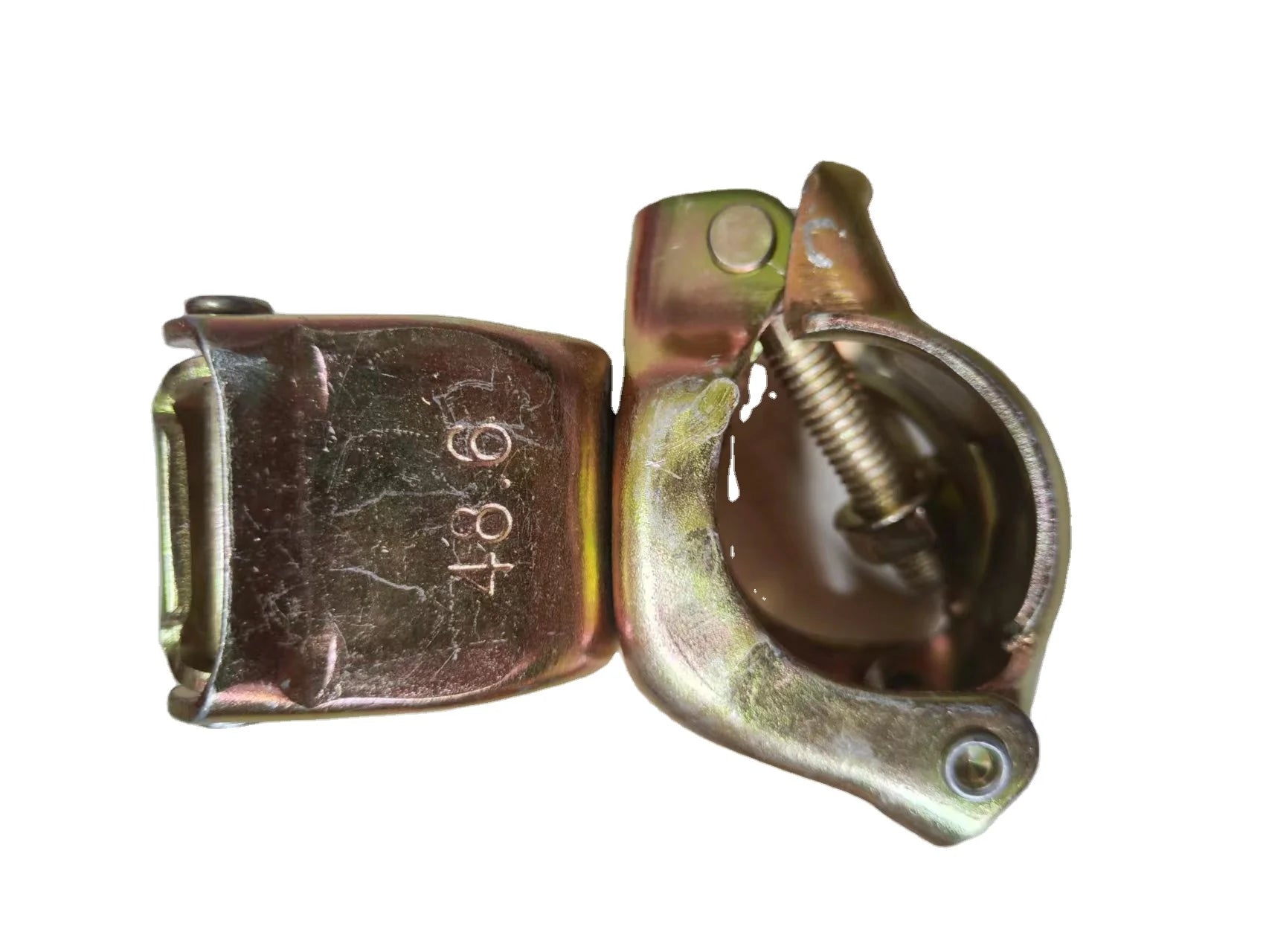

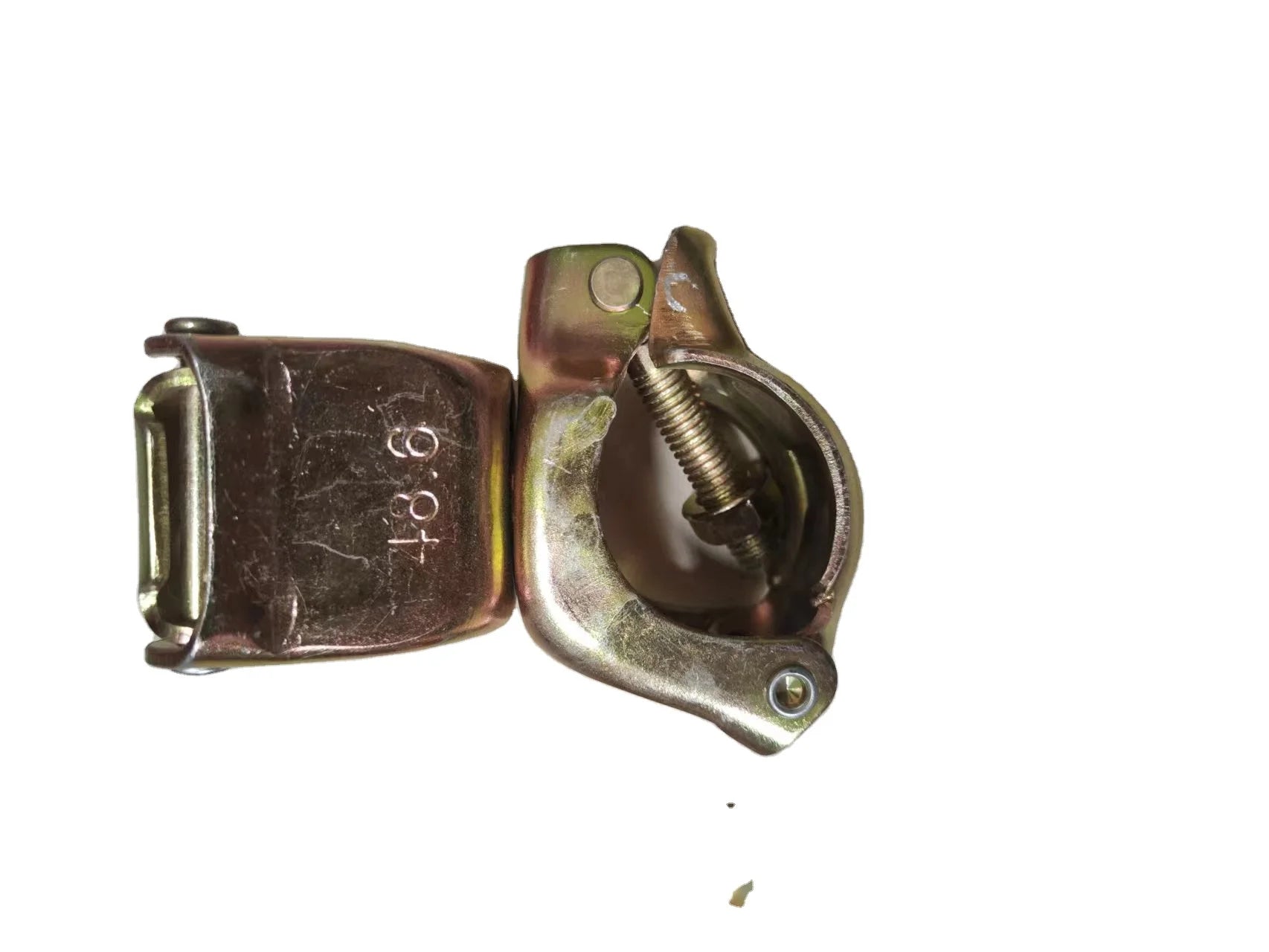

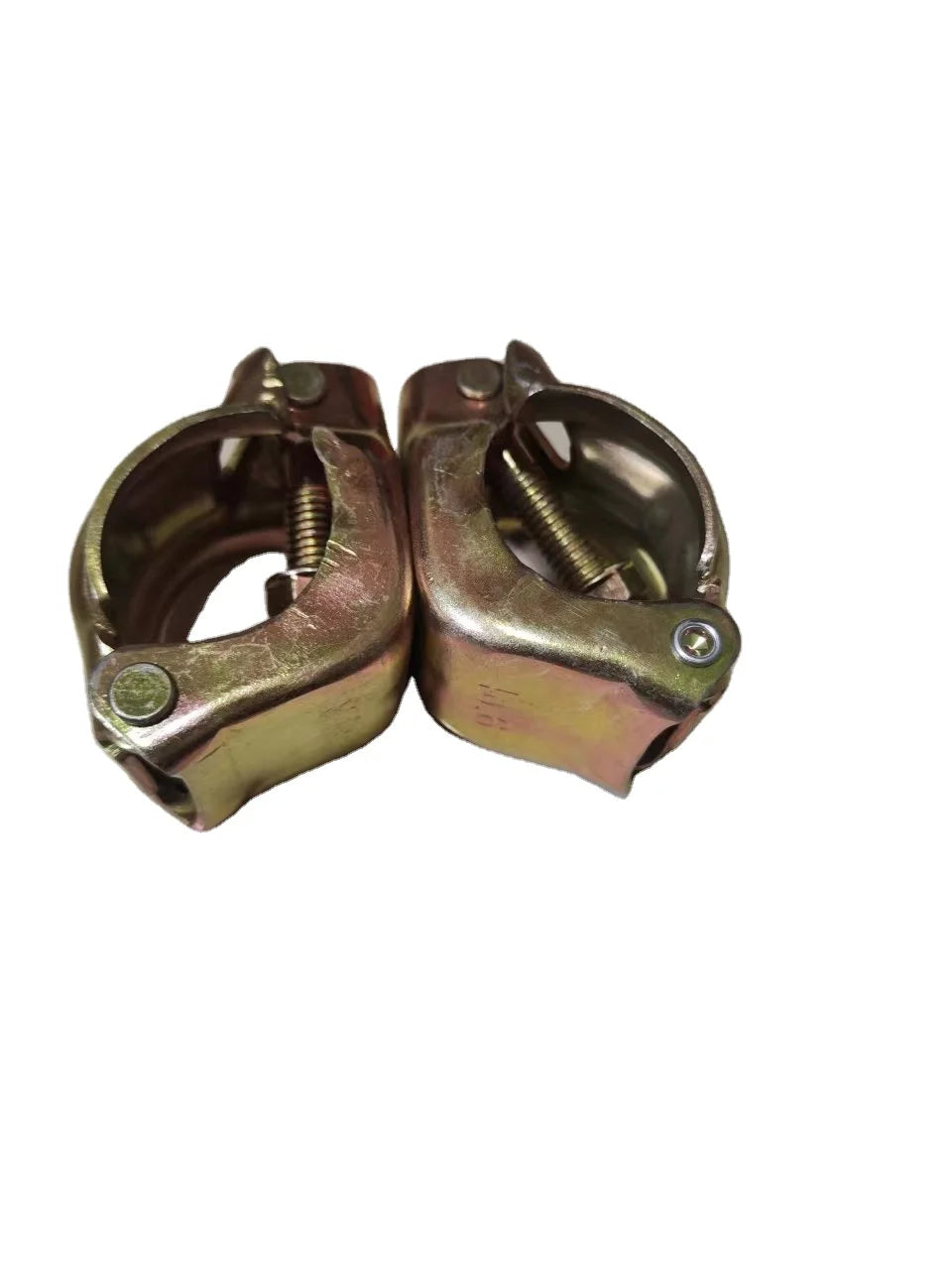

Product name: clamp

Project Solution Capability: graphic design

Scaffolding Part Type: Scaffolding Couplers

Surface: Galvanized Coated

Surface treatment: Galvanized

Usage: Concrete Construction Support

Warranty: 1 Year

Weight: 650g 600g

Product Description

Name	surface treatment	Weight (kg)	Thickness	Packing
110 Degree pressed double scaffolding coupler/clamp fixed and swivel 48.6*48.6mm	Electro-Galvanized	0.66	3mm	30PCS/BOX 72BOXES/PALLET
					0.65	2.75*3mm
					0.63	2.75*3mm
					0.62	2.75mm
					0.60	2.75*2.5mm
					0.58	2.5mm
					0.56	2.2mm
110 Degree pressed double scaffolding coupler/clamp fixed and swivel 48.6*48.6mm	Hot-Dipped Galvanized	0.67	3mm	30PCS/BOX 72BOXES/PALLET
					0.62	2.75mm
					0.58	2.5mm
90 Degree Pressed Double Scaffolding coupler fixed/swivel 48.6*48.6mm	Electro-Galvanized	0.66	3mm	30PCS/BOX,72BOXES/PALLET
					0.65	2.75*3mm
					0.63	2.75*3mm
					0.62	2.75mm
					0.60	2.75*2.5mm
					0.58	2.5mm
		Hot-Dipped Galvanized	0.68		3mm
					0.62	2.75mm
					0.59	2.5mm

Specification

fixed clamp 48.6*48.6
swivel clamp 48.6*48.6
clamp 48.6*60.5

Single Clamp 48.6

Packing & Delivery

30PCS/BOX

40PCS/BOX

48PCS/BOX

30BOXES/PALLET

60BOXES/PALLET

72BOXES/PALLET

Company Profie

Hebei xiaohu was established on 2000year ,We are a professional manufacture in Handan Hebei China .We major sale in China from
2000 year to 2015 year . From 2015 year ,We built our export department .So far we have exported to more than 20 countries
Our main products are construction formwork accessories, plastic products, c prulin machines, glass bottle ,cans and other
products. At any time, we believe that reputation and quality come first

FAQ

Our Advantage
1. All the scaffolding couplers in our factory are tested to resist corrosion having a complete zinc coating with chromate
passivation.

2.Additionally, all scaffolding couplers are supplied with fully captive nuts.

3.We operate a rigorous quality assurance policy.
