SPECIFICATIONS

After-sales Service Provided: On-line Support

Air delivery: 1.3~2.6m3/min

Application: General Industry

Certification: ISO CE

Cooling Method: Air or water cooling

Drive Mode: Direct driven(Coupling)

MOQ: 1 PC

Noise: 60-65dB

OEM: OEM Services Provided

Outlet size: G1-1/2"

Warranty of core components: 2 years

Weight (kg): 750

air capacity: 46-92Cfm

brand name: WINDBELL

configuration: Stationary

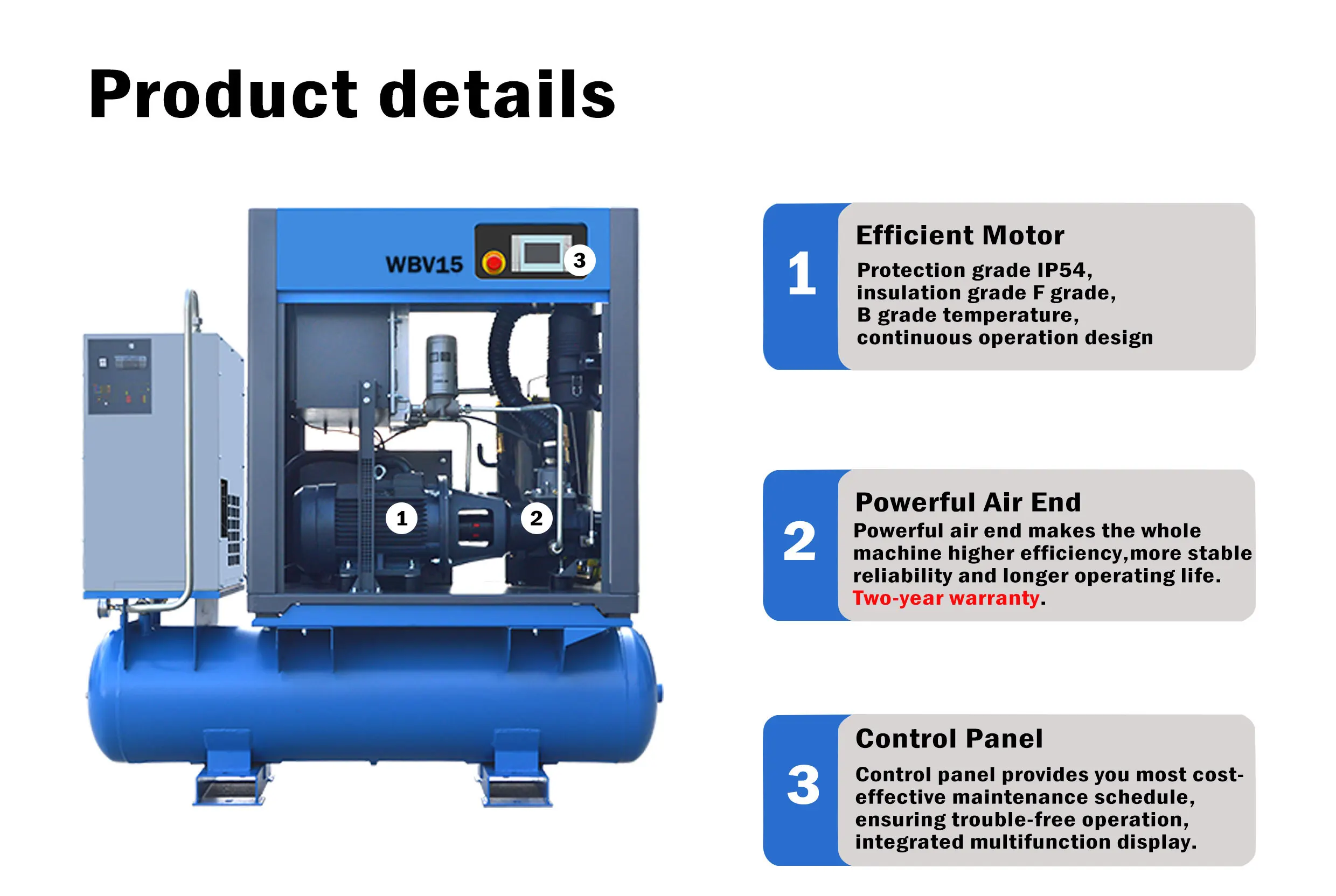

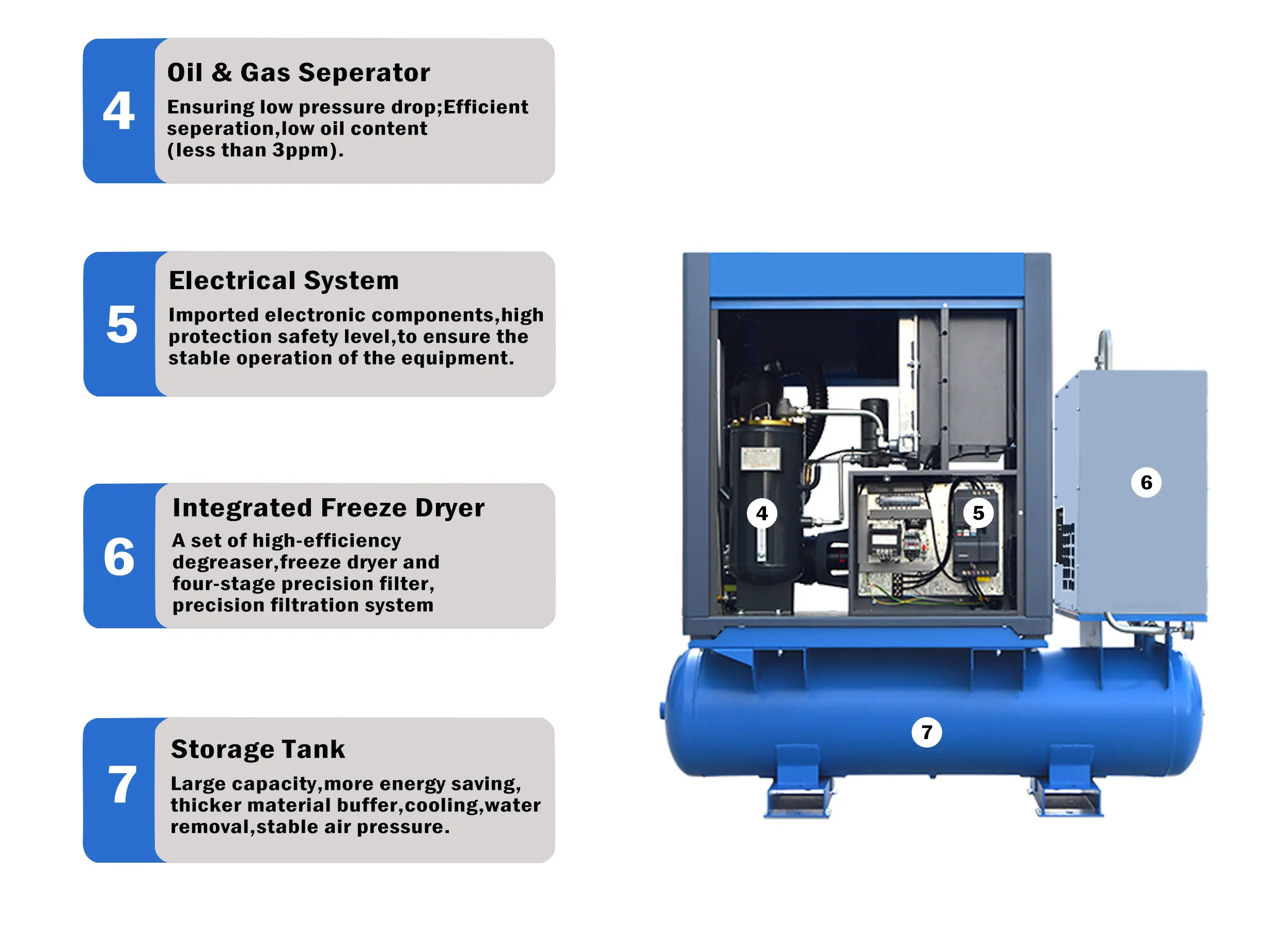

core components: PLC,Pressure Vessel,Gear,Motor,Pump,Air end(Screw)

dimension(l*w*h): 1500*1100*1550

gas type: Air

lubrication style: Lubricated

machinery test report: Provided

model number: WZS-15

mute: Yes

place of origin: Henan, China

power source: AC Power

type: Screw

video outgoing-inspection: Provided

voltage: 380V/50HZ(CUSTOMIZED)

warranty: 1 Year

Product Description

item	value
Warranty	1 Year
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	2 years
Core Components	Air end(Screw)
Gas Type	Air
Type	Screw
Configuration	Stationary
Power Source	AC POWER
Lubrication Style	Lubricated
Mute	Yes
Brand Name	WINDBELL
Model Number	WZS-15
Voltage	380V/50HZ(CUSTOMIZED)
Dimension(L*W*H)	1500*1100*1550
Weight	550kg
Air capacity	46-92Cfm
After-sales Service Provided	On-line Support
Air delivery	1.3~2.6m3/min
Working pressure	7~20Bar
Outlet size	G1-1/2"
Drive Mode	Direct driven(Coupling)
Cooling method	Air or water cooling
Application	General Industry
Certification	ISO CE
MOQ	1 PC
OEM	OEM Services Provided

Technical Specifications

Model No.	Working pressure (bar)	Capacity (cfm)	FAD (m3/min)	Motor Power (hp)	Motor Power (kw)	Tank Capacity (L)	Noise Level (Db)	Weight (Kg)	Dimension (mm) L*W*H
WZS2.2	8	11	0.32	3	2.2	110	54+/-3	180	1090*450*1110
		10	9.5							0.28
WZS3.0	8	16	0.44	4	3	110	55+/-3	190	1090*450*1110
		10	14							0.39
WZS4.0	8	20	0.58	5.5	4	110	57+/-3	200	1090*450*1110
		10	18							0.52
WZS5.5	8	27	0.76	7.5	5.5	110	59+/-3	215	1090*450*1110
		10	24							0.68
WZS7.5	7	42	1.2	10	7.5	200	63+/-3	450	1688*560*1428
		8	39							1.1
		10	35							1.0
		12	28							0.8
WZS11	7	64	1.8	15	11	200	64+/-3	500	1688*560*1428
		8	57							1.6
		10	53							1.5
		12	46							1.3
		13	42							1.2
WZS15	7	92	2.6	20	15	200	64+/-3	550	1688*560*1428
		8	85							2.4
		10	74							2.1
		12	64							1.8
		16	46							1.3
WZS22	7	130	3.7	30	22	300	65+/-3	950	2100*820*1700
		8	124							3.5
		10	110							3.1
		12	95							2.7
		16	85							2.4

Certificates

Company Profile

Windbell Co. Ltd. was established in 2006. It is a high-tech company mainly producing air compressors. Located in Zhengzhou National High and New Technology Industries Development Zone, the company has more than 100 employees equipped with 50 advanced testing machines working in the plant area of 20000 square meter. A high profile R&D team with experience in developing products with GHH and Rotor, has more than 20 patents granted. The company can produce more than 4000 air compressors every year. We believe that without an advanced quality management system you cannot make high quality products. With ISO9001 and ISO14001 certifications, the company aims to be a pioneer in offering consumers efficient, energy-saving, and environment-friendly solutions in the application of air compressor. Based on its R&D output, the company has successfully applied its solutions to the field of mining, tunneling, outdoor construction and its technology also facilitates the production of medical oxygen generators and textile equipment. The products are sold to Southeast Asia, Central Asia, Middle East, Africa, and America.

FAQ

Q1: Are you a manufacturer or trading company?
A: We are professional manufacturer with big modern factory in Zhengzhou,China. Both OEM & ODM service can be accepted.

Q2: What's your delivery time?
A: Generally 15 to 20 days, if urgently order, pls contact our sales in advance.

Q3: How long is your air compressor warranty?
A: One year for the whole machine and two years for screw air end, except spare parts.

Q4: How long could your air compressor be used?
A: Generally, more than 10 years.

Q5: What's payment term?
A: T/T, L/C, Western Union, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.

Q6: How about your customer service?
A: 24 hours on-line service available. 48 hours problem solved promise.

Q7: How about your after-sales service?
A: 1. Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
