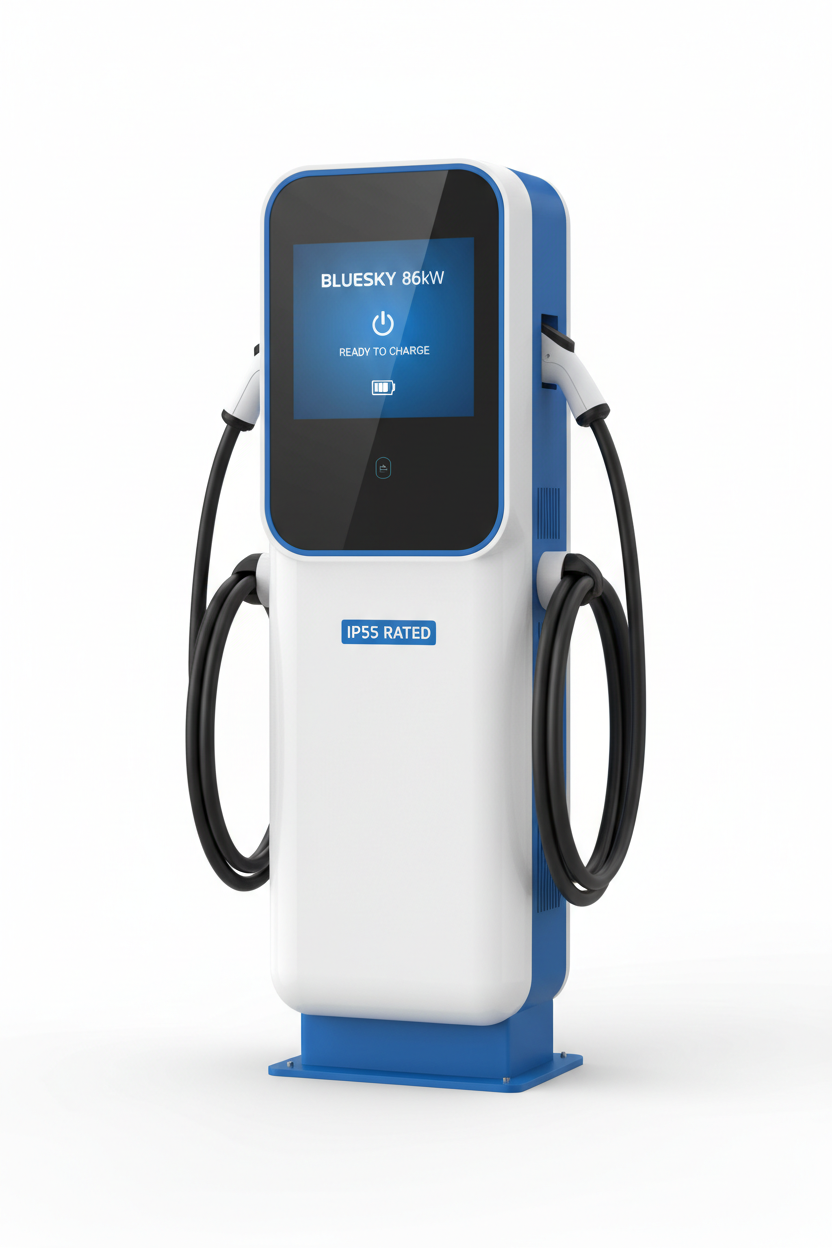

BLUESKY 86kW Commercial AC EV Fast Charging Station – Model CDZ-B
Upgrade your commercial EV charging infrastructure with the high-performance BLUESKY 86kW Commercial AC EV Fast Charging Station. Engineered for durability and high-throughput public or commercial use, this floor-mounted dual-gun charger provides safe, fast, and efficient power output to electric vehicles.
Equipped with smart connectivity (OCPP 1.6J), an intuitive 4.3-inch touch screen, and comprehensive safety protections, this station is ideal for public parking lots, commercial buildings, fleet depots, and solar-integrated charging setups.
Key Features
- Dual-Gun Fast Charging: Delivers up to 86kW total output (2 × 43kW) to charge two electric vehicles simultaneously.
- Smart Protocol Support: Built-in OCPP 1.6J compatibility with 4G / WiFi / LAN / Bluetooth connections for remote management and billing integration.
- User Authentication: Supports RFID card, Mobile APP, and POS payment integration.
- All-Weather Durability: IP55 weatherproof rating in a vandal-proof metal enclosure built to handle tough outdoor environments.
- Comprehensive Safety: Integrated protection against over-voltage, under-voltage, short circuits, ground faults, over-temperature, and surge.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | BLUESKY |
| Model | CDZ-B |
| Total Output Power | 86kW (2 × 43kW) |
| Interface Standard | CCS / GBT / Type 2 |
| Input Voltage | AC 380V (3P + N + PE) |
| Output Current | 32A per gun |
| Display | 4.3-inch Touch Screen |
| Ingress Protection | IP55 |
| Dimensions | 500 mm × 300 mm × 1500 mm |
| Weight | 65 kg (Net) |
Shipping Options to Kenya
| Shipping Option | Unit Rate | Est. Shipping & Handling Cost | Transit Time |
|---|---|---|---|
| Sea Freight (LCL) (Recommended) | ~KES 65,000 / CBM | ~KES 14,625 | 30 – 35 Days |
| Air Freight | ~KES 1,700 / kg (Volumetric/Gross) | ~KES 110,500 | 7 – 14 Days |
Shipping costs are estimates based on product dimensions (0.225 CBM) and gross weight (65 kg). Final charges may vary based on freight consolidation and customs clearance.
