SPECIFICATIONS

Application: Mining Industry

Color: Yellow

Cooling Method: Air Cooled

Cooling method: Air Cooling

MOQ: 1 Set

Motor power: 132 KW

Pressure: 25bar

Product name: Screw Compressor

Weight (kg): 3428

brand name: Atlas

configuration: Portable

core components: Engine

dimension(l*w*h): 4140X1940X2156mm

gas type: Nitrogen

lubrication style: Lubricated

machinery test report: Provided

model number: Airdrill

mute: No

place of origin: Liaoning, China

power source: Diesel

type: Screw

video outgoing-inspection: Provided

voltage: 220 V

warranty: 1 Year

Products Description

Air Compressor.

This series of air compressors is equipped with a screw rotor developed by Atlas Copco, which has quality assurance; a unique profile design, solid and reliable, ensuring high efficiency and low consumption. The whole system is equipped with Cummins three-emission engine with strong power. The leading high-pressure common rail technology can effectively reduce fuel consumption and reduce emissions

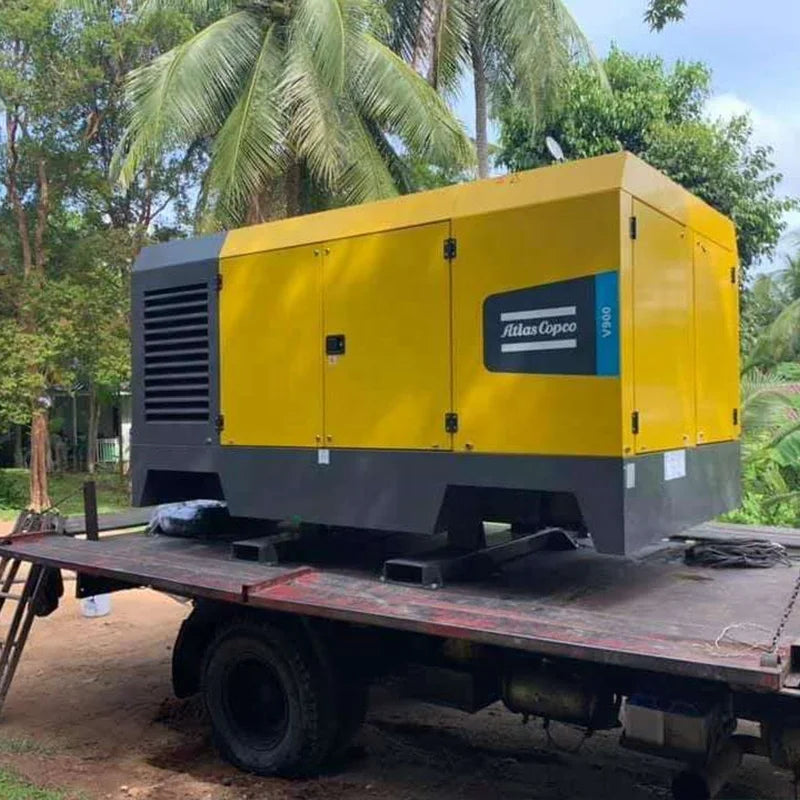

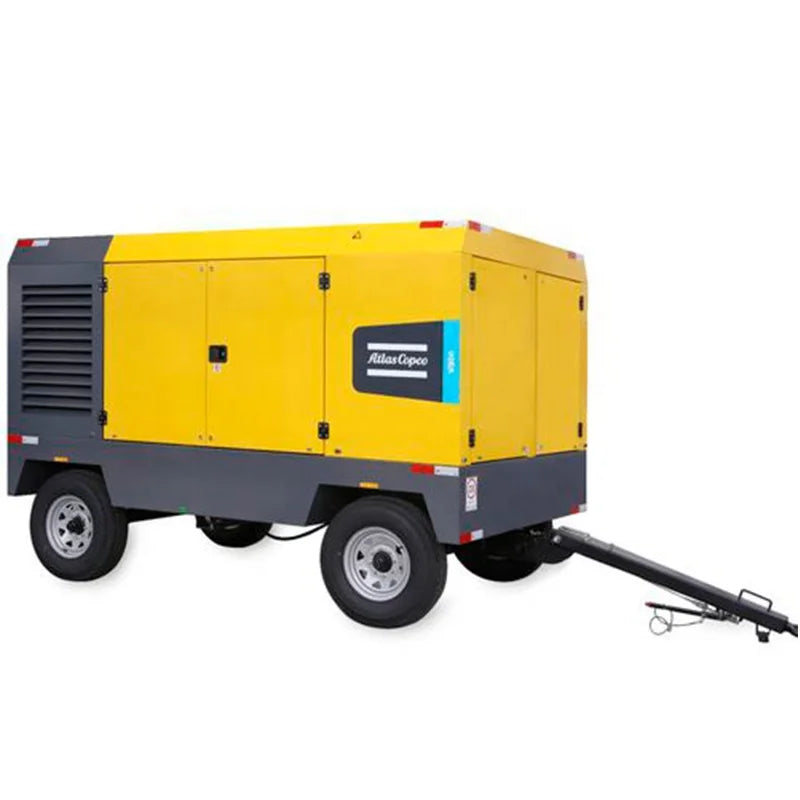

Atlas Copco V900 air compressor is equipped with dynamic air volume adjustment function. During the drilling phase, the combination of air compressor exhaust pressure and gas volume can be automatically adjusted according to the depth of the drilling, thereby speeding up the drilling speed and increasing the overall drilling speed by 10%. Efficiency goes up, but fuel consumption is 5% lower than traditional air compressors

Advantage

Pressure adjustment function: allows users to directly adjust the maximum working pressure of the air compressor on the controller according to their own needs, to achieve the application of a machine covering multiple machines in the past

The compressor is equipped with 1/2 and 2 inch output ports as standard

Equipped with safety filter. Global parts supply

The battery and high temperature parts of the machine are protected.

Product Paramenters

Working Pressure	20/25bar
Air Discharge Volume	25.4/22.8 m3/min
Compressor oil	89 L
1Size of Discharge Valve	1*2", 1*3/4"
Engine brand	Cummins(QSL8.9-C360-30)
Number of cylinders	6
Full-load Speed	1900/1700 prm
Rated Output Power	264KW
Engine oil	21 L
Coolant Capacity	58 L
Fuel Tank Capacity	420 L
Standard for Emission	China III
Dimensions:undercarriage
Length	4100
Width	2100
Height	2500
Weight	4585
