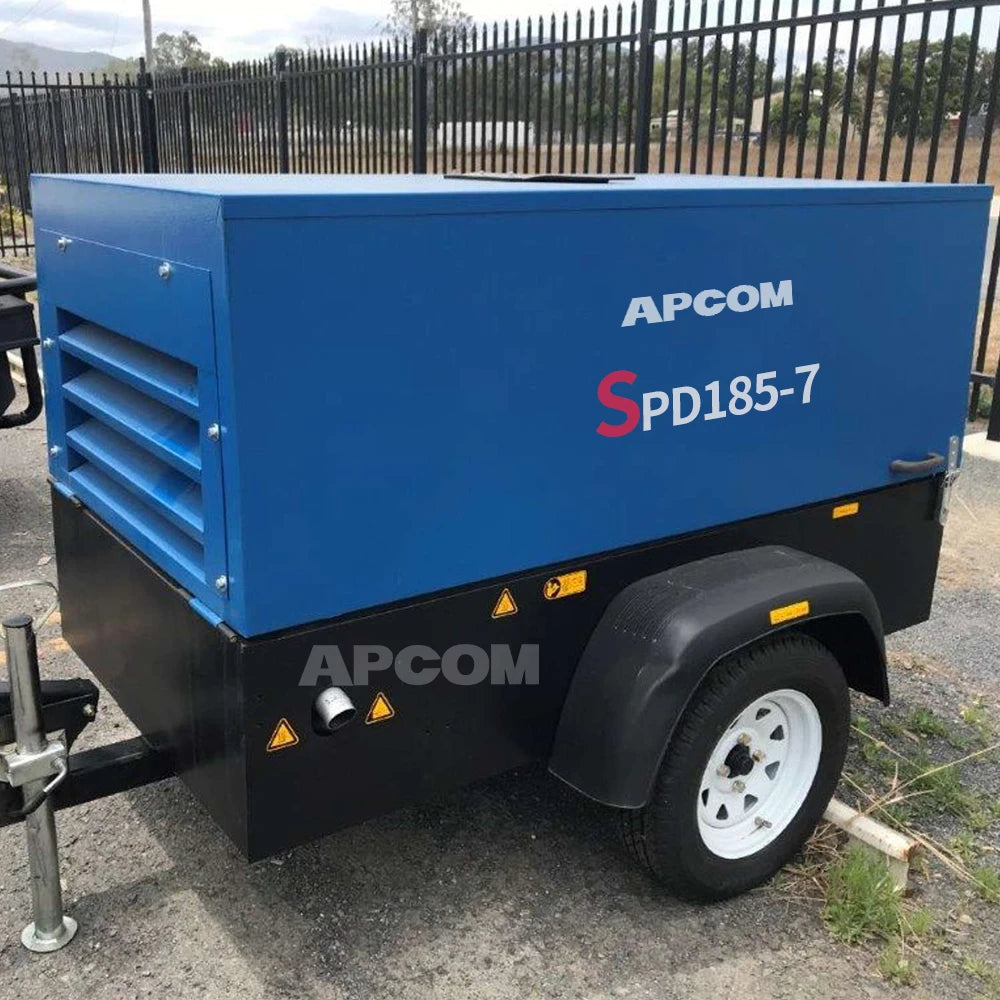

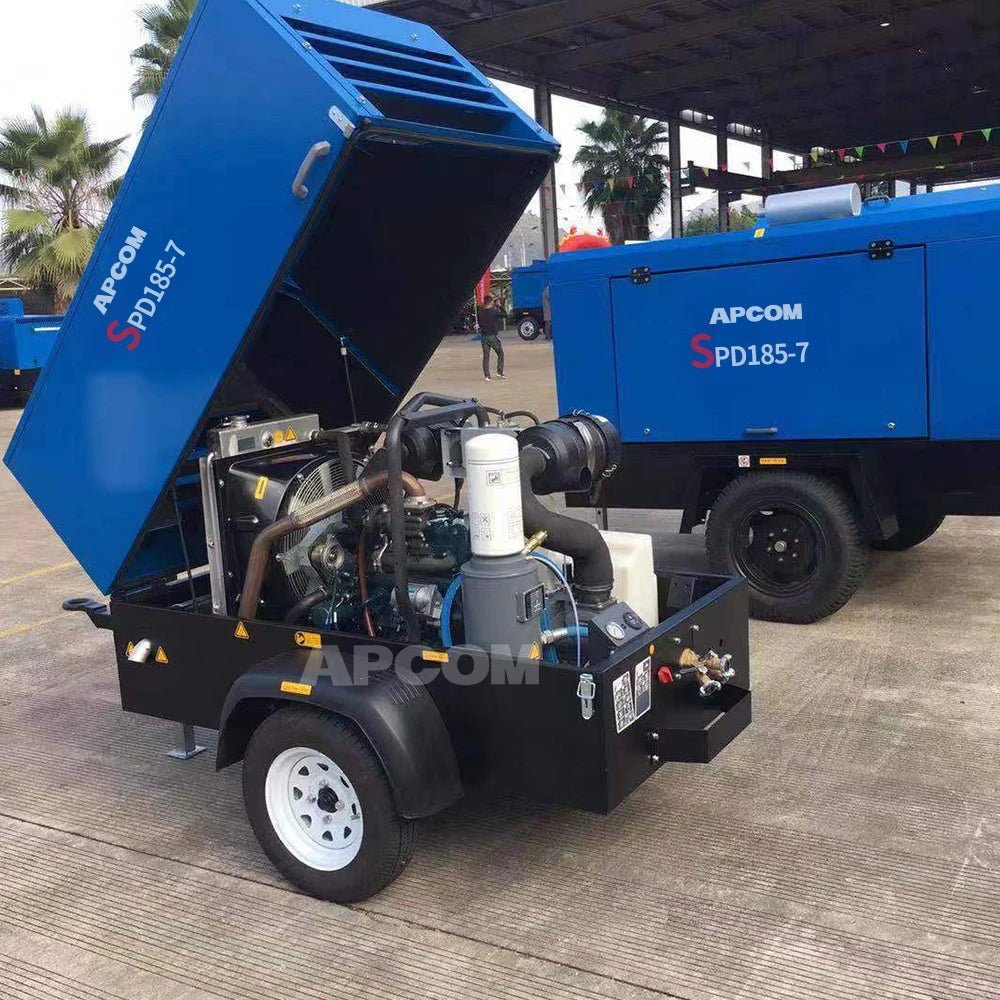

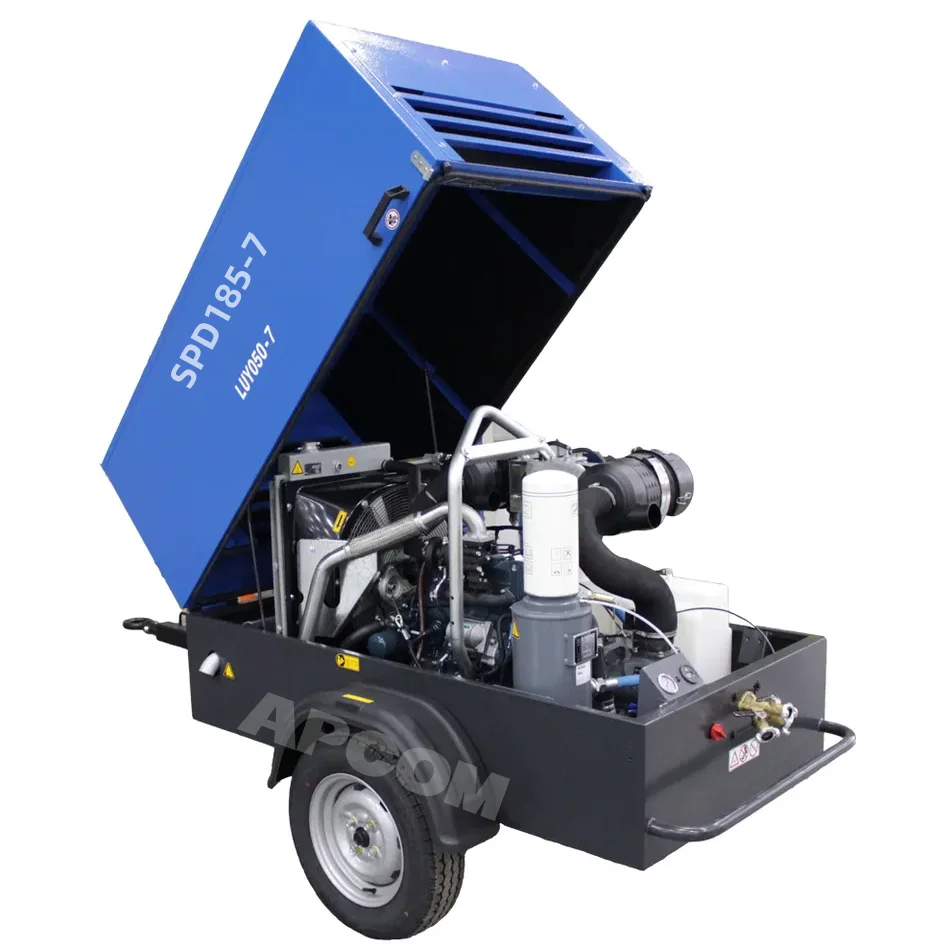

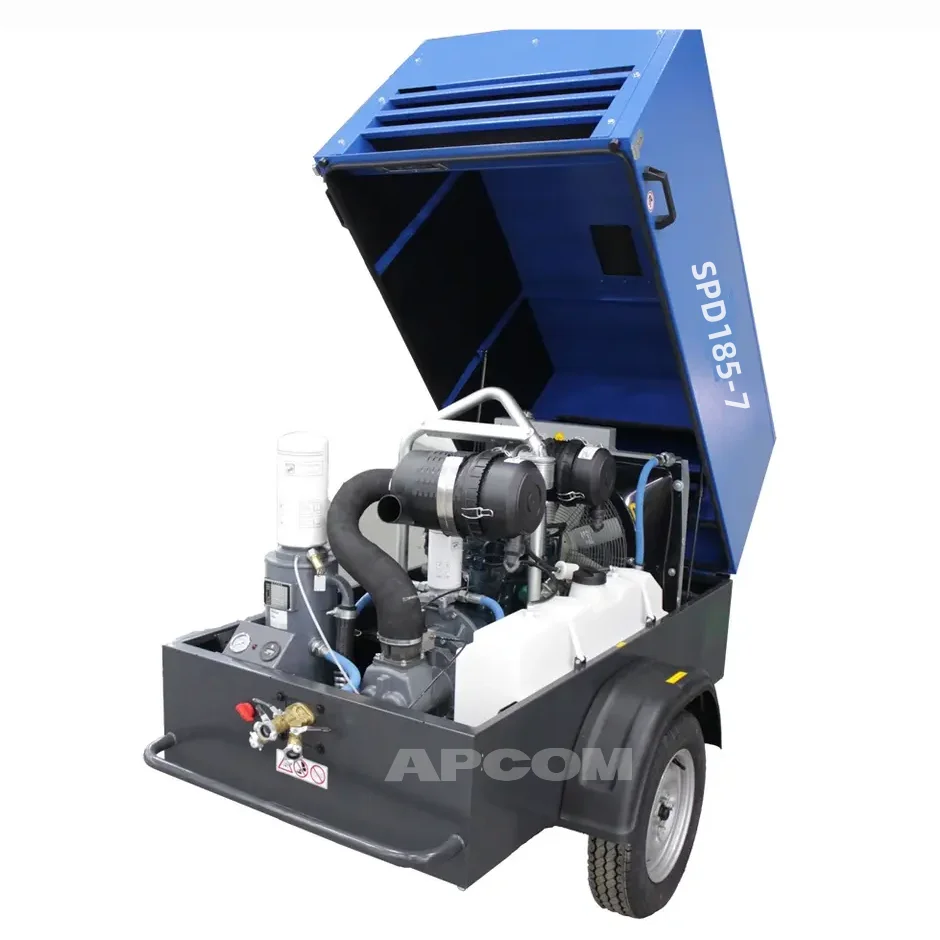

APCOM 190 200 350 185 Cfm diesel Screw air Compressor diesel Engine 175cfm 185cfm 190cfm 200cfm 210cfm 350cfm for Jack Hammer

KSh194,175.50 KES

~~KSh223,301.50 KES~~ KSh194,175.50 KES

Sale Sold out

Shipping calculated at checkout.

SPECIFICATIONS

Compressor warranty: 2 years

Cooling Method: Air Cooled

Diesel engine: Cummins

Featured Product: Electronic touch screen

New design: Diesel Powered

New features: Liquid crystal display

New manufacturing: Heavy Duty

New process: Energy conservation

New products: Low noise

New technology: High pressure

Product Trends: Ecommerce goods

Weight (kg): 1300

air capacity: 200-1300 CFM

brand name: apcom

configuration: Portable

core components: PLC,Pressure Vessel,Engine,Gear,Motor,Pump,Bearing,Gearbox,compressor Air-end,Cummins diesel engine

dimension(l*w*h): 2700*1600*1700mm

gas type: Air

lubrication style: Lubricated

machinery test report: Provided

model number: CS212-8,CS353-10,CS500-12,CS500-14,CS530-15Z,CS565-16,CS636-17,CS777-24,CS1000-25,CS1300-30,MS330-8,MS300-10,MS460-8,MS450-10,MS400-13,MS500-13,MS500-16,MS700-18,MS800-20

Model	SD40SCG-7	SD40SCY-7	SD40CKY-8
Engine(standard)	Kubota Duetz Cummins 36.8kw with EPA			Chinese Engine 41kw
Diesel tank volume	65L	65L	50L
Air End	Single Stage Compression
Rated F.A.D	4.5 m³/min	5~6 m³/min	5~6 m³/min
Rated Pressure	7~10 bar	7 bar	8 bar
Weight	750 kg	860 kg	730 kg
Type	SKID	2 wheel	4 wheel
Dimensions(LxWxH)	1800x1040x1300mm	2400x1330x1550mm	1670x990x1550mm

Model (CLICK ON)	Rated F.A.D	Rated Pressure	China III Engine	Diesel tank	Weight kg	Dimensions (LxWxH) mm
SD 40CKY-8	5.0m³/min	8 bar	Xichai/36.8kw	50L	730	1,670×990×1,550
SD 40SCY-7	4.5m³/min	7 bar	Xichai/36.8kw	65L	860	2,400×1,330×1,550
SD 40SCG-7	4.5m³/min	7 bar	Xichai/36.8kw	65L	750	1,800×1,040×1,300
SD 60SCY-7	9.0m³/min	7 bar	Xichai/59kw	85L	1,280	2,700×1,600×1,700
SD 110SCY-10	12.5m³/min	10 bar	Xichai/118kw	135L	2,350	3,000×1,610×2,350
SD 141SCY-15	15.0m³/min	15 bar	Xichai/140kw	230L	2,500	3,250×1,610×2,470
SD 141SCY-15B	15.0m³/min	15 bar	Cummins/140kw	230L	2,500	3,250×1,610×2,470
SD 110SCYT-18	12.0m³/min	18 bar	Yuchai/118kw	230L	2,350	3,800×2,100×2,300
SD 145SCYT-12-18	17-15m3/min	12/18 bar	Yuchai/140kw	230L	2,900	4,350×2,200×2,370
SD 162SCYT-18	17.0m³/min	18 bar	Yuchai/162kw	230L	3,250	3,345×1,750×2,460
SD 186SCYT-18	19.0m³/min	18 bar	Yuchai/191kw	345L	3,700	3,900×1,910×2,520
SD 198SCYT-20	20.0m³/min	20 bar	Yuchai/191kw	345L	3,750	3,900×1,910×2,520
SD 220SCYT-22	22.0m³/min	22 bar	Yuchai/221kw	345L	3,900	3,900×1,910×2,560
SD 298SCYT-24	29.0m³/min	24 bar	Yuchai/295kw	485L	4,800	4,180×2,080×2,995
SD ZCY550-15B	15.0m³/min	15 bar	Cummins/132kw	230L	2,500	3,250×1,610×2,470
SD ZCY700-18	20.0m³/min	18 bar	Cummins/194kw	345L	3,700	3,900×1,910×2,520
SD S60T	18.0m³/min	18 bar	Yuchai/162kw	230L	3,050	3,220×1,670×2,150
SD S85T	24.0m³/min	22 bar	Yuchai/228kw	350L	3,450	3,560×1,830×2,100
SD S95T	29.0m³/min	24 bar	Yuchai/295kw	415L	4,300	3,950×2,000×2,550
SD S100T	31.0m³/min	25 bar	Yuchai/309kw	415L	4,550	3,950×2,000×2,550
SD S125D	36.0m³/min	30 bar	Yuchai/410kw	600L	5,500	4,220×2,000×2,300
